■ Introduction:

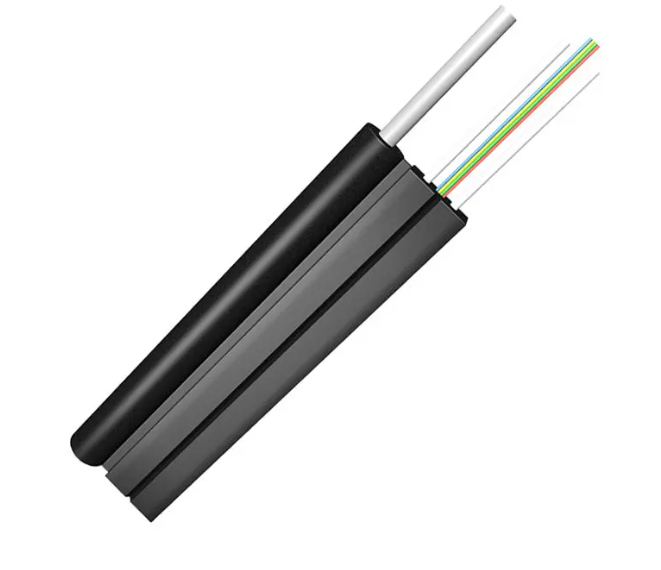

The typical GJYXFDCH / GJYXDCH Self-supporting drop optical cable
includes central optical Ribbon fibre(s) with 2 parallel FRP/Steel wires as the strength members placed on both sides,and an additional strength member(steel wire),Finally a LSZH sheath is extruded outside.
■ Features:
Simple structure, light weight, high tensile strength and metal-free
Novel groove design, easily strip and splice, simplified installation and maintenance
Low smoke, zero halogen and flame retardant sheath, environment-friendly, good safety
■ Product Series:
· GJXFH
· Strength Member: FRP
· Sheath Material: LSZH
· Dimensions: 2.0 x 3.0 mm
· GJXH
· Strength Member: Steel Wire
· Sheath Material: LSZH
· Dimensions: 2.0 x 3.0 mm
· GJXH-Small Diameter
· Strength Member: Steel Wire
· Sheath Material: LSZH
· Dimensions: 1.6 x 2.0 mm
· GJX(F)DH
· Type: Ribbon Fibers
· Sheath Material: LSZH
· Dimensions: 2.0 x 4.0 mm
· GJYX(F)CH
· Strength Member: Self-Supporting Wires
· Sheath Material: LSZH
· Dimensions: 2.0 x 5.2 mm
· GJYX(F)CH-Small
· Strength Member: Self-Supporting Wires
· Sheath Material: LSZH
· Dimensions: 1.7 x 3.8 mm
· GJYXFDCH (GJYXDCH)
· Strength Member: Self-Supporting Wires + Ribbon Fibers
· Sheath Material: LSZH
· Dimensions: 1.7 x 3.8 mm
· GYFJU
· Strength Member: Aramid Yarn
· Sheath Material: LSZH
· Dimensions: Round Sheath
· GYGXY
· Strength Member: Central Tube Glass Yarns Armor
· Sheath Material: HDPE
· Dimensions: Round Sheath
· FDC
· Type: Flat Drop Cable
· Core: Central Tube
· Sheath Material: LSZH
· Dimensions: 3.0 x 6.0 mm
· ASU
· Strength Member: Self-Supporting FRP Strength
· Sheath Material: HDPE
· Dimensions: 7.0/8.0 mm
· GYXY-8S
· Type: Figure-8 Self-supporting
· Strength Member: Aramid Yarns + Tubes
· Sheath Material: HDPE
· Dimensions: 4.6 x 8.8 mm
· GYFXBY
· Type: Flat Drop Cable
· Core: Central Tube
· Sheath Material: LSZH
· Dimensions: 4.6 x 8.1 mm

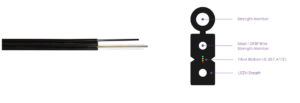

■ Cross Section:
■ Technical Characteristics:
· GJYXFDCH-4:
· Diameter: 2.0 mm x 6.2 mm
· Weight: 23.6 kg/km
· Tensile Strength: Long-term 300 N, Short-term 600 N
· Crush Resistance: Long-term 1000 N/100mm, Short-term 2200 N/100mm
· Bending Radius: Static 15 mm, Dynamic 30 mm
· GJYXDCH-4:
· Diameter: 2.0 mm x 6.2 mm
· Weight: 25.6 kg/km
· Tensile Strength: Long-term 300 N, Short-term 600 N
· Crush Resistance: Long-term 1000 N/100mm, Short-term 2200 N/100mm
· Bending Radius: Static 15 mm, Dynamic 30 mm
Note: This specification provides a normative reference. Adjustable outer diameter to suit your budget.Contact us ASAP.
■ Environmental Characteristics:
Transport/storage temperature: -20℃~70℃
■ Delivery Length:
Standard length:1000m;Other length availabe
