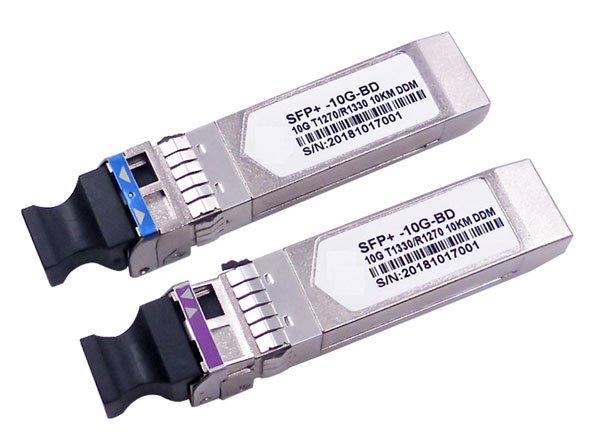

Op2Link SFP+10G is hot pluggable Small-Form-Factor SFP+ Bi-directional transceiver module, which is designed for 10Gb/s duplex optical data communications application. The SFP+ BiDi module features a highly reliable 1330nm DFB transmitter and 1270nm PIN photo-detector into LC Simplex optical connector, which provides 10km link distance over single-strand single mode fiber.
Product Highlights
10G Connectivity for Data Center
Featured with 1.5W low-power, high-density and high-speed, the SFP+ transceiver offers a popular way to help you quickly ramp up to 10G transmission.
Tested in Host Devices for Proven Interoperability
This SFP+ BiDi transceiver module also provides a unique enhanced digital diagnostic monitoring interface(DDM), which provides real-time monitoring of the transceiver temperature, laser bias current, optical power, received optical power and transceiver supply voltage.
The 10G SFP+ transceiver module complies with SFP+ MSA specifications (SFF-8431, SFF-8432, SFF-8472), 10 Gigabit Ethernet specifications (10GBASE-LR/LW per IEEE 802.3ae ), and 10G Fibre Channel 1200-SM-LL-L. The SFP+10G transceiver is also a Class 1 laser product complies with FDA/CDRH and IEC-60825 standards.
