DESCRIPTION

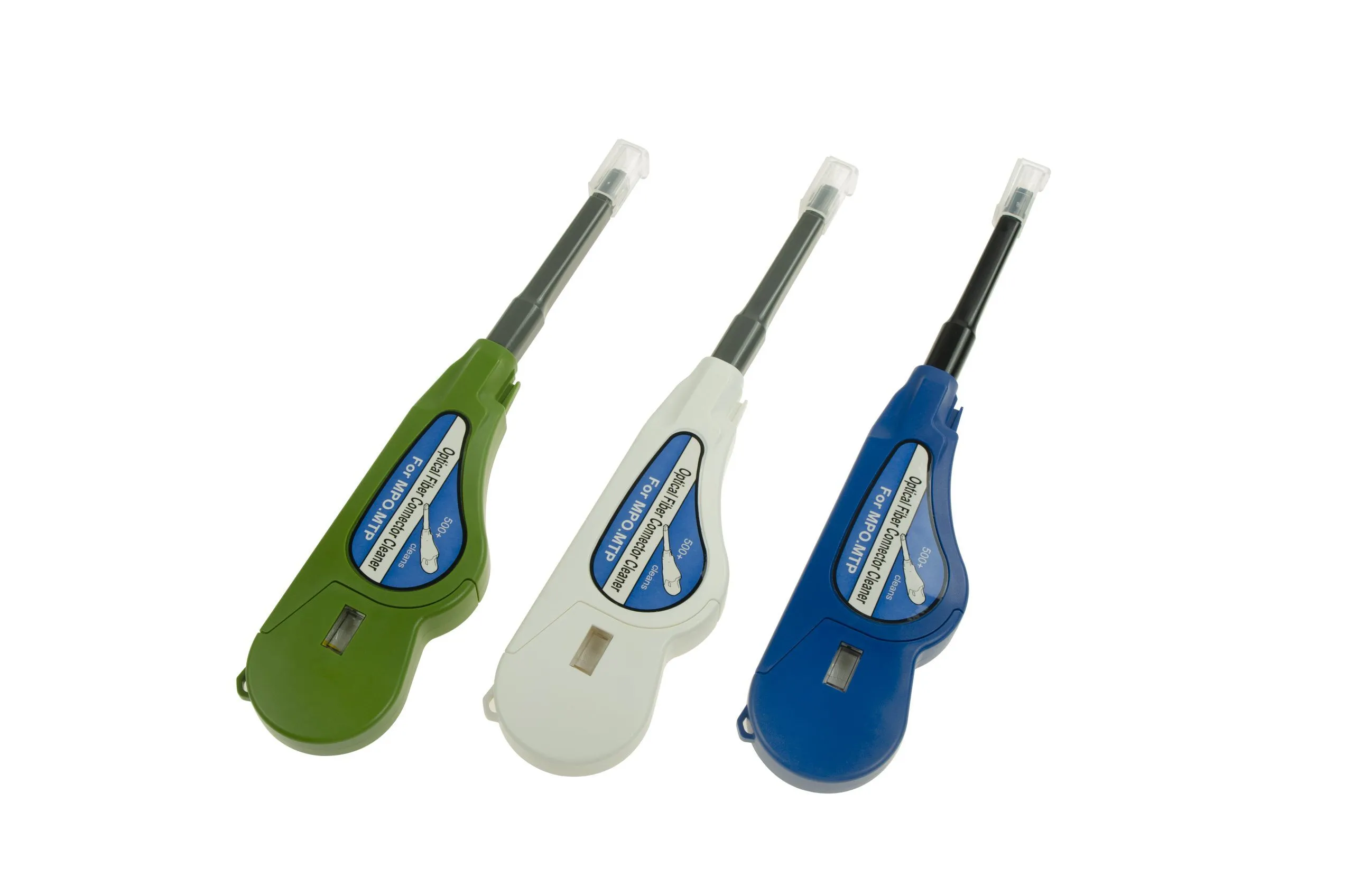

The CLE-MPO-T Fiber Optic Cleaner Pen is a high-precision tool designed for multi-fiber MPO/MTP connectors commonly used in data centers, telecom networks, and FTTH deployments. With its one-click push design, it provides quick, effective, and alcohol-free cleaning of endfaces, ensuring stable optical performance and reducing insertion loss caused by dust or contamination. Cleaning removes dust and oil from endfaces to help maintain stable connection performance.
Product Specifications
| Parameter | Value |
| Model | CLE-MPO-T |
| Connector Type | MPO/MTP (12F, 16F, 24F, male & female) |
| Cleaning Method | Dry cleaning (no alcohol required) |
| Cleaning Cycles | ≥ 500 per pen |
| Operation | One-click push operation |
| Application | Inside adapter and exposed connector endfaces |
| Dimensions | Portable handheld size |
| Usage Environment | Field, data center, lab, telecom ODF |
Selection Notes
Typically selected when MPO/MTP connectors are used in high-density environments where dust or oil contamination commonly impacts insertion loss and connection stability.
May not be appropriate for scenarios involving non-MPO connector formats or where improper cleaning access could lead to incomplete endface contact surface cleaning.
Feature Details
- High Compatibility: Designed for the most common MPO/MTP 12/16/24 fiber connectors, including pinned and unpinned versions.
- Efficient Cleaning: With one push, the microfiber tape removes dust, oil, and debris from fiber endfaces.
- No Consumables: Works without alcohol or chemicals, avoiding secondary contamination.
- Extended Service Life: Provides up to 500 cleanings, reducing maintenance cost per port.
- Convenient Use: Slim and lightweight, ideal for technicians in the field or data center.
Application Details
- Data Centers: High-density MPO/MTP patch panels and parallel optics interconnects.
- Telecom ODF: Quick cleaning of MPO-based trunk cables during installation and maintenance.
- FTTH/FTTx Networks: Ensures low-loss connections in multi-fiber access points.
- Optical Test Labs: Keeps reference cables and MPO connectors clean for accurate measurements.
- DWDM/CWDM Systems: Maintains clean interfaces to prevent performance degradation.
FAQ
Q1. Which connectors can the CLE-MPO-T clean?
It supports MPO/MTP 12F, 16F, and 24F connectors, both male (pinned) and female (unpinned).
Q2. How many times can one cleaner pen be used?
Each pen provides up to 500 cleaning operations.
Q3. Do I need alcohol or liquid for cleaning?
No. It uses a dry microfiber tape system, ensuring safe and efficient cleaning.

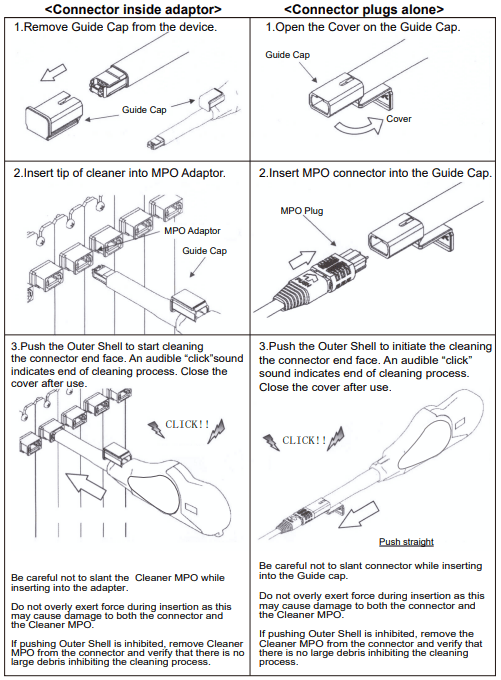

Q4. Can it clean connectors inside adapters?
Yes. The one-click design allows cleaning of connector endfaces without removing them.
Q5. Where is this cleaner typically used?
In data centers, telecom ODFs, FTTH networks, and optical test labs.
Q6. What issues does it prevent?
It removes dust, oil, and debris, preventing insertion loss and signal instability.
Q7. Is it suitable for field use?
Yes, it is compact, lightweight, and designed for technicians working in outdoor and indoor environments.
Q8. Can it be reused across multiple projects?
Yes, with 500 cleaning cycles, it is suitable for long-term maintenance tasks.
