DESCRIPTION

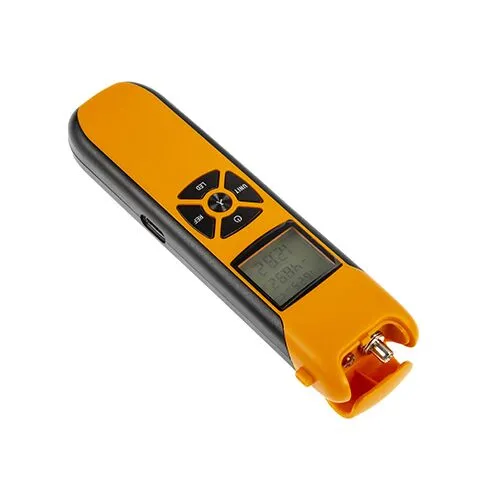

The G10 Mini Optical Power Meter is a professional fiber optic testing device designed for accurate power level measurements in fiber optic networks. With its high-precision InGaAs detector, it supports multiple wavelengths and ensures ±5% measurement accuracy, making it an essential tool for telecom, data center, and broadband network maintenance.
This compact and lightweight power meter features a large LCD display with backlight, enabling easy operation in low-light conditions. It also includes dual measurement modes, allowing users to switch between absolute power (dBm) and relative loss (dB) mode. With an auto-shutoff function and 200-hour battery life, the G10 ensures long-lasting, reliable performance.
Whether you’re installing new fiber connections or troubleshooting network issues, the G10 Mini Optical Power Meter is a must-have tool for fiber optic professionals.
Product Specifications
| Specification | Details |
| Wavelength Range | 800nm – 1700nm |
| Measurement Range | +10dBm ~ -60dBm |
| Accuracy | ±5% |
| Display Resolution | 0.01dB / 0.01dBm |
| Calibration Wavelengths | 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm |
| Detector Type | InGaAs |
| Battery Type | 2 x AAA batteries |
| Battery Life | Approx. 200 hours |
| Operating Temperature | -10℃ to +50℃ |
| Storage Temperature | -20℃ to +70℃ |
| Dimensions | 130mm x 70mm x 25mm |
| Weight | 180g (including batteries) |
Selection Notes
- Typically selected when technicians need a compact meter that supports absolute power (dBm) and relative loss (dB) and can switch among common calibrated wavelengths for routine installation checks and maintenance.
- May not be appropriate for teams that cannot keep a consistent routine for wavelength selection and relative-reference setting, or where connector-interface cleanliness cannot be maintained, since these are common causes of non-repeatable readings in field acceptance and troubleshooting.
Feature Details
- Accurate Optical Power Measurement– Measures optical power with ±5% accuracy to ensure reliable network performance.
- Dual Measurement Modes– Supports both absolute power measurement (dBm) and relative loss measurement (dB).
- Wide Wavelength Compatibility– Calibrated for 850nm, 1300nm, 1310nm, 1490nm, 1550nm, and 1625nm
- User-Friendly LCD Display– Features a large backlit LCD for clear readings, even in dark environments.
- Auto Power Off Function– Helps conserve battery life by shutting off automatically after 10 minutes of inactivity.
- Durable & Portable Design– Compact, lightweight, and rugged for field use and network maintenance applications.
Application Details
- Fiber Optic Network Installation– Verifies optical power levels to ensure proper signal transmission in newly deployed fiber networks.
- FTTH, FTTP, and FTTX Maintenance– Measures signal strength in fiber-to-the-home and fiber-to-the-premises applications.
- Enterprise & Data Center Networks– Ensures proper connectivity and troubleshooting in LAN, WAN, and data center environments.
- Telecom Network Testing– Detects power levels in long-distance telecom infrastructure, preventing signal degradation.
- Optical Device Calibration & Research– Used in R&D and fiber optic manufacturing to verify equipment accuracy.

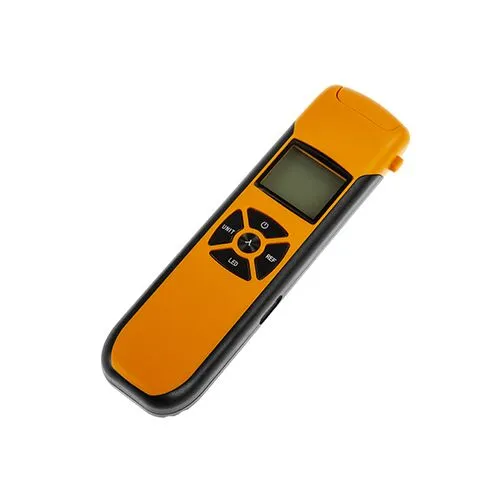

Button & Function Descriptions
- Power Button– Press and hold to turn the device ON/OFF.
- Wavelength Selection Button– Short press to cycle through calibrated wavelengths.
- Mode Switch Button– Switches between absolute (dBm) and relative (dB) power measurement modes.
- Backlight Button– Enables/disables LCD backlight for better visibility in dark environments.

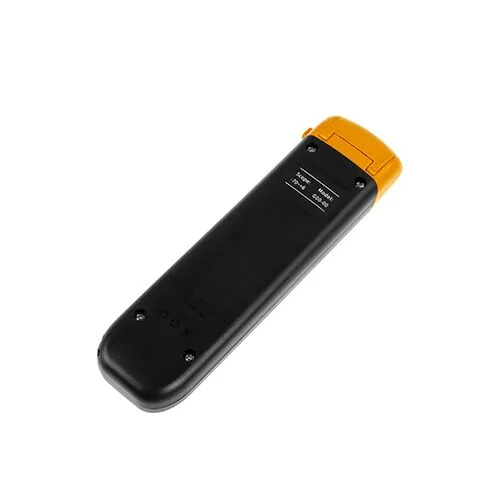

Battery Replacement
- Turn the device over and locate the battery compartment.
- Slide open the battery cover.
- Replace with two new AAA batteries, ensuring correct polarity.
- Close the battery cover securely.
Troubleshooting & Maintenance
| Issue | Possible Cause | Solution |
| Device does not turn on | Dead batteries | Replace with new batteries |
| Unstable readings | Dirty optical interface | Clean optical interface |
| Incorrect measurements | Wrong wavelength selected | Select correct wavelength |
| Low battery warning | Battery level too low | Replace batteries |
Standard Configuration
- 1x G10 Mini Optical Power Meter
- 1x Carrying Case
- 1x User Manual
- 2x AAA Batteries
- 1x Calibration Certificate
Warranty & Safety Information
- Warranty Period– 12 months from the date of purchase.
- Coverage– Covers defects in materials and workmanship.
- Exclusions– Does not cover damage due to misuse, mishandling, or unauthorized repairs.
Safety Precautions
- Do not expose the device to water or moisture.
- Avoid strong magnetic fields.
- Handle the optical interface carefully to prevent contamination or damage.
- Do not look directly into the laser source to avoid eye damage.
FAQ
Q1. What is the G10 Mini Optical Power Meter used for?
It measures optical signal power levels in fiber networks to ensure proper transmission and connectivity.
Q2. Which wavelengths does the G10 support?
It is calibrated for 850nm, 1300nm, 1310nm, 1490nm, 1550nm, and 1625nm.
Q3. Can this device measure both absolute and relative power?
Yes. It supports absolute power measurement (dBm) and relative power loss measurement (dB).
Q4. How long does the battery last?
With 2 AAA batteries, the device operates for up to 200 hours.
Q5. Is it suitable for outdoor fieldwork?
Yes, it is compact, lightweight, and rugged, making it ideal for field engineers and technicians.
Q6. How can I ensure accurate results?
Always select the correct wavelength and keep the optical interface clean to avoid unstable readings.
Q7. Does it come with accessories?
Yes. It includes a carrying case, batteries, a user manual, and a calibration certificate.
