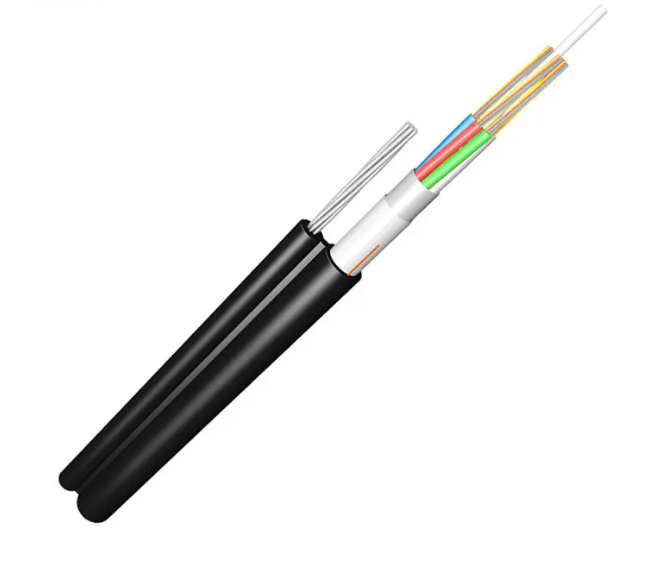

■ Application:
High tensile strength
Self-supporting aerial installation
Semi-dry core design, easy for installation and splice
■ Characteristics:
G.652.D
- Attenuation:
- @1310nm: ≤0.36 dB/km
- @1550nm: ≤0.22 dB/km
- Bandwidth: Not applicable
- Polarization Mode Dispersion (PMD):
- Individual fiber: ≤0.20 ps/√km
- Design link value (M=20, Q=0.01%): ≤0.1 ps/√km
G.655
- Attenuation:
- @1310nm: ≤0.40 dB/km
- @1550nm: ≤0.23 dB/km
- Bandwidth: Not applicable
- Polarization Mode Dispersion (PMD):
- Individual fiber: ≤0.20 ps/√km
- Design link value (M=20, Q=0.01%): ≤0.1 ps/√km
50/125 µm Multimode Fiber
- Attenuation:
- @850nm: ≤3.0 dB/km
- @1300nm: ≤1.0 dB/km
- Bandwidth:
- @850nm: ≥500 MHz·km
- @1300nm: ≥1000 MHz·km
62.5/125 µm Multimode Fiber
- Attenuation:
- @850nm: ≤3.0 dB/km
- @1300nm: ≤1.0 dB/km
- Bandwidth:
- @850nm: ≥200 MHz·km
- @1300nm: ≥600 MHz·km
■ Technical Data:
· Fiber Count Options: 24, 48, 72, 96, 144, 288
Loose Tube:
· No. of Tubes × Fibers per Tube:
o 24 fibers: 4 × 6
o 48 fibers: 4 × 12
o 72 fibers: 6 × 12
o 96 fibers: 8 × 12
o 144 fibers: 12 × 12
o 288 fibers: 24 × 12
· Outer Diameter (mm):
o 24 fibers: 1.9 mm
o All others: 2.4 mm
Central Strength Member (CSM):
· Material: FRP (Fiber Reinforced Plastic)
· Diameter (mm):
o 24, 48 fibers: 2.0 mm
o 72, 96, 144, 288 fibers: 2.6 mm
· Coated CSM Diameter (mm):
o For 96 fibers: 4.2 mm
o For 144 fibers: 7.4 mm
o For 288 fibers: 4.8 mm
Water Blocking:
· Material: Water Blocking Tape
Messenger Wire:
· Structure and Diameter (mm): 7 × 1.6
Sheath:
· Thickness (Nominal): 1.8 mm
Cable Specifications:
· Cable Diameter (mm) (Approx.):
o 24 fibers: 10.0/*21.0 mm
o 48 fibers: 10.8/*21.8 mm
o 72 fibers: 11.6/*22.6 mm
o 96 fibers: 13.2/*24.2 mm
o 144 fibers: 16.4/*27.4 mm
o 288 fibers: 19.2/*30.2 mm
· Cable Weight (kg/km) (Approx.):
o 24 fibers: 200 kg/km
o 48 fibers: 245 kg/km
o 72 fibers: 265 kg/km
o 96 fibers: 290 kg/km
o 144 fibers: 340 kg/km
o 288 fibers: 425 kg/km
Operating Conditions:
· Operating Temperature Range (℃): -40 to +70
Mechanical Performance:
· Tensile Strength (Short/Long Term): 8000 N / 2700 N
· Crush Resistance (Short/Long Term): 1000 N / 300 N
