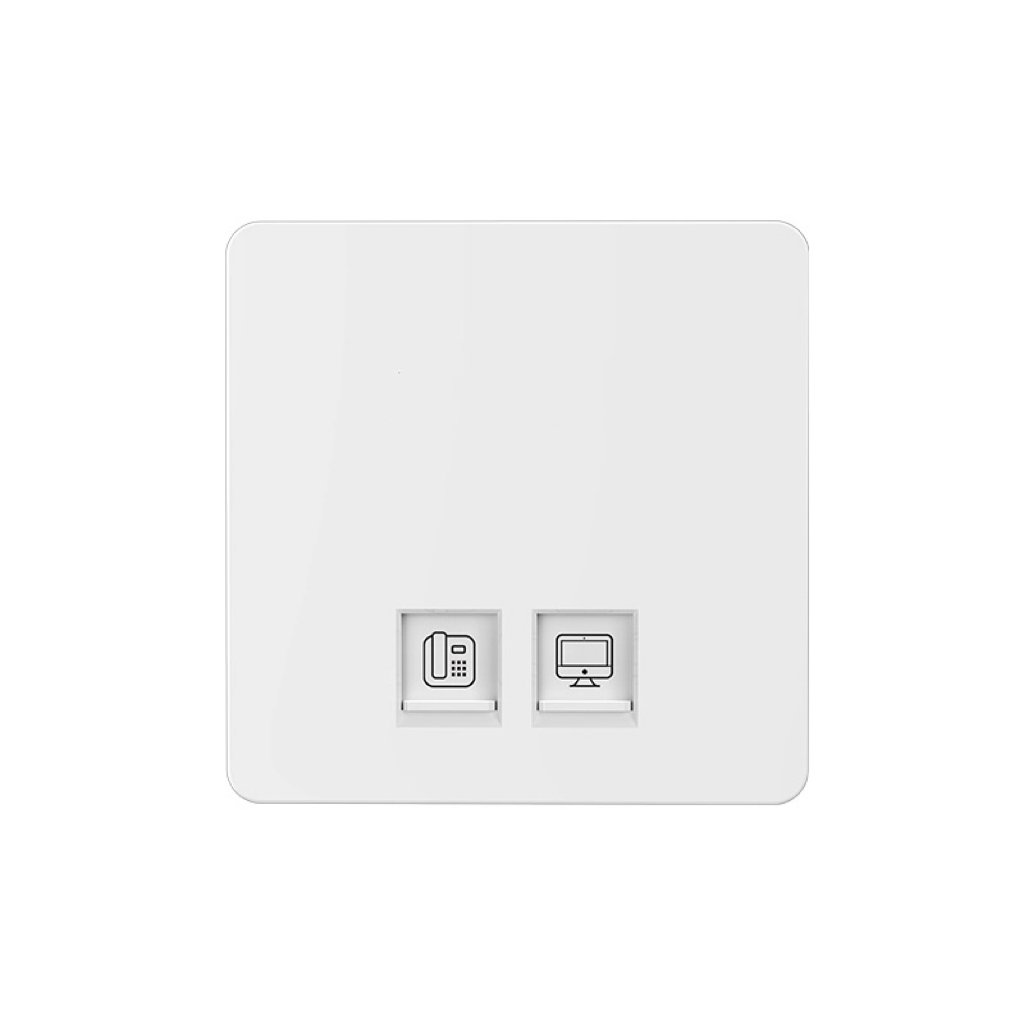

Port Configuration
1×10/100/1000M adaptive RJ45 Ethernet port
1 adaptive GPON/EPON uplink port
1×POTS voice port
Dimensions
ONU Device: 85mm (L) × 85mm (W) × 32mm (H)
Power Adapter: 64mm (L) × 48mm (W) × 20mm (H)
Operating & Storage Environment
Operating Condition: 0°C ~ 60°C; 10% ~ 85% RH, non-condensing
Storage Condition: -40°C ~ 80°C; 5% ~ 95% RH, non-condensing
Power Supply
AC Input: 220V, output 12V DC
DC Input: 48V, output 12V DC
Network & Functional Features
Adopts point-to-multipoint (P2MP) network topology to efficiently aggregate distributed Ethernet services from end users. Standard fast Ethernet RJ45 ports are provided on the user side.
Dynamic Bandwidth Allocation (DBA) enables fair bandwidth sharing among all subscribers, delivers stable Quality of Service (QoS) and guarantees service performance for multiple services on the same network.
Supports IGMP multicast to optimize bandwidth utilization.
Supports Multicast VLAN.
Uplink via GPON or EPON, compliant with IEEE 802.3ah, ITU-T G.984 and G.988 standards.
Supports remote management via OLT and local console management.
Provides line loopback detection for user-side Ethernet ports.
Compliant with IEEE 802.1Q VLAN protocol.
Supports broadcast storm suppression.
Supports PPPoE routing function.
Dual-stack support for IPv4 / IPv6
HSGQ-853
Dimensions
Device size: 85mm (Length) × 85mm (Width) × 32mm (Height)
Power adapter size: 64mm (Length) × 48mm (Width) × 20mm (Height)
Environmental Conditions
Operating environment: 0°C ~ 60°C; 10% ~ 85% relative humidity, non-condensing
Storage environment: -40°C ~ 80°C; 5% ~ 95% relative humidity, non-condensing
Power Supply
AC mode: 220V input to 12V DC output
DC mode: 48V input to 12V DC output
Performance & Functions
It adopts point-to-multipoint network topology to efficiently collect and aggregate scattered Ethernet services of users, and provides standard RJ45 fast Ethernet interfaces on the user side.
The dynamic bandwidth allocation mechanism allows all users to share bandwidth in a more reasonable manner, delivers reliable Quality of Service (QoS), and guarantees service quality for different services within the same network.
Supports IGMP multicast for efficient bandwidth utilization.
Supports multicast VLAN.
It uses GPON or EPON uplink, complying with IEEE 802.3ah, ITU-T G.984 and G.988 standards. It supports remote management via OLT as well as local console management, and features line loopback detection for user-side Ethernet ports.
Compliant with IEEE 802.1Q VLAN protocol.
Supports broadcast storm suppression.
Supports PPPoE routing function.
Supports IPv4/IPv6 dual stack
