DESCRIPTION

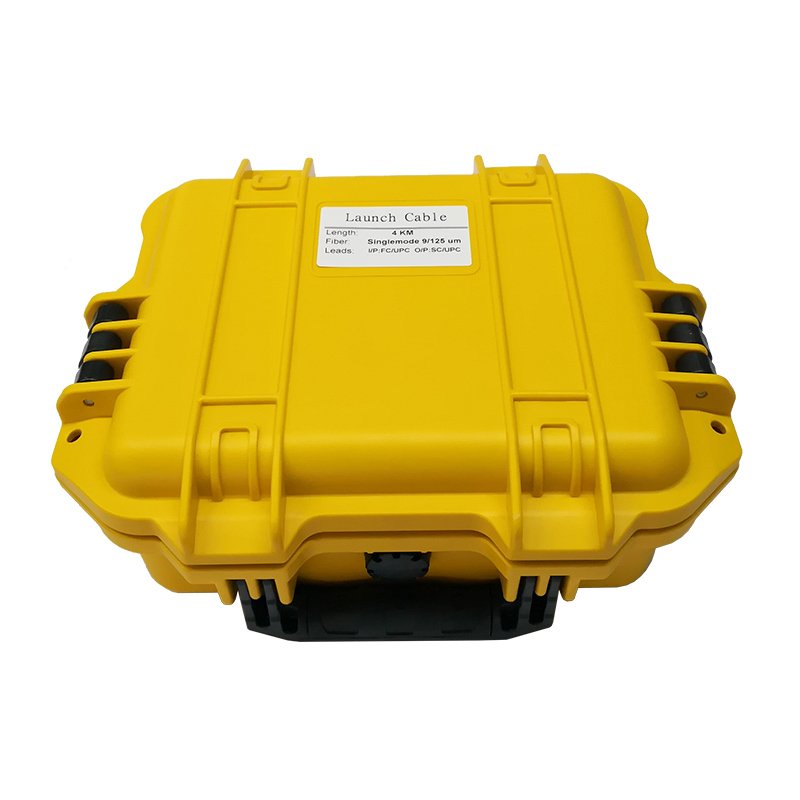

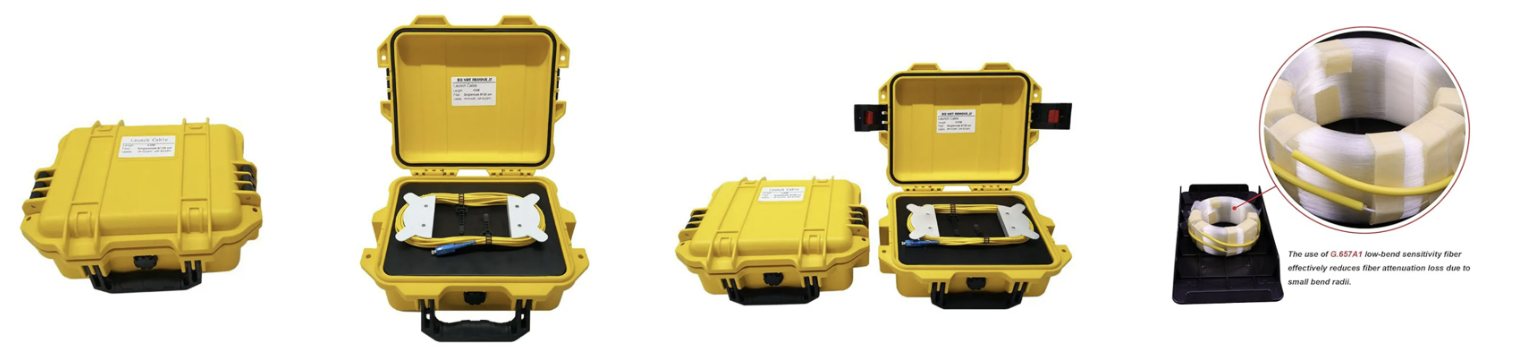

The HTO9O08 Fiber Optic OTDR Launch Cable Box minimizes measurement errors in OTDR testing, offering precision, durability, and reliability. Its rugged, weatherproof design makes it suitable for use in various field conditions, while its flexibility in configurations supports diverse fiber lengths and connector types.
Feature Details
- Versatile Configurations: Designed for both standard and customized OTDR applications, allowing compatibility with various setups.
- High-Capacity Housing: Accommodates up to 20,000 meters of fiber, meeting extensive testing requirements.
- Secure and Portable: Compact, lightweight design with a latch for a firm seal and easy operation.
- Weather Resistance: Water and dustproof, ensuring seamless use even in harsh conditions.
- Auto Purge Valve: Adjusts internal air pressure automatically during environmental changes.
Product Specifications
Mechanical & Environmental
| Attributes | Specifications |
| Dimensions (Small Case) | 23.8 cm × 14.1 cm × 6.7 cm |
| Dimensions (Large Case) | 30.4 cm × 24.8 cm × 12 cm |
| Material | SR Polypropylene |
| Color | Yellow |
| Weight | 0.75 kg / 3.5 kg (without fiber) |
| Storage Temperature | -40°C to +85°C |
| Operating Temperature | -40°C to +85°C |
| Humidity | 0% to 95%, non-condensing |
Fiber & Connector
| Attributes | Specifications |
| Fiber Types | G652D, G657A, OM1, OM2, OM3, OM4 |
| Fiber Length | 100 m to 20,000 m |
| Lead Length | 2 m (3 mm buffer) |
| Typical Loss | < 0.5 dB @ 1310 nm for 1,000 m |
| Connector Type | SC, LC, FC, ST |
| Polish | PC, UPC, APC |
| Return Loss* | PC ≥ 35 dB, UPC ≥ 50 dB, APC ≥ 60 dB |
| Repeatability (dB) | ≤ 0.2 (1,000 times) |
| Exchangeability (dB) | ≤ 0.2 |
Selection Notes
- Typically selected when OTDR work needs a repeatable reference/launch module to measure the first and last connector events more consistently, especially when teams want to standardize testing across different sites.
- May not be appropriate for organizations that cannot keep connector polish type (PC/UPC/APC), interface family, and launch length consistent across projects, since mixed configurations commonly reduce comparability and increase retesting or acceptance disputes.
Application Details
- Telecommunication Networks: For accurate OTDR testing in long-distance fiber optic installations.
- FTTH Projects: Ideal for insertion loss measurement in fiber-to-the-home setups.
- Field Testing and Troubleshooting: Rugged design ensures reliable performance even in outdoor and harsh conditions.
- Laboratory Calibration: Use in controlled environments for connector reflectance and loss measurements.
FAQ
Q1: What is the role of the HTO9O08 launch cable box?
It functions as a standard reference module during OTDR testing. This allows accurate evaluation of the first and last connector events.
Q2: What testing scenarios is it suitable for?
It is ideal for routine FTTH installation, maintenance, and acceptance testing. Suitable for most short- to medium-distance fiber links.
Q3: What fiber and connector types are supported?
Single-mode fiber is standard. Multimode fibers (OM1–OM4) are available depending on configuration. Connector options include SC, LC, FC, or ST.
Q4: What launch cable lengths are typically used?
Common lengths include 500 m and 1 km. Length selection depends on OTDR resolution and test standards.
Q5: Is this model portable for field work?
Yes, it is designed for easy transport and on-site testing by field technicians.
Q6: Typical applications?
Used in FTTH deployment, telecom maintenance, and routine OTDR measurement tasks.
