DESCRIPTION

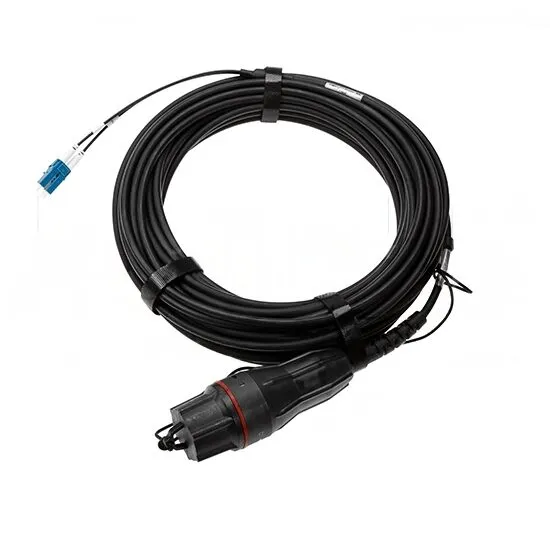

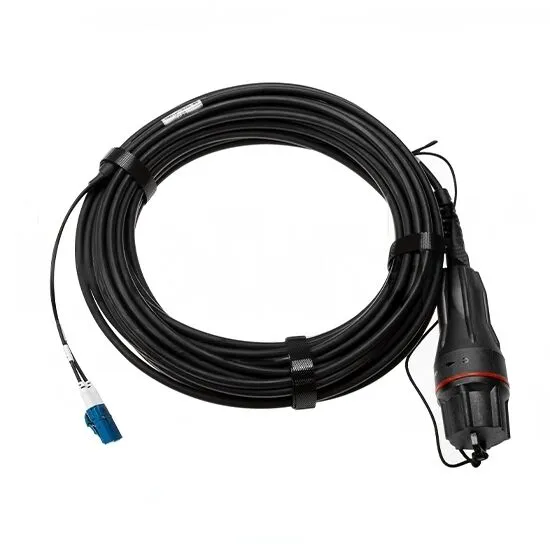

Waterproof LC Duplex to FULLAXS LC SM φ5.0mm LSZH Black Outdoor Fiber Optic Patch Cord
The IP67 LC Duplex to FULLAXS LC SM φ5.0mm LSZH Outdoor Fiber Optic Patch Cord is a durable, waterproof FTTA patch cord specifically designed for outdoor connections in remote radio heads (RRH), base stations, and industrial applications. This patch cord offers easy one-hand installation, a unique floating Z-axis design to prevent cable buckling, and an innovative bulkhead cutout that allows transceiver removal without exposing the device to weather. The IP67 rating ensures this cable’s reliability in challenging environments, while its compatibility with duplex LC interfaces enhances versatility across FTTA applications.
Each assembly is factory-tested for optical performance, mechanical reliability, and environmental sealing to ensure consistent outdoor operation. Learn how HOLIGHT verifies quality and reliability across fiber optic products:
Engineering Suitability & Selection Boundaries
When This Product Is the Right Choice
Deployments involving outdoor 4G/5G base stations, where fiber connections interface directly with remote radio heads (RRHs).
FTTA and wireless infrastructure scenarios requiring sealed bulkhead access to SFP transceivers without opening the RRH enclosure.
Installations where frequent transceiver replacement or maintenance is expected in outdoor or industrial environments.
Applications requiring waterproof and dustproof fiber connectivity exposed to weather, vibration, or corrosive conditions.
When This Product May NOT Be Suitable
Indoor network environments where standard LC duplex patch cords can be used without environmental sealing.
Deployments that do not utilize FULLAXS-compatible bulkhead interfaces on radio or outdoor equipment.
Scenarios where fiber links are fully internal and static, with no need for external transceiver access through enclosures.
Common Selection Mistakes to Avoid
Treating FULLAXS fiber assemblies as standard LC duplex patch cords, ignoring bulkhead and interface requirements.
Selecting waterproof FTTA cables without verifying compatibility with RRH and SFP access design.
Overlooking maintenance workflows, such as transceiver replacement procedures, during system-level planning.
- Innovative Bulkhead Access: Designed with a cutout allowing transceiver replacement without opening the RRH, improving service speed and device protection.
- Compact, Ergonomic Design: Allows easy, one-hand operation for fast and secure connections with positive feedback upon full mating.
- High-Quality Materials: Constructed from LSZH materials compliant with ROHS and REACH, suitable for sensitive applications like aerospace and defense.
- Expandable Connectivity: Designed to support potential expansions for RJ45 and power connections.
- Field-Installable Options: Available in a field-installable version for flexible on-site setup.
| Fiber Type | SM(G657A1/ G657A2) ; MM(OM1/OM2/OM3/OM4) |
|---|---|
| Fiber Count | Duplex (2F) |
| Cable Diameter | 5.0mm |
| Jacket Color | Black |
| Outer Jacket Material | LSZH |

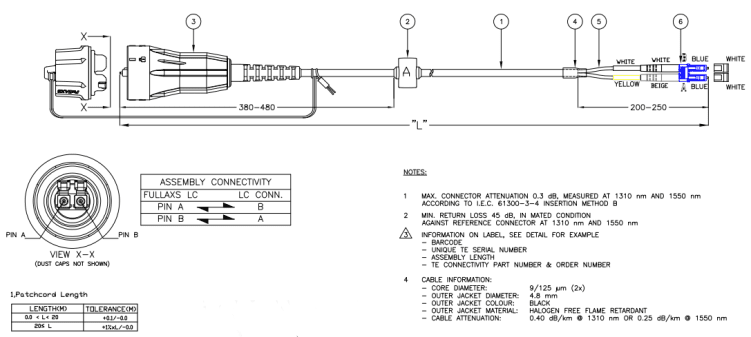

| Connector | A: FULLAXS(LC); B: LC Duplex |
| Insertion Loss | SM/UPC≤0.3db; MM/UPC≤0.3db |
| Return Loss | SM/APC≥60dB; SM/UPC≥55db; MM/UPC≥35db |
| Cable Length | 1~150m or Customized |
| Branch Length | Customized |

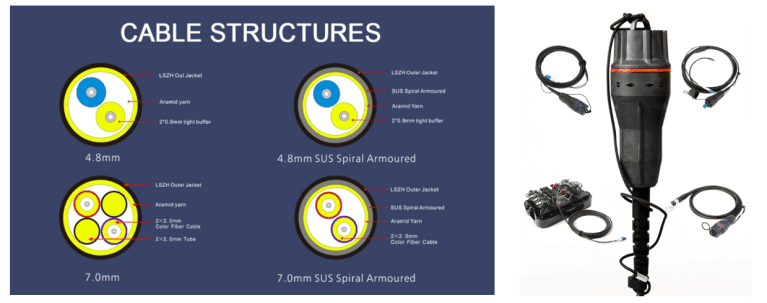

| Cable Type | Armored or Un-armored |
| Mechanical Life | 500 mating cycles |
| Working Temperature | -20°C~+70°C |
| Storage Temperature | -20°C~+70°C |
| Tensile Data | Tensile between the junction and fiber cable≥100N |
- Telecom and FTTA Deployments: Ensures reliable fiber connections for RRH in WiMAX, LTE, and general telecom base stations.
- Industrial Automation and Robotics: Reliable for high-performance connections in industrial automation and robotic applications.
- Outdoor and Extreme Environments: Built to withstand adverse weather, making it suitable for aerospace and defense industries.
FAQ
Q1: What is the function of the IP67 rating on this outdoor fiber optic cable?
The IP67 rating ensures the cable is dust-tight and can withstand temporary water immersion, making it reliable for harsh outdoor environments.
Q2: What is the difference between LC Duplex and FULLAXS LC connectors?
LC Duplex connectors are standard indoor/outdoor connectors for telecom and data networks, while FULLAXS LC connectors are ruggedized outdoor versions designed for direct connection to active equipment in FTTA and outdoor base stations.
Q3: Why is the cable jacket made of LSZH material?
The LSZH (Low Smoke Zero Halogen) jacket ensures low smoke emission and no halogen release during fire, enhancing safety while maintaining UV and weather resistance for outdoor use.
Q4: What is the typical optical performance of this single-mode outdoor cable?
The cable provides insertion loss ≤0.3 dB and return loss ≥50 dB (UPC) or ≥60 dB (APC), designed to meet common telecom performance expectations for FTTA patch cords.
Q5: What is the purpose of the 5.0 mm cable diameter design?
The φ5.0 mm structure provides robust strength, crush resistance, and durability while keeping the cable flexible enough for outdoor installation and routing.
Q6: Can this cable be customized in length and connector configuration?
Yes. Length, Polish Options: UPC or APC (configurable by project requirement), jacket marking, and packaging can all be customized according to project requirements.
Q7: Where are IP67 LC to FULLAXS LC cables typically used?
They are mainly deployed in FTTA (Fiber-to-the-Antenna), outdoor base stations, remote radio units (RRUs), and harsh-environment telecom networks.
Q8: How is the cable tested before shipment?
Each assembly undergoes 100% factory testing for insertion loss, return loss, waterproof sealing, and mechanical strength to ensure outdoor reliability.
Q9: Is FULLAXS interchangeable with other FTTA interfaces such as ODVA?
FULLAXS is a dedicated FTTA interface standard and is not directly interchangeable with ODVA or other outdoor connector systems. Interface compatibility must be verified at the equipment and bulkhead level before deployment.
