DESCRIPTION

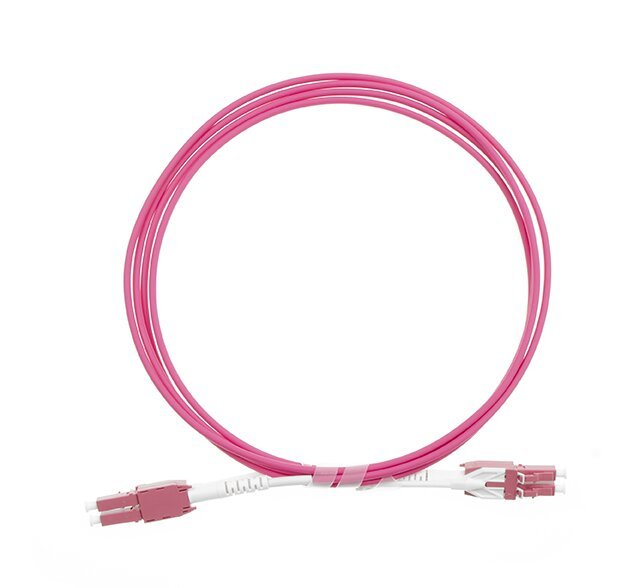

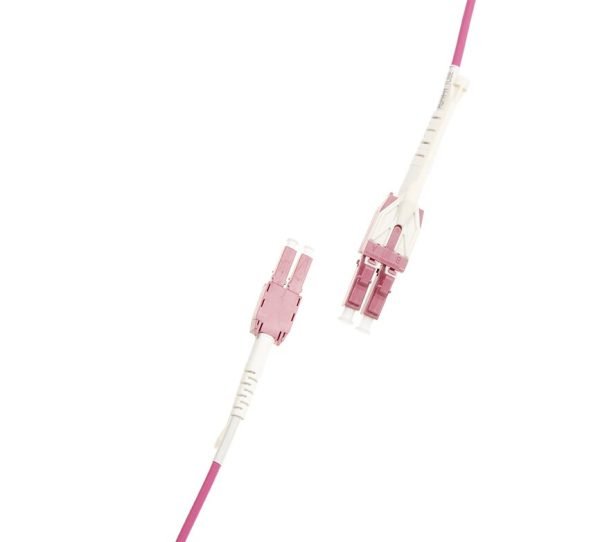

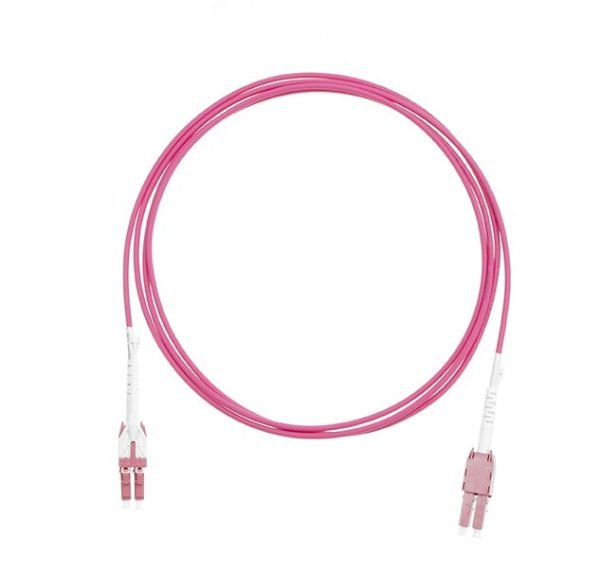

The Uniboot LC-LC Duplex Fiber Patch Cord with Pull Tab combines advanced features to meet the demands of modern high-density networks. Its pull tab design and polarity switchability provide unparalleled usability for installation and maintenance in complex setups. This patch cord offers reduced cabling space and improved airflow, making it a preferred choice for data centers and telecommunication networks.
- Pull-Tab Assisted Access in High-Density Panels:
- Enhanced ergonomics for quick adapter removal, reducing installation time.
- Polarity Switchability:
- Seamlessly switches between A-B and A-A polarities, ensuring versatility without additional tools. Polarity switching is mechanical and does not affect optical performance.
- Compact Design:
- Round duplex cable minimizes bulk while maintaining robust performance.
- Durability and Performance:
- Withstands temperatures from -40°C to +85°C and up to 500 plug/unplug cycles, ensuring long-term reliability.
- Optical Excellence:
- Supports Grade B (≤0.12 dB) and Grade C (≤0.3 dB) performance, with SM APC return loss up to ≥60 dB.
Product Specifications
| Connector Type | Pull Tab Uniboot LC to LC |
| Fiber Mode | Single Mode (SM) & Multimode (MM) |
| Polish Type | UPC/APC for SM, PC for MM |
| Insertion Loss | ≤0.3dB (Grade C), ≤0.12dB (Grade B) |
| Return Loss | UPC ≥50dB, APC ≥60dB, MM PC ≥35dB |
| Fiber Count | Duplex |
| Cable Diameter | 2.0mm, 3.0mm, 3.5mm |
| Jacket Material | PVC (OFNR), LSZH, Plenum (OFNP) |
| Pull-out Force | 100N |
| Operating Temperature | -40°C to +85°C |
| Durability | 500 Cycles |
- Data Center Cabling: Space-saving cable design improves airflow and visibility.
- High-Density Racks: Pull tab simplifies patch cord removal in dense environments.
- Enterprise Connectivity: Provides reliable and efficient network backbone solutions.
- Telecommunication Equipment: Meets stringent telecom-grade requirements for stable connections.
- Customization Options:
- Lengths, colors, fiber types, and jackets can be tailored to project needs.
- Available in yellow, blue, aqua, orange, violet, and magenta for easy identification.
- Standards Compliance:
- Compliant with RoHS and relevant IEC/TIA optical performance standards.
Q1: What is the advantage of the uniboot LC-LC duplex design?
The uni-boot design combines two fibers into a single jacket, can significantly reduce cable bulk compared to standard duplex patch cords (depending on cable OD and routing method). This improves airflow and cable management in high-density data centers.
Q2: How does the pull tab feature help during installation?
The integrated pull tab allows easy insertion and removal of the connector from high-density panels without needing additional tools, minimizing the risk of damaging adjacent connectors.
Q3: Is this patch cord available in both single-mode and multimode options?
Yes. It is available in OS2 single-mode for long-distance telecom networks, and OM3/OM4/OM5 multimode for short-distance, high-speed data center applications.
Q4: What jacket materials are available?
Options include LSZH for safety in indoor environments, PVC for general use, and OFNR/OFNP for riser or plenum applications requiring compliance with fire safety codes.
Q5: How are the patch cords tested before shipping?
Each patch cord undergoes 100% optical testing for insertion loss (≤0.3 dB typical) and return loss (≥50 dB UPC / ≥60 dB APC) to ensure high performance and reliability.
Q6: Can the patch cords be customized?
Yes. Length, jacket color, connector type (UPC/APC), labeling, and packaging can all be customized according to project requirements.
Q7: What are the typical application scenarios?
These cords are widely used in data centers, enterprise IT networks, FTTH, and telecom systems where high-density and efficient cable management are critical.
Q8: What is the standard delivery time?
Standard lengths are usually available from stock for fast shipment. Customized orders typically take 3–7 working days depending on volume and specifications.
