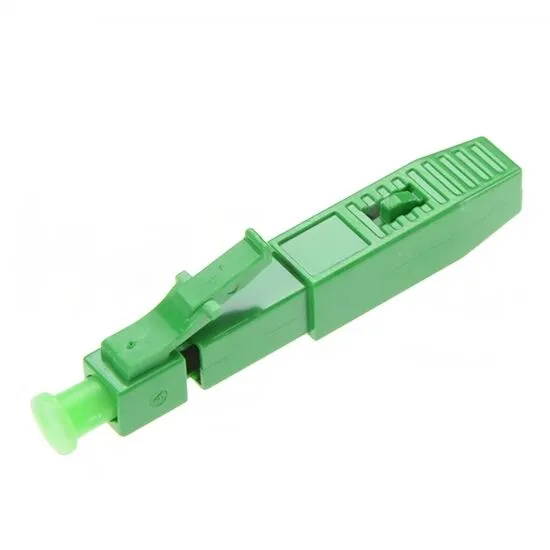

LC UPC APC Field-Assembly Fast Fiber Optic Connector – 0.9mm G657A1 Tool-Free Type

This LC/UPC & LC/APC field assembly fast connector is engineered for rapid, reliable, and precise terminations of 0.9mm single-mode optical cables in field environments. Preloaded with G657A1 fiber, this connector eliminates the need for epoxy or polishing. It’s ideal for high-performance FTTH and FTTx networks where speed, stability, and flexibility are critical.

The square boot design and internal structure are optimized to minimize insertion loss and ensure excellent repeatability even under mechanical stress. It is the go-to solution for technicians working in dynamic telecom environments, especially where access is limited and time is critical.

Engineering Suitability & Selection Boundaries

1. When This Product Is the Right Choice

• Typically selected for rapid FTTH drop terminations where teams need tool-free SC/APC field assembly on 3.0×2.0 mm flat drop cable without epoxy or polishing.
• Commonly used in maintenance and emergency repair scenarios when restoration speed matters and a mechanical splice workflow is preferred over carrying fusion splicing equipment.
• Usually appropriate for access segments standardized on SC/APC where reflection control is required for PON links and the installer can verify seating via the transparent cover during assembly.
• Typically suitable when the deployed fiber types match the stated G657A1 / G652D usage and the jobsite process can control strip/cleave and cleanliness for repeatable results.

2. When This Product May NOT Be Suitable

• May not be suitable if the actual drop cable profile is not 3.0×2.0 mm, since clamp fit and strain retention depend on the specific cable geometry.
• Commonly unsuitable when field conditions prevent consistent cleave quality and fiber cleanliness, as mechanical splice performance is technique-sensitive and may show IL variability.
• May not be appropriate for builds that require frequent re-termination beyond the stated reuse expectation, since repeated re-assembly typically increases performance scatter.
• Typically not suitable when the termination point requires a sealed hardened interface at the connector itself; this connector relies on the enclosure for environmental protection.

3. Common Selection Mistakes to Avoid

• Using the connector on “close enough” flat drops without confirming 3.0×2.0 mm sizing, which commonly causes weak retention and intermittent faults under movement.
• Treating the visual window as proof of optical quality without controlling strip length, cleave angle, and insertion depth, which commonly drives failed acceptance tests.
• Mixing APC and UPC ecosystems in the same handoff area without strict labeling and procedures, which commonly creates turn-up errors and rework.

Feature Details

• Pre-Embedded Fiber: Ensures alignment accuracy and optical stability.
• Square Boot Design: Provides stable strain relief and installation convenience.
• APC Endface Angle: Reduces back reflection, enhancing network signal integrity.
• No Epoxy or Polishing: Simplifies field operations and reduces errors.
• Standard LC Interface: Fully compatible with industry-standard LC ports.

Specification

Application Details

This field connector is a perfect fit for:

• Quick restoration of broken links in FTTH and access networks.
• Indoor installations where φ0.9mm pigtails are terminated on patch panels or splitters.
• Upgrade or expansion of existing networks without splicing.
• Deployments in tight spaces such as MDU enclosures and subscriber terminal boxes.

FAQ

Q1: What is a field-assembly fast fiber connector?
It is a reusable connector that allows on-site fiber termination without epoxy, polishing, or fusion splicing.

Q2: Which cable size is supported by this connector?
This model is specifically designed for φ0.9mm single-mode optical cables.

Q3: What makes this connector tool-free?
The pre-embedded fiber and mechanical clamping structure allow assembly using only basic fiber preparation steps.

Q4: What is the difference between LC/UPC and LC/APC versions?
LC/UPC is suitable for general data transmission, while LC/APC reduces back reflection for higher-performance links.

Q5: How long does installation take?
Each termination can typically be completed in under two minutes.

Q6: What optical performance can be expected?
Insertion loss ≤ 0.3 dB and return loss ≥ 55 dB ensure stable signal transmission.

Q7: Where is this connector commonly used?
It is widely used in FTTH, FTTB, indoor distribution frames, and emergency fiber repairs.
