DESCRIPTION

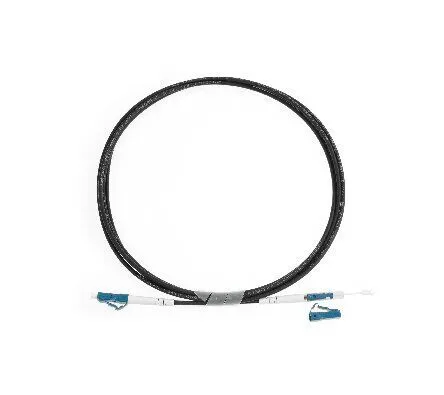

The Pullable PRE-Connectorized Bullet LC/UPC to LC/UPC Fiber Optic Patch Cord is an innovative solution for FTTH projects, providing reliable, high-quality fiber connections for residential and commercial environments.

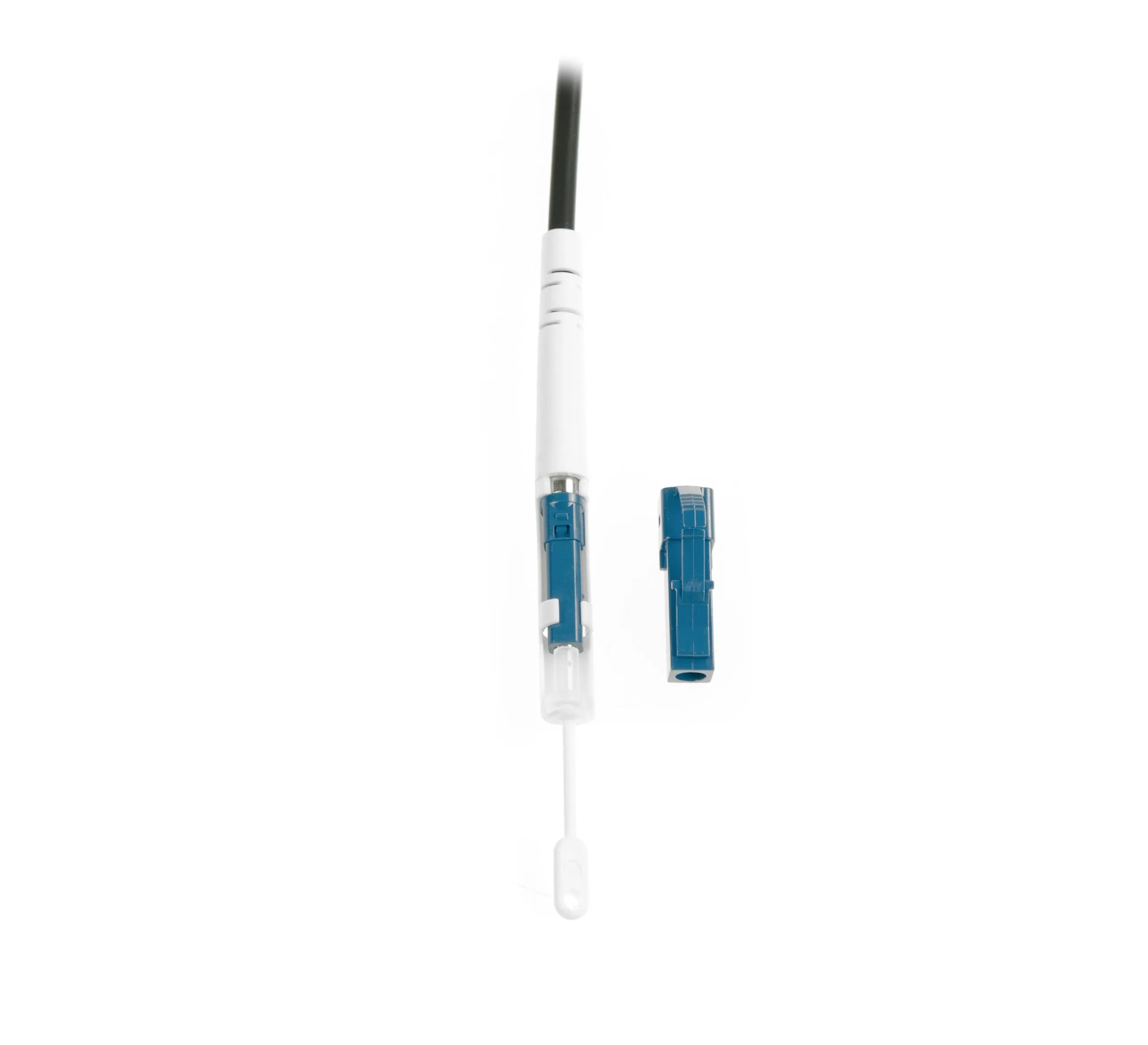

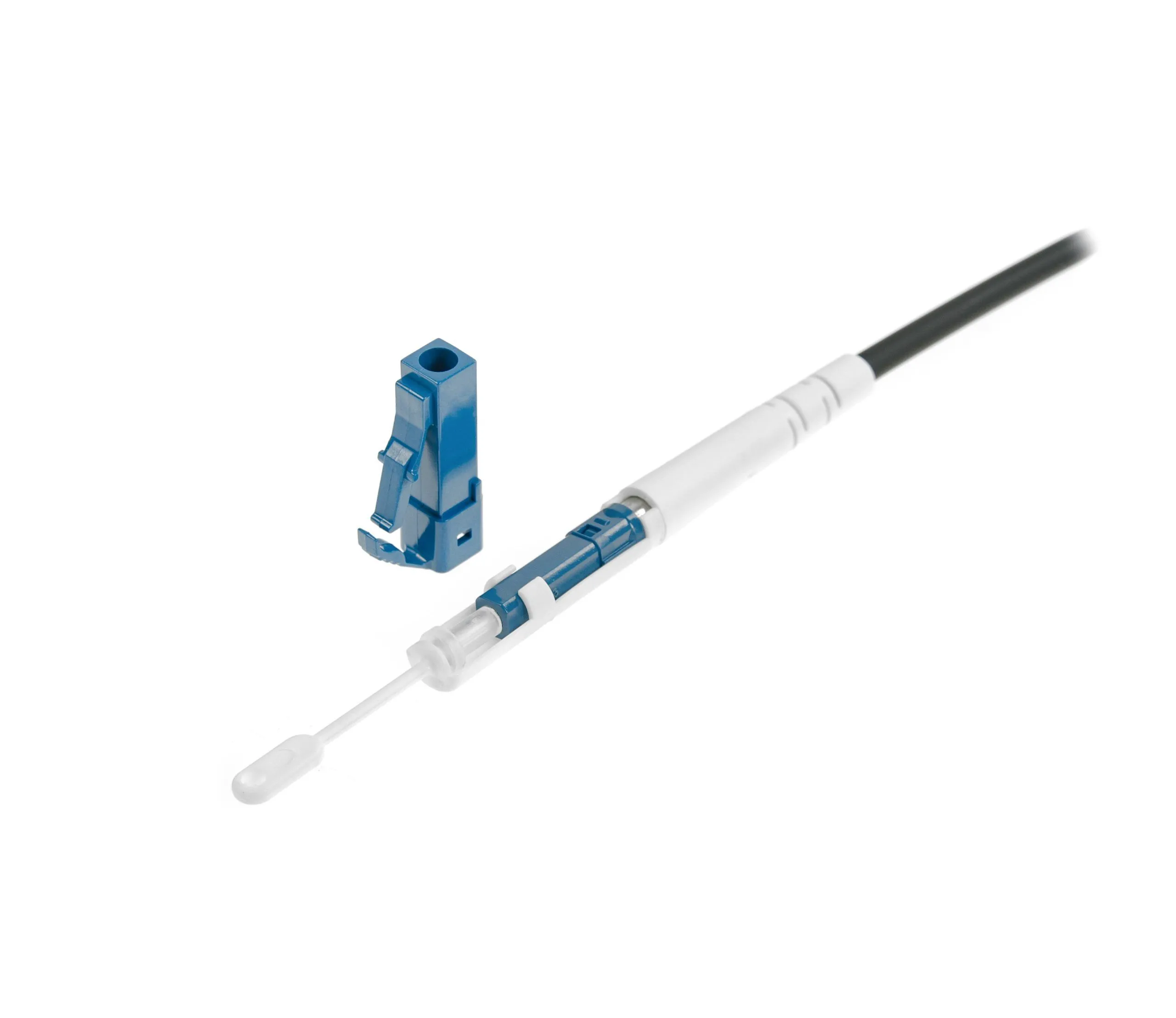

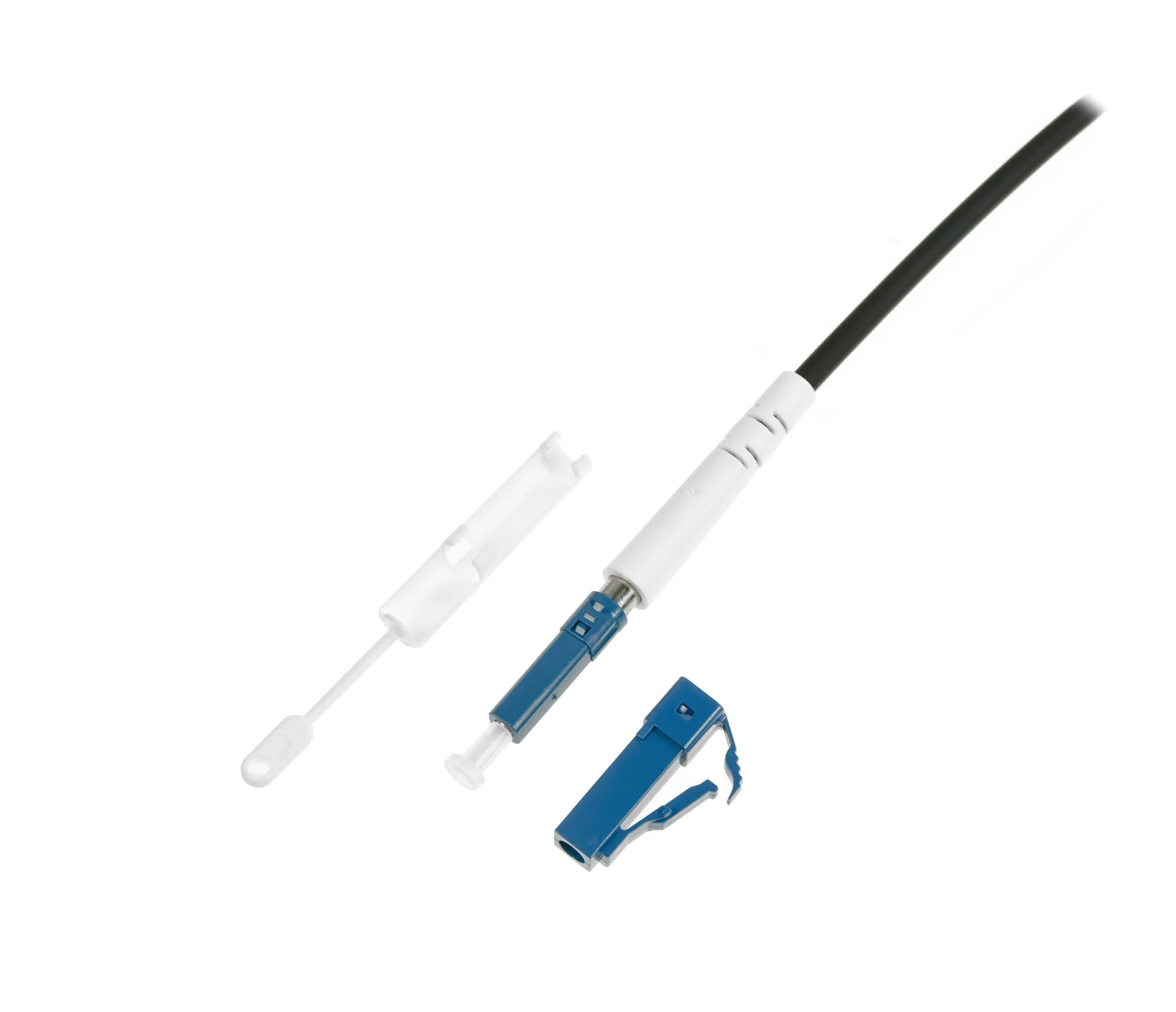

Designed with a compact bullet LC/UPC connector, this patch cord supports quick installation, even in narrow or concealed spaces. The robust LSZH jacket and reinforced aramid yarn ensure long-lasting durability, making it ideal for both indoor and outdoor applications. Its high optical performance guarantees efficient data transmission with minimal signal loss.
- Compact and Threadable Design
- Bullet-style connector allows easy passage through pipes and conduits with inner diameters >6mm, streamlining concealed cabling.
- Space-saving design supports high-density installations without compromising performance.
- High-Performance Optical Characteristics
- Low insertion loss (≤0.3dB) ensures efficient data transmission over long distances.
- High return loss (≥50dB) minimizes reflection and enhances signal stability.
- Rugged Build for Durability
- LSZH jacket complies with environmental and safety standards, offering resistance to fire and UV exposure.
- Reinforced with aramid yarn for tensile strength up to 150N, ensuring reliability in demanding installations.
- Plug-and-Play Installation
- Pre-terminated connectors simplify setup, saving time and reducing labor costs.
- Compatible with both round and flat cables, ensuring versatility across applications.
Product Specifications
| Parameter | Specification |
| Connector Type | LC/UPC to LC/UPC (Bullet Pulling Head) |
| Polish | UPC to UPC |
| Fiber Type | Single Mode 9/125 μm (G.657.A2 / G.657.B3) |
| Cable OD | 3.0mm |
| Cable Structure | Simplex |
| Jacket Material | LSZH |
| Insertion Loss | ≤0.3dB (IEC Grade C1) |
| Return Loss | SM UPC ≥50dB |
| Tensile Strength | 3.0 mm round cable: 100–150 N; Flat drop cable (2×3 mm / 2×5 mm): 70 N |
| Crush Resistance | Long Term: 100N/100mm; Short Term: 500N/100mm |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -20°C to +70°C |
Deployment Notes
Designed for concealed FTTH installations requiring conduit pulling
Bullet LC connector enables smooth routing through ≥6 mm ducts
Ideal for fast, pre-terminated last-mile fiber deployment
- FTTH Deployments: Supports efficient last-mile connectivity for housing and commercial networks.
- Pipe-Compatible Installations: Slim bullet LC design allows for concealed cabling through conduits >6mm in diameter.
- Indoor and Outdoor Use: Designed for versatile installations requiring durability and flexibility.

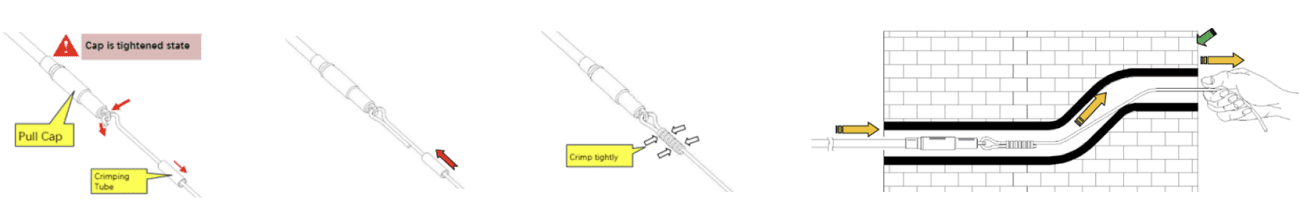

Steps to Thread the Pullable Pre-Connectorized Bullet LC/APC Through a Wall Pipe
- Insert the Steel Wire into the Pull Cap
- Pass the φ1mm steel wire through the crimping ring and into the round hole of the pull cap.
- Ensure the cap is securely tightened.
- Position the Crimping Ring
- Place the crimping ring so it overlaps with the steel wire.
- Secure the Crimping Ring
- Use pliers to press the crimping ring tightly.
- Confirm that the wire rope is firmly fixed and cannot loosen.
- Pull the Connector Through the Pipe
- Gently pull the connector with the steel wire through the hidden wall pipe until it reaches the desired position.
Q1: What is a pullable pre-connectorized bullet LC/UPC patch cord?
It is an armored fiber optic patch cord with factory-installed LC/UPC connectors and a compact “bullet” pulling eye, designed for quick deployment through ducts and conduits without damaging the connectors.
Q2: What is the difference between LC/UPC and LC/APC versions?
LC/UPC connectors provide typical return loss of ≥50 dB, suitable for enterprise and data center use. LC/APC offers ≥60 dB return loss, recommended for FTTH and telecom networks requiring minimal back reflection.
Q3: Why use an armored pullable patch cord?
The armored construction protects against bending, crushing, and rodent damage, making it highly durable for both indoor and outdoor environments.
Q4: Can these cords be customized?
Yes. Length, jacket type, pulling-eye size, labeling, and packaging can be customized according to project specifications.
Q5: What jacket options are available?
LSZH is standard for indoor safety, while UV-resistant PE or armored sheaths are available for outdoor installations.
Q6: How are the cords tested before shipment?
All cords undergo 100% insertion loss and return loss testing, along with mechanical durability checks to ensure reliable performance.
Q7: What are the typical applications of LC/UPC bullet-type pre-terminated cords?
They are widely used in FTTH networks, enterprise cabling, data centers, and indoor/outdoor transitions where fast, plug-and-play installation is required.
Q8: What is the typical lead time for delivery?
Standard lengths are usually in stock for quick shipment, while customized armored assemblies generally require 5–10 working days.
