DESCRIPTION

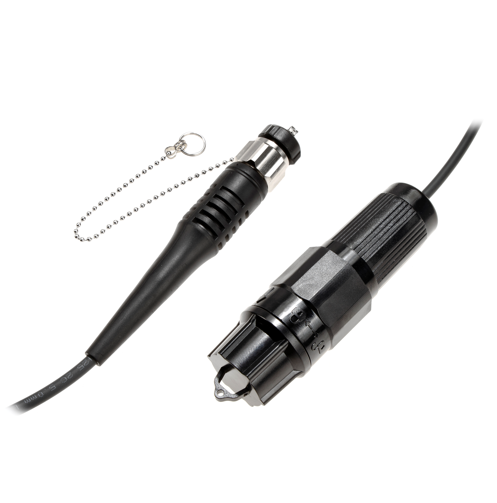

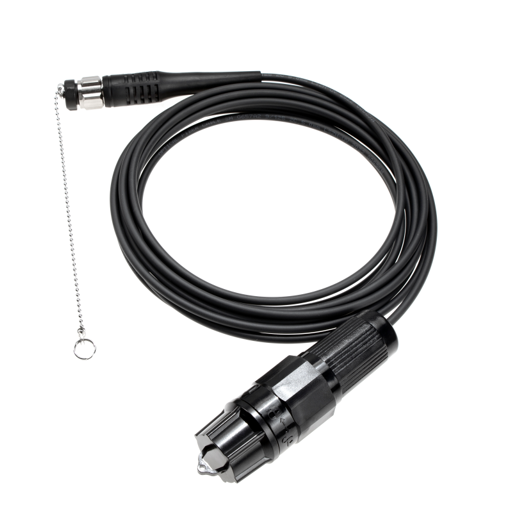

The ODC to Injection-Free FullAXS LC Waterproof Fiber Optic Patch Cord is a versatile solution for outdoor and industrial fiber optic applications. Compliant with IEEE 802.3z standards for Fast Ethernet and Gigabit Ethernet, it is designed to provide stable and efficient fiber optic connections in harsh conditions. With a fully sealed design, thread locking mechanism, and blind mating capability, this patch cord ensures reliable performance in remote wireless base stations, military communication setups, and mining operations.
Its compact design, rugged LSZH or TPU jacket, and low insertion loss make it ideal for environments requiring durability, efficiency, and high optical performance.
Engineering Suitability & Selection Boundaries
When This Product Is the Right Choice
Deployments requiring outdoor waterproof fiber connections in harsh or uncontrolled environments, such as oil fields, mining sites, or military communication systems.
Remote wireless base station scenarios, including 3G, 4G, and 5G infrastructure, where sealed optical links are exposed to weather and vibration.
Installations benefiting from blind mating and one-handed connection, especially where access space is limited or visual alignment is difficult.
Applications where long-term mechanical stability is needed, supported by threaded locking and fully sealed connector construction.
When This Product May NOT Be Suitable
Indoor or climate-controlled environments where standard LC patch cords provide sufficient performance without environmental sealing.
Deployments that do not utilize ODC or FullAXS-compatible interfaces, making specialized connector systems unnecessary.
High-density indoor cabling systems where compact routing and frequent re-patching are prioritized over sealed outdoor interfaces.
Common Selection Mistakes to Avoid
Treating an ODC to FullAXS assembly as a generic waterproof LC patch cable, without verifying interface compatibility.
Selecting sealed outdoor connectors solely for perceived durability, even when environmental exposure is minimal.
Overlooking installation workflow requirements, such as blind mating and mechanical locking, during system-level planning.
Feature Details
- Robust Environmental Protection
- Fully sealed construction protects against water, dust, and extreme weather.
- Designed to withstand storage temperatures from -45°C to +85°C and operating temperatures from -40°C to +75°C.
- Efficient and Flexible Design
- The blind mating mechanism simplifies installation, allowing easy one-handed operation.
- Compact design makes it suitable for space-restricted and high-density setups.
- High-Performance Optical Performance
- Low insertion loss (≤0.3dB) ensures minimal signal degradation.
- High return loss (≥50dB) delivers stable optical connectivity over long distances.
- Customizable Solutions
- Options for LSZH or TPU jacket materials based on environmental requirements.
- Cable outer diameter (OD) of 5.0mm supports durability and flexibility.

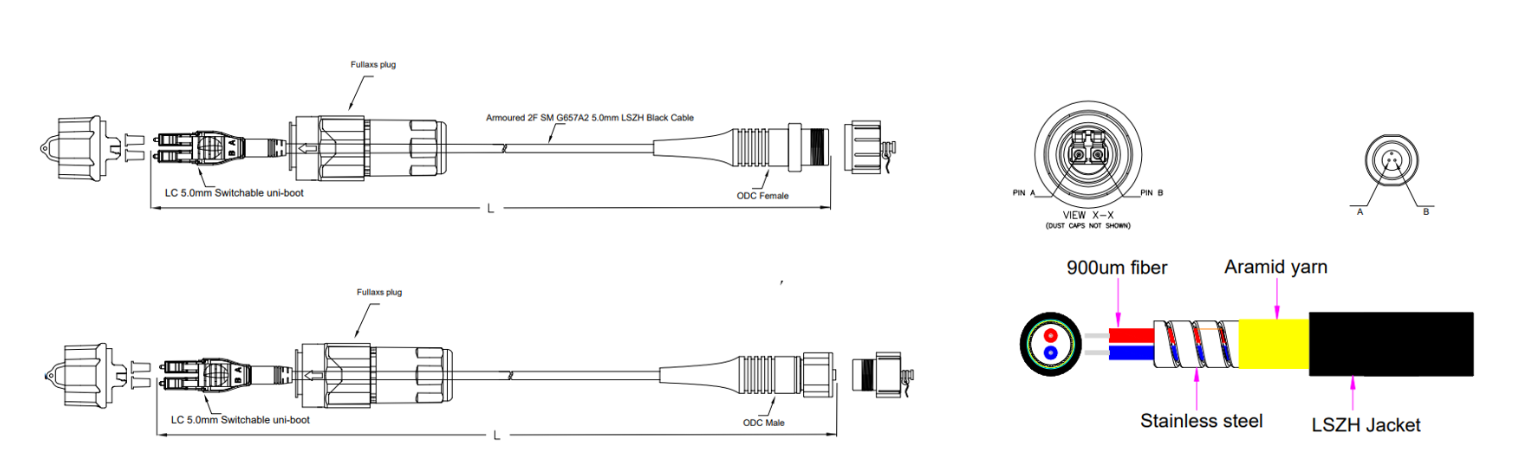

| Parameter | Specification |
| Connector Type | ODC to FullAXS LC |
| Fiber Mode | G.657A |
| Polish | UPC to UPC |
| Fiber Count | Duplex (2F) |
| Jacket Material | LSZH or TPU |
| Jacket Outer Diameter | 5.0mm |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥50dB |
| Wavelength | 1310/1550nm |
| Operating Temperature | -40°C to +75°C |
| Storage Temperature | -45°C to +85°C |
- Telecommunications: Provides secure and stable connections in outdoor telecom networks, including remote wireless base stations. Designed for stable Ethernet optical links aligned with IEEE 802.3z expectations in FTTA deployments.
- Industrial Communication: Withstands harsh conditions in oil fields, mining sites, and other industrial environments.
- Surveillance Systems: Ensures reliable fiber connectivity for CCTV and remote monitoring systems.
- Military and Emergency Applications: Suitable for rugged and high-demand setups requiring durable and compact connectivity solutions.
- Fiber Optic Sensing: Supports accurate and stable sensing operations in environments with extreme temperatures and conditions.
Q1: What are the main applications of the ODC to FullAXS LC waterproof patch cord?
It is mainly used in FTTA systems, wireless base stations, military communication, mining operations, and other harsh outdoor environments.
Q2: What standards does this patch cord comply with?
It is compliant with IEEE 802.3z standards, supporting both Fast Ethernet and Gigabit Ethernet applications.
Q3: How does the design ensure durability in harsh conditions?
The patch cord features a fully sealed structure, thread locking mechanism, and blind mating capability to provide reliable connections in rugged environments.
Q4: What jacket materials are available?
Both LSZH and TPU jackets are offered, providing UV resistance, flame retardancy, and high flexibility for different installation scenarios.
Q5: How is installation simplified?
The blind mating design and secure locking mechanism allow quick, tool-free installation with minimal maintenance needs.
Q6: What optical performance can be expected?
The patch cord ensures low insertion loss and high return loss, delivering stable and efficient optical transmission.
Q7: Can this patch cord be customized?
Yes. Length, connector type, jacket material, labeling, and packaging can all be tailored to project-specific requirements.
Q8: What is the typical delivery time?
Standard configurations are available from stock, while customized orders usually require 5–10 working days.
