DESCRIPTION

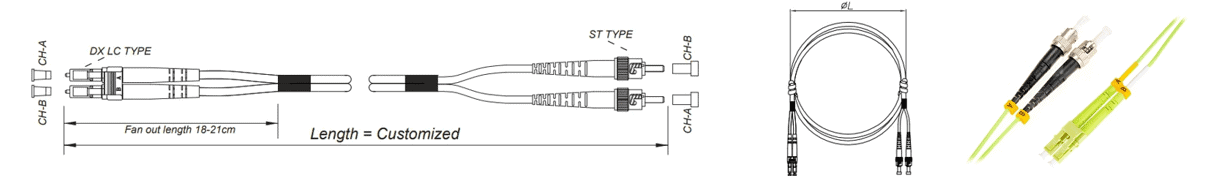

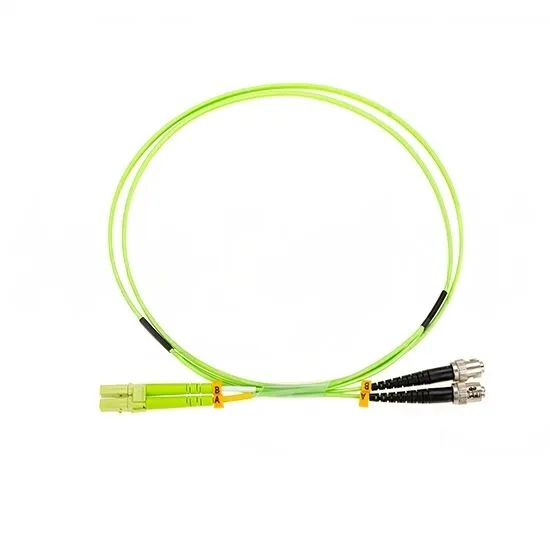

The LC UPC to ST UPC OM5 Multimode Duplex 2.0mm Fiber Patch Cord is engineered for next-generation short-reach data transmission. Featuring wideband OM5 fiber, it supports 40G/100G transmission over fewer fibers. With durable LC and ST connectors, precise UPC polishing, and a compact 2.0 mm duplex structure, this patch cord is ideal for modern data centers, enterprise networks, and high-performance computing systems.

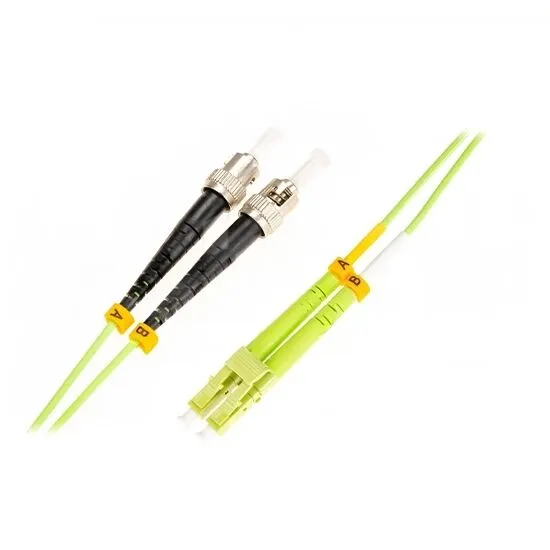

- Flexible Connector Interface: LC UPC to ST UPC hybrid design ensures compatibility between modern data center equipment and legacy multimode devices.
- OM5 Wideband Multimode Support: Optimized for wavelengths 850/1300nm, OM5 fiber enables SWDM applications, reducing fiber count for 40G/100G links.
- Flexible Options: Simplex or Duplex version and Fan-out on request.
- Optimized Optical Performance: Low insertion loss and high return loss maintain stable, low-error transmission for critical network operations.
- Backward Compatibility: Works seamlessly with OM4 and OM3 cabling systems, protecting existing infrastructure investments.
| Connector | LC to ST | Jacket OD | 2.0mm |
| Fiber Mode | OM5 | Jacket Color | Lemon green |
| Polish | UPC to UPC | Wavelength | 850/1300nm |
| Fiber Type | Duplex | Jacket Material | LSZH / PVC / OFNP |
| Insertion Loss | ≤0.3dB | Interchangeability | ≤0.2dB |
| Return Loss | ≥30dB | Vibration | ≤0.2dB |
| Operating Temperature | -40~75°C | Storage Temperature | -45~85°C |
| Polarity | A(Tx) to B(Rx) |
- Data Centers: High-density cabling for parallel optics and SWDM 40/100G Ethernet.
- Enterprise Networks: Reliable backbone links between core switches and servers.
- Cloud Infrastructure: Designed for scalability and future-proof performance.
- LAN & SAN Systems: Ensures stable short-distance optical interconnects.
- High-Performance Computing: Low-latency transmission for demanding computing clusters.
Q1: What is the main application of this LC to ST OM5 patch cord?
It is mainly used in modern data centers, high-performance computing systems, and enterprise networks requiring short-reach, high-speed multimode connectivity.
Q2: What advantages does OM5 fiber provide over OM3/OM4?
OM5 is a wideband multimode fiber that supports short-reach 40G/100G transmission over fewer fibers, improving link efficiency and reducing cabling complexity.
Q3: Why choose LC to ST connectors?
LC connectors are compact and save panel space, while ST connectors provide reliable bayonet-style connections, ensuring compatibility with various legacy and modern equipment.
Q4: What optical performance can be expected from UPC-polished connectors?
UPC connectors provide return loss ≥50 dB, ensuring low reflection and stable signal quality in multimode networks.
Q5: What is the benefit of the 2.0mm duplex structure?
The compact 2.0mm duplex design allows easy routing, saves space, and simplifies installation in high-density patch panels.
Q6: Can this patch cord be customized?
Yes. Fiber length, jacket color, labeling, and connector type can all be tailored to specific project requirements.
Q7: How is the patch cord tested before shipment?
Each cord is 100% tested for insertion loss and return loss to ensure compliance with industry standards and reliable performance.
Q8: What is the typical delivery time?
Standard OM5 patch cords are usually in stock, while customized versions typically require 3–7 working days.
