DESCRIPTION

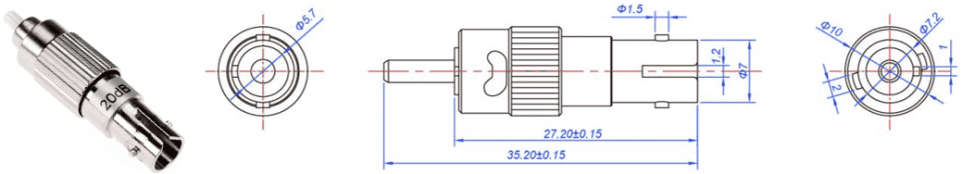

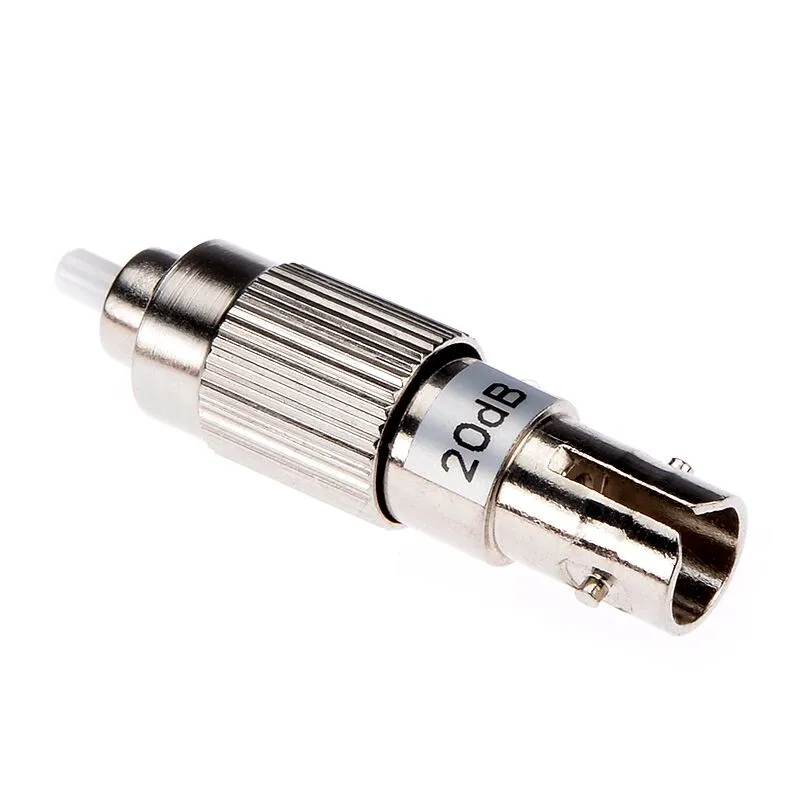

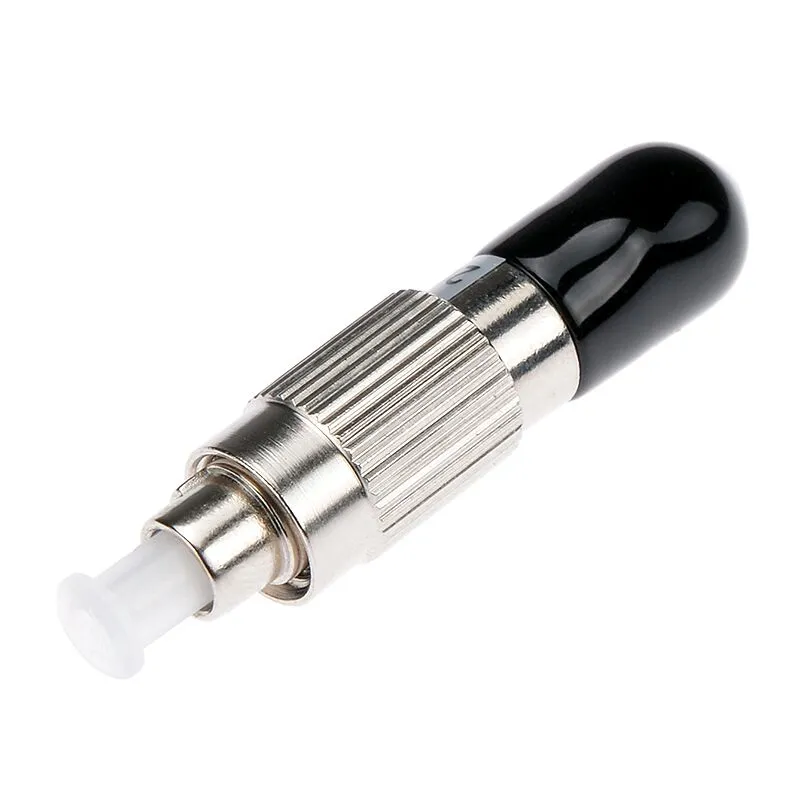

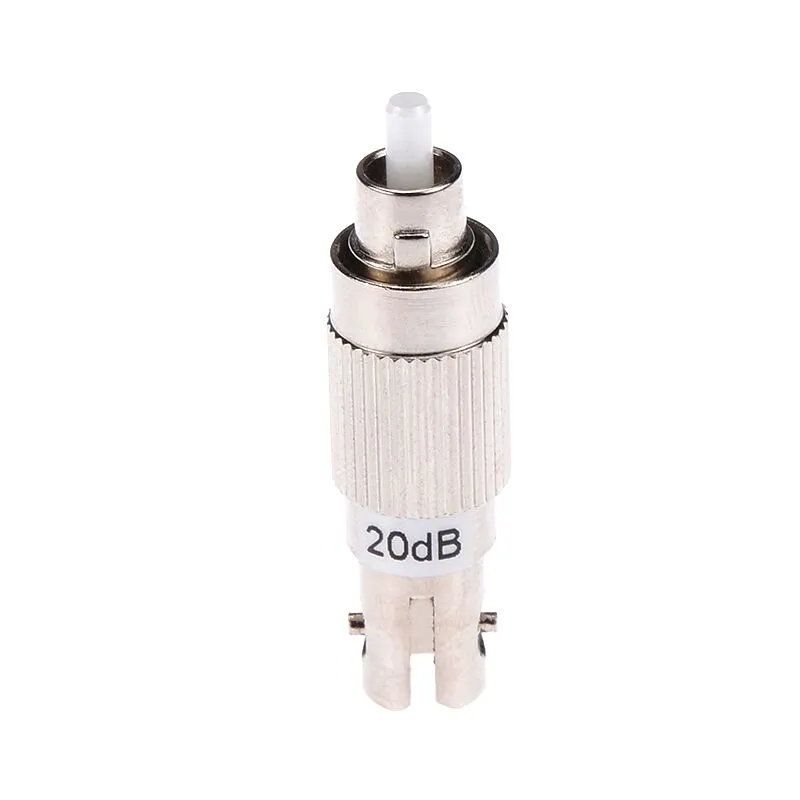

The ST Female to FC Male Multimode Plug-in Fixed Attenuator is a reliable solution for managing optical power in multimode fiber networks. Designed with a plug-in style, it ensures easy installation without additional tools. It helps protect receivers from signal overload and guarantees stable performance across a wide range of telecom, data center, and enterprise applications.
FEATURE DETAILS
- Stable Attenuation: Fixed attenuation value for stable signal reduction.
- Plug-and-Play Design: Without splicing, making installation fast and hassle-free.
- Wide Fiber Compatibility: Works with single-mode and multimode fiber.
- Durable Build: Equipped with a ceramic ferrule and robust metal housing to withstand repeated use.
- Multiple Options: Available in different attenuation levels, meeting diverse testing and deployment needs.
PRODUCT SPECIFICATIONS
| Item | Value |
| Connector Type | ST Female to FC Male |
| Fiber Mode | Single-mode / Multimode |
| Polish Type | PC / UPC / APC |
| Connector | SC / LC / FC / ST / MU |
| Body Material | SC / FC / ST (Metal) ; LC (Plastic) |
| Ferrule Type | Zirconia Ceramic |
| Attenuation | 1~25dB |
| Attenuation Accuracy | 1-9dB±0.5dB, 10-25dB±10% |
| Operating Wavelength | 1310nm, 1550nm, 1310&1550nm |
| Polarization Dependent Loss | ≤0.2dB |
| Return Loss | ≥55dB |
| Humidity | 95%RH |
| Max Optical Input Power | 200mW |
| Storage Temp Range | -40~85°C |
| Operating Temp Range | -40~80°C |
| Mating Durability | ≥ 1000 times |
APPLICATION DETAILS
- Telecom Networks: Balances optical power in short multimode fiber links to prevent overload.
- Data Centers: Used in high-density environments to maintain optimal multimode transmission quality.
- FTTH/FTTB Projects: Ensures correct signal levels during installation and troubleshooting.
- Testing & Measurement: Ideal for laboratory, R&D, and production line testing of optical components.
- Enterprise Networks: Provides controlled attenuation for LAN and campus fiber optic connections.
Selection Notes
- Typically selected when a short multimode link needs a fixed attenuation value (1–25 dB) and the setup requires a hybrid plug-in format (ST female ↔ FC male) to interface directly with mixed test gear or legacy ports without adding extra patch cords.
- May not be appropriate when the link is actually single-mode, or when the attenuation target / wavelength plan isn’t defined, since a wrong fixed value (or wrong fiber-mode assumption) can under-power the receiver or hide real link issues during troubleshooting.
FAQ
Q1: What is the function of a fiber optic attenuator?
A1: It reduces optical signal power to prevent receiver overload and optimize transmission quality.
Q2: What fiber type does this attenuator support?
A2: It is designed for multimode fiber, including 50/125 µm and 62.5/125 µm.
Q3: Can I select different attenuation levels?
A3: Yes, attenuation values from 1 dB to 25 dB are available upon request.
Q4: What is the difference between plug-in and inline attenuators?
A4: Plug-in attenuators connect directly between two connectors, while inline attenuators are part of a cable assembly.
Q5: Is this attenuator suitable for singlemode fiber?
A5: No, this model is specifically designed for multimode fiber applications.
Q6: What is the typical return loss of this attenuator?
A6: It provides a return loss of ≥35 dB, ensuring stable optical performance.
Q7: How durable is the connector interface?
A7: It supports over 1000 mating cycles, making it highly reliable for repeated use.
Q8: Does it comply with international standards?
A8: Yes, it meets IEC, TIA/EIA, and RoHS compliance requirements.
