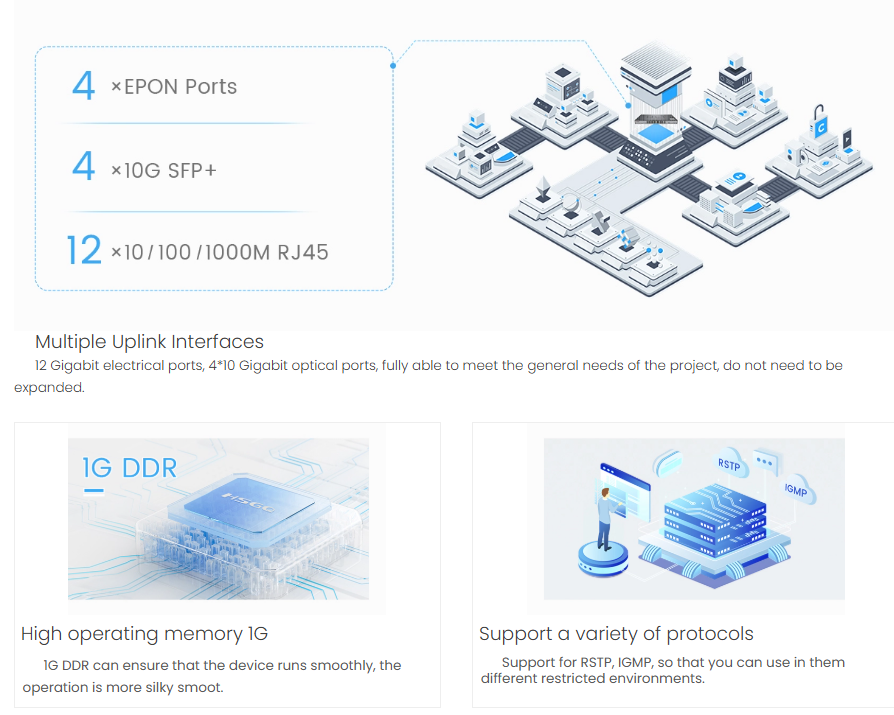

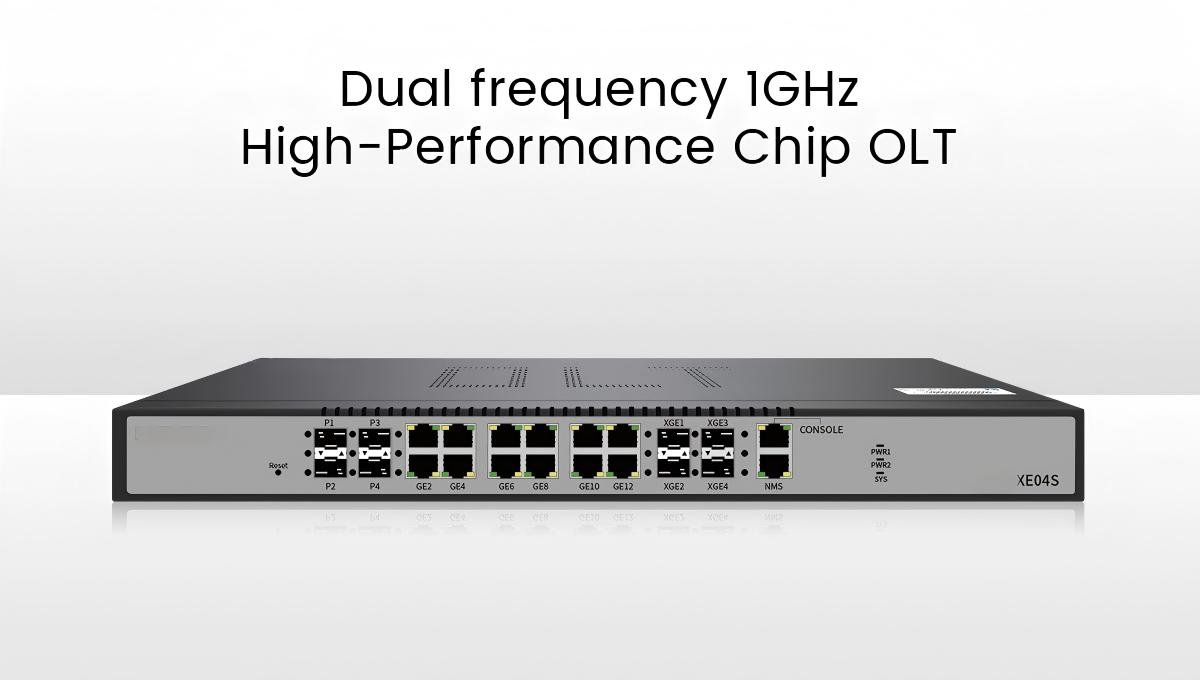

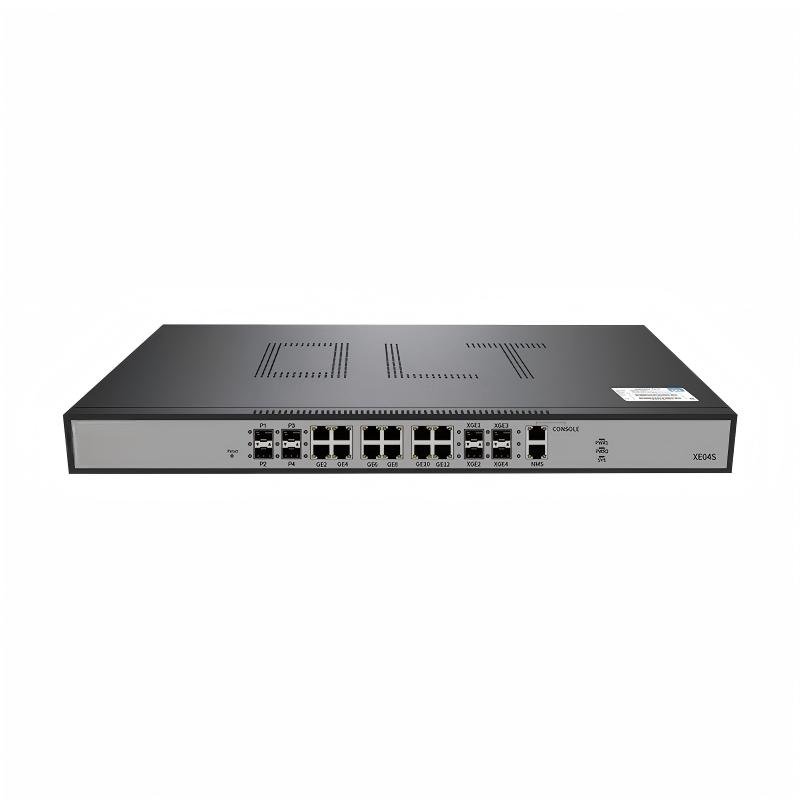

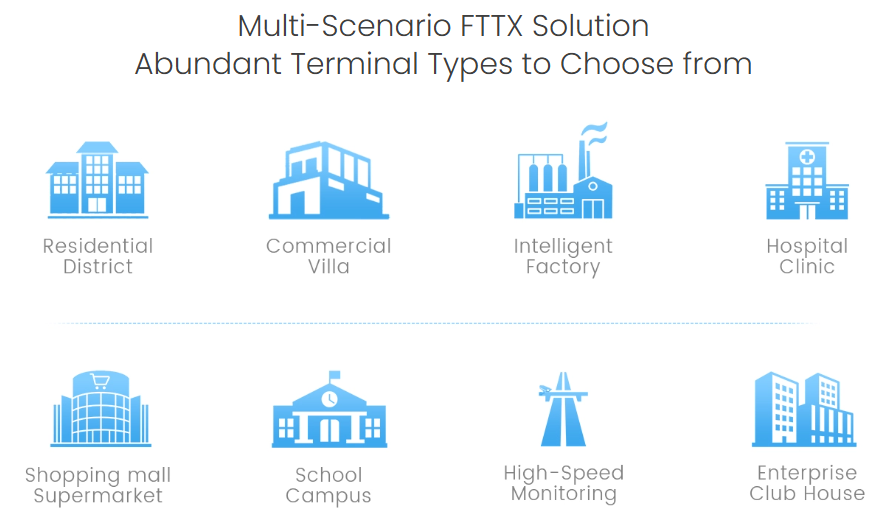

XE04S is a highly-integrated, medium-capacity cassette EPON OLT switching device developed for carrier access and enterprise campus networking. It follows the IEEE802.3ah technology standard and provides 12 uplink Gigabit electrical ports and 4 10GbE SFP+ interfaces, and 4 downlink Gigabit EPON optical ports. The maximum split ratio of each EPON optical port is 1:64, and the system can support a maximum of 256 ONUs, which meets the requirements of《YD/T 1475-2006 Technical Requirements for Access Networks 3.0》for EPON OLT equipment, with good openness, high capacity and reliability, and complete software functions. Widely used in various operators front-end network coverage, private network construction, video surveillance, enterprise network park IoT, resident network fiber and other access network construction.

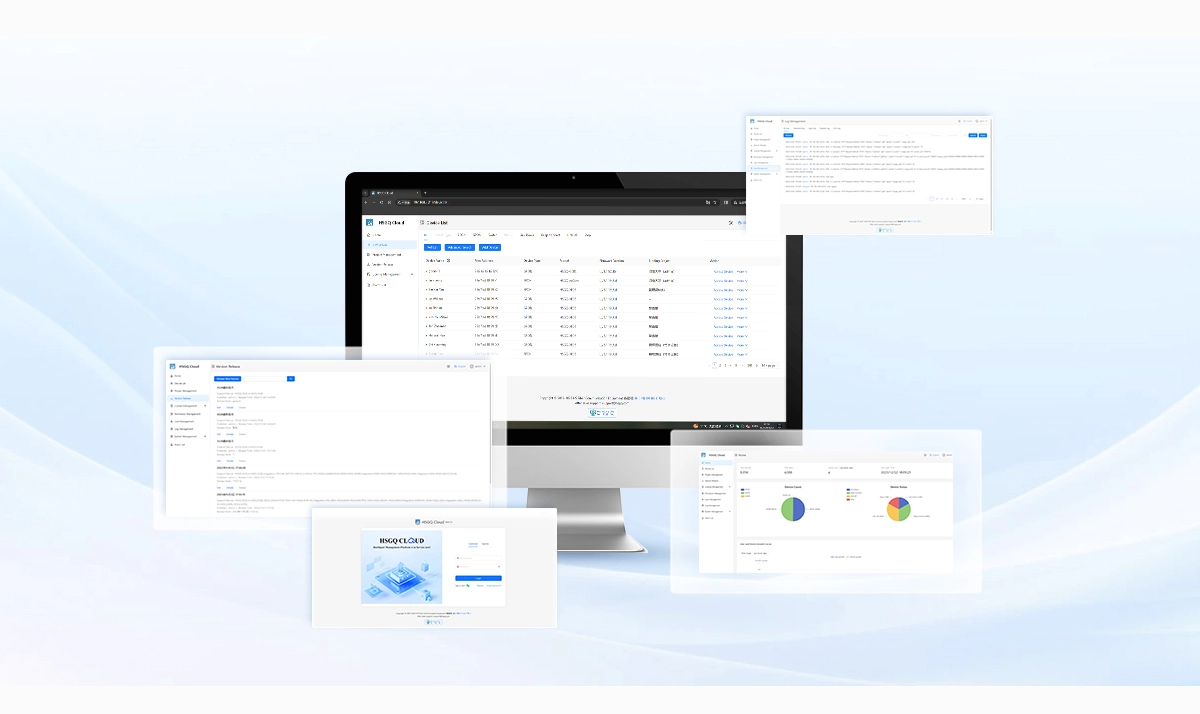

Support WEB Management
An independent cloud management platform – Cloud, enables cloud management of devices, allowing for easy and efficient operation of devices at any time.
