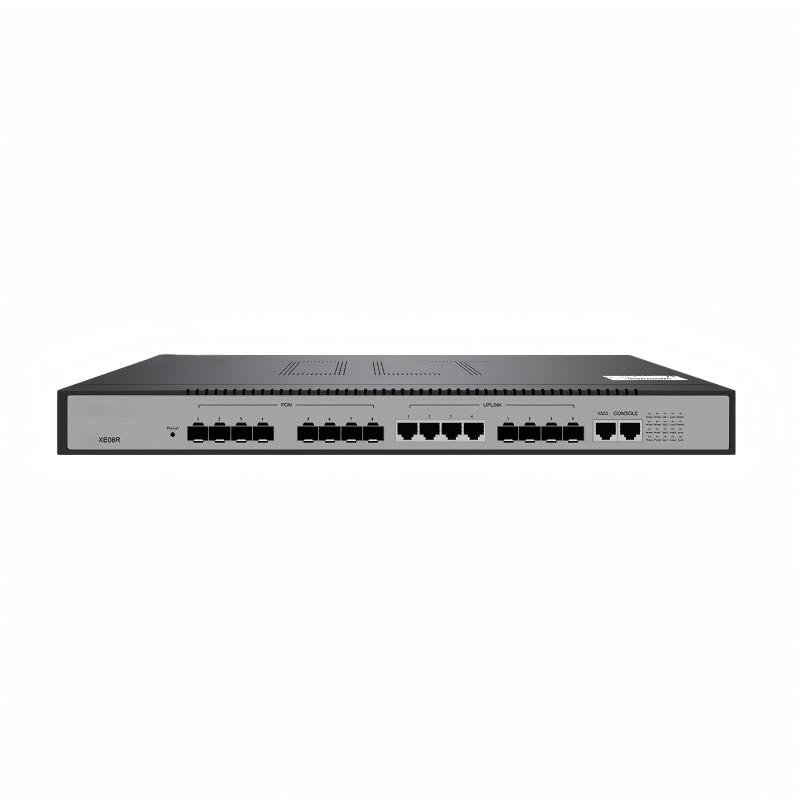

XE08R is 1U cassette EPON OLT series. The system has good stability and high reliability. It supports CLI, WEB, SNMP and other management methods. The product provides 8 downlink EPON interfaces, 4*1000base – t uplink Ethernet interfaces and 4*10G SFP+ uplink interfaces. Through the cloud management function, users can quickly deploy, configure, remotely manage and operate the equipment in the whole network, which greatly reduces the labor cost and time cost in the process of network construction. It is suitable for sparsely populated, remote and cost-sensitive areas, smart industrial parks, commercial buildings, FTTx, etc. Each EPON port supports up to 1:64 split ratio, up to 512 EPON users, and different types of ONUs under different networks. 1U height for easy installation and maintenance. It is an excellent choice for operators to rapidly deploy FTTH networks

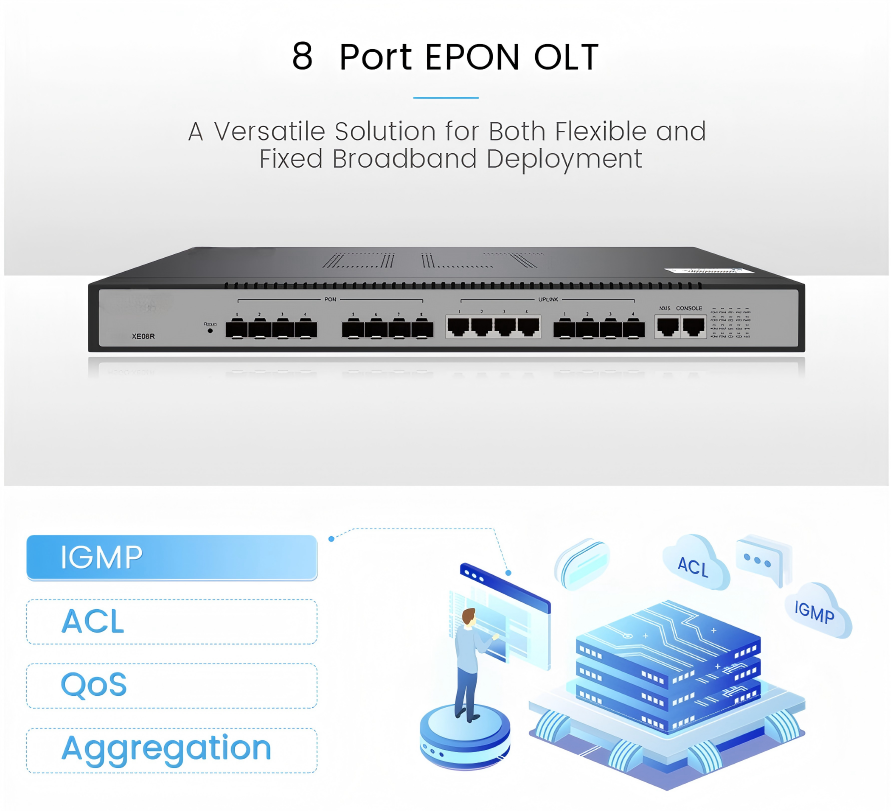

Flexible and Controllable Multicast Support
Support IGMP snooping
Support ACL and QoS
Support port aggregation

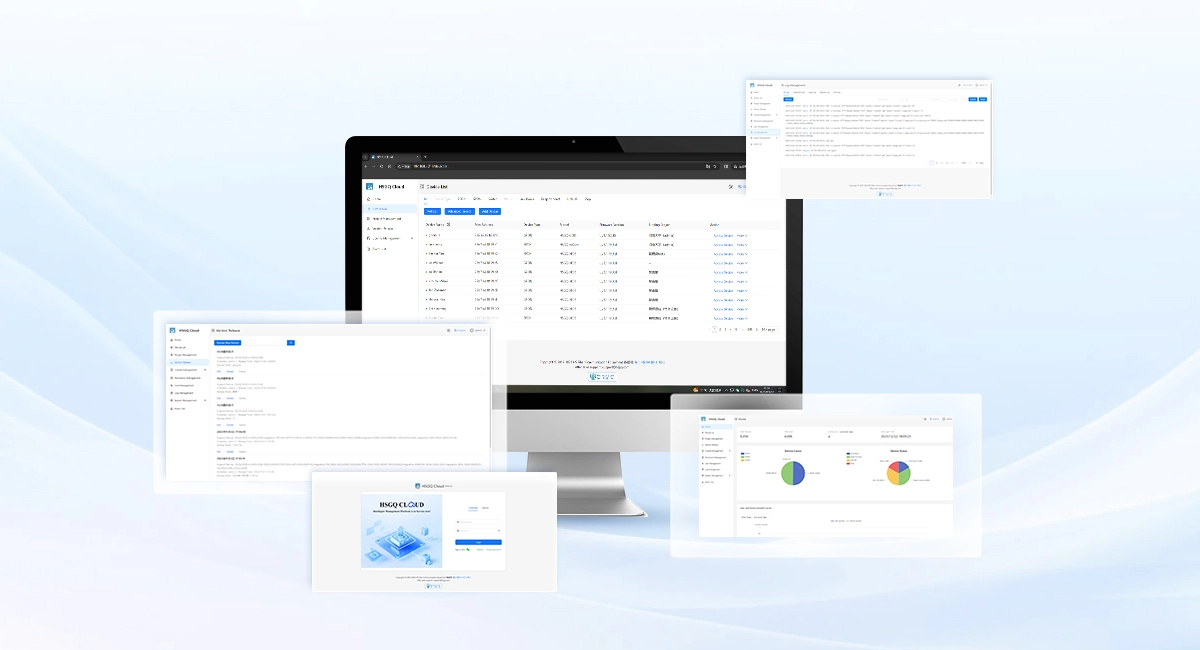

With our own cloud management platform – Cloud, the users can realize the equipment cloud management, can operate the equipment at any time, more convenient and faster.

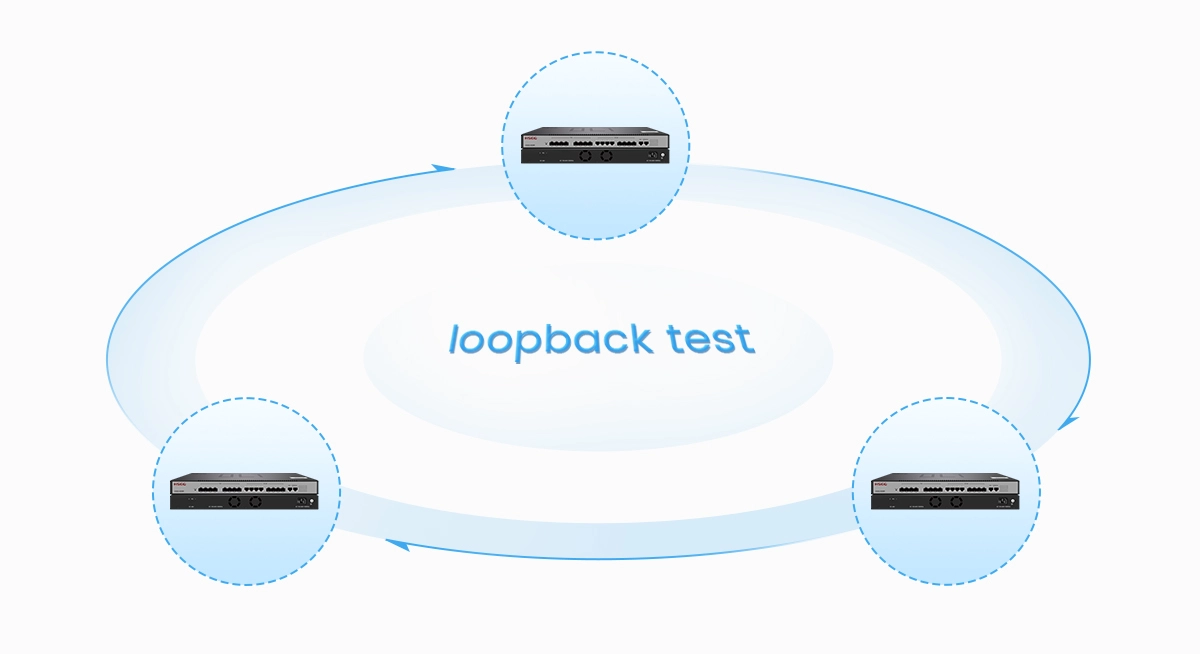

Support Automatic Loopback Test Function
Can automatically detect and diagnose whether the equipment can operate normally or clarify the part of the failed node in the Internet.

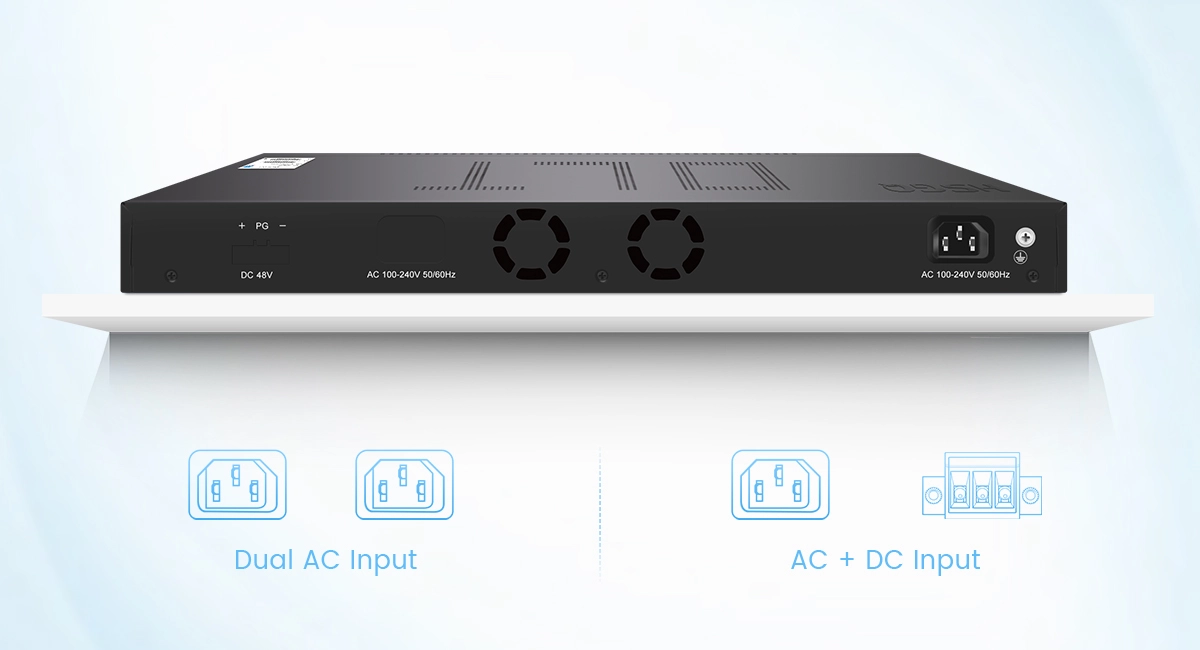

Support for dual power (supply default single power supply support for dual DC/AC input, AC+DC input AC: 100-240V 50/60HZ DC: 48V dual power supply can ensure that the equipment can be used normally after power failure).

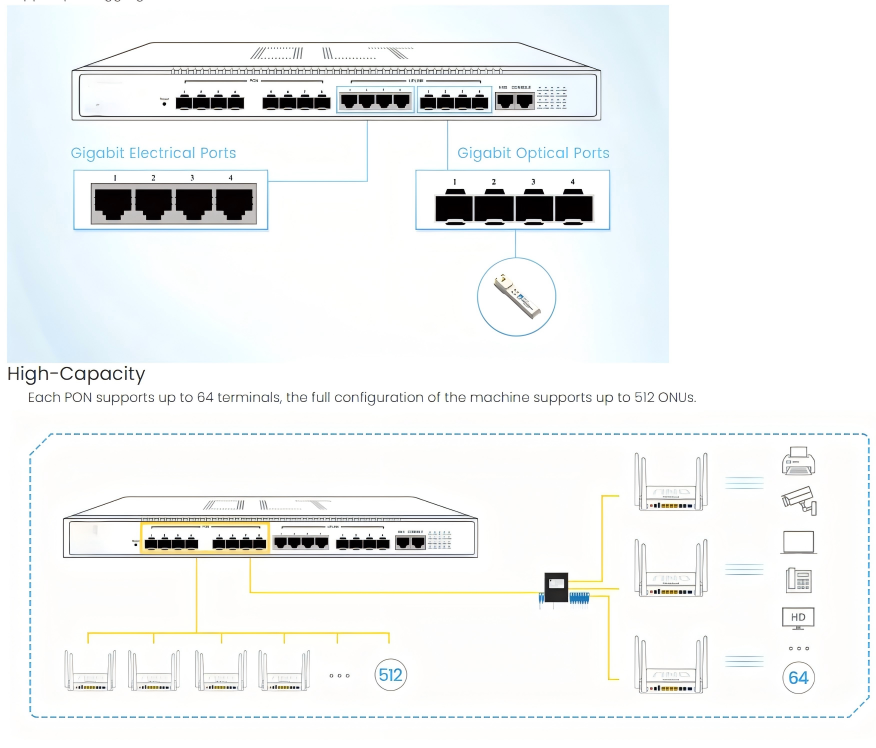

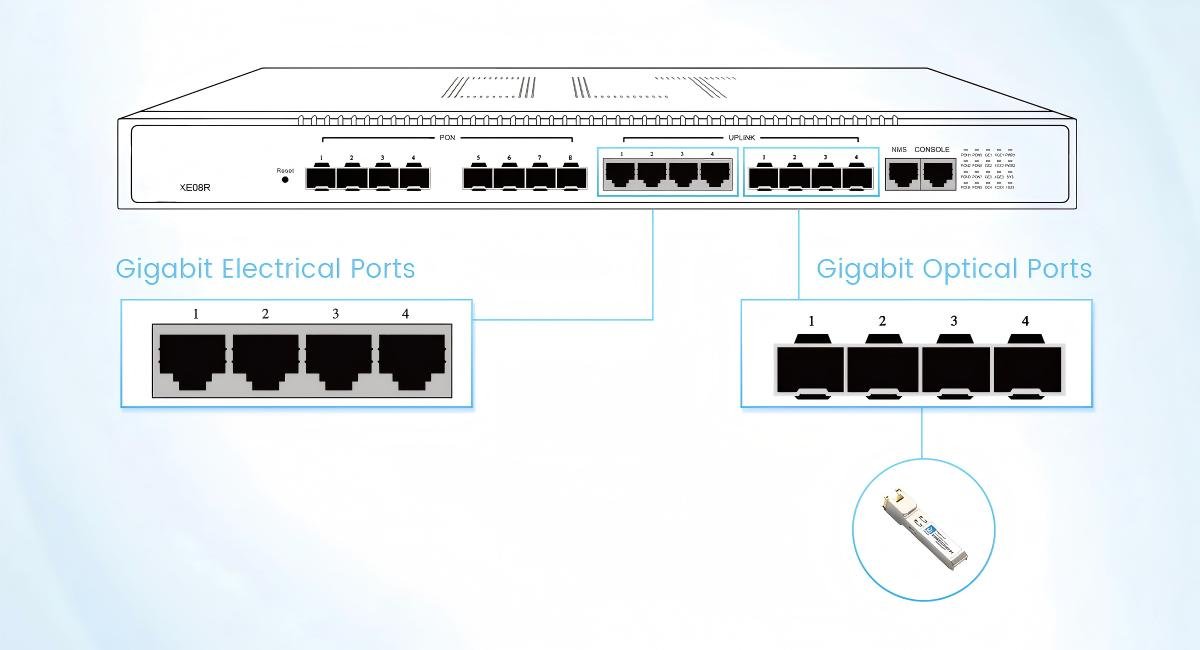

Support for Electrical Modules and Optical Modules
Support for electrical modules and optical modules, according to different networking flexibility in the configuration (XE08R has 4 Gigabit electrical ports, 4* 10G optical ports).
