DESCRIPTION

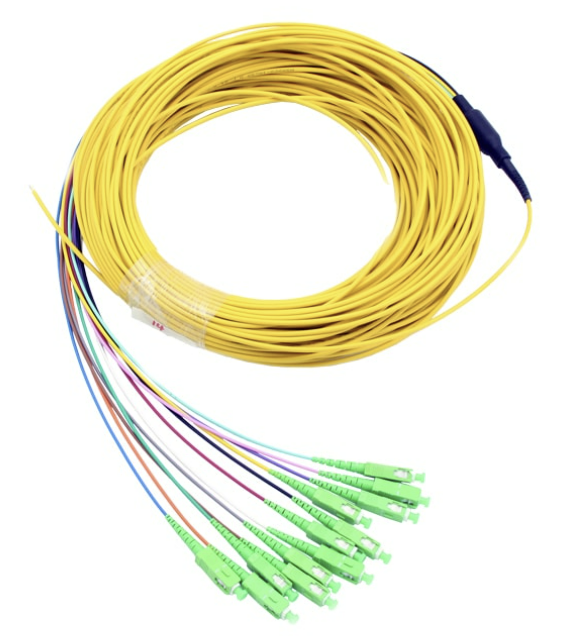

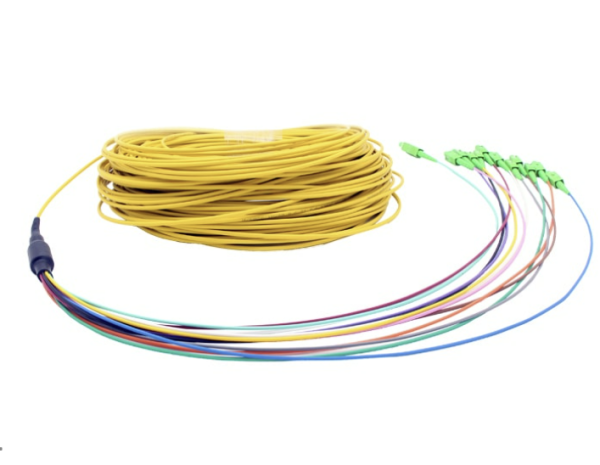

The 12F and 24F Micro-Fiber Pre-Terminated Fiber Optic Pigtail SC/LC/ST/FC is engineered for space-saving and efficient fiber optic cabling in high-density environments. With a small OD of 3.0mm and a flexible fanout design, this pigtail ensures reduced cabling difficulty while maintaining excellent optical performance. It is an ideal choice for data centers, telecommunication networks, and other high-bandwidth applications.
Feature Details
- High-Quality Ferrules:
- Single Mode:Ceramic ferrules with <0.3µm concentricity.
- Multi-Mode:Ceramic ferrules with <4.0µm concentricity.
- Durable Design:OEM customizable housing kits and boot colors ensure compatibility with various installation needs.
- Standard Compliance:Compatibility with SC, LC, FC, ST, and other connectors for seamless integration into existing systems.
| Fiber Count | OD (mm) | Tensile Strength (N) | Crush Load (N/100mm) | Bending Radius (mm) |
| 2-12F | 3.0 ± 0.15 | Short-term: 180; Long-term: 90 | Short-term: 500; Long-term: 150 | Static: 10D; Dynamic: 20D |
| Fiber Count | OD (mm) | Tensile Strength (N) | Crush Load (N/100mm) | Bending Radius (mm) |
| 2-24F | 3.0 ± 0.15 | Short-term: 180; Long-term: 90 | Short-term: 500; Long-term: 150 | Static: 10D; Dynamic: 20D |
Selection Notes
Typically selected when high-density cabling environments require reduced cable outer diameter, improved airflow, and easier routing within fiber distribution frames, splice trays, or data center panels.
May not be appropriate for installations where mechanical robustness and handling margin are prioritized over density, such as rough field environments or locations with frequent re-termination and manual cable handling.
Application Details
- Efficient Installation: Reduces cabling space and time in high-density environments.
- Customizable for Various Needs: Options for different cable types, connector configurations, and colors.
- Enhanced Performance: Excellent repeatability and interchangeability ensure stable optical transmission.
Q1: What is the advantage of micro-fiber design?
Its small 3.0mm OD saves space, reduces cable congestion, and improves flexibility.
Q2: What connector options are available?
SC, LC, ST, and FC connectors can be pre-terminated.
Q3: What applications is this pigtail suitable for?
High-density data centers, telecommunication rooms, and enterprise networks.
Q4: What configurations are supported?
12-fiber and 24-fiber fanout designs.
Q5: Can the pigtails be customized?
Yes, fiber type, length, and connector polish can be customized.
