DESCRIPTION

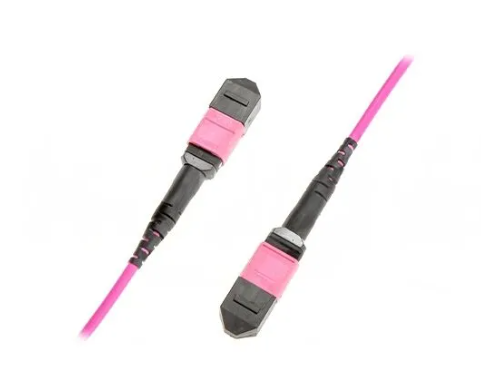

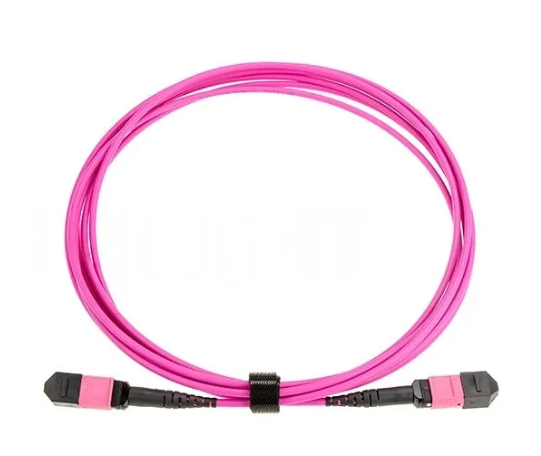

50/125μm MPO/MPO OM4 Mini 12 & 24 Fibers Optic Patch Cable
The MPO/MPO OM4 Fiber Optic Patch Cable is designed for high-speed, high-density fiber optic connectivity, supporting both 12-fiber and 24-fiber configurations in a compact 3.0mm cable. Ideal for data centers and high-performance networks, this OM4-rated patch cable enables rapid data transfer and reliable signal transmission over long distances. Its miniaturized diameter allows for efficient cable management, making it perfect for applications requiring space optimization.
Technical Specifications
| Connector | MPO to MPO | Jacket OD | 3.0mm |
| Fiber Mode | 50/125μm OM4 | Jacket Color | Magenta |
| Polish | UPC to UPC | Wavelength | 850/1300nm |
| Fiber Type | 12 & 24Fibers | Jacket Material | LSZH / PVC / OFNP/TPU |
| Insertion Loss(MPO) | ≤0.7 dB (Standard), ≤0.35 dB (Elite) | Return Loss | ≥20dB |
| Operating Temperature | -40~75°C | Storage Temperature | -45~85°C |
Key Features
- High-Density 12-Fiber and 24-Fiber Options: Provides flexible options for high-density networks, supporting efficient data transmission for large-scale setups.
- OM4 Performance: Delivers enhanced bandwidth for data transfer, optimized for 40G and 100G applications.
- Compact 3.0mm Diameter: Slim design allows for easier cable management in crowded or limited space environments, reducing clutter.
- Reliable MPO/MPO Connector Interface: High-performance MPO connectors ensure precise, low-loss connections compatible with industry standards.
- Durable Construction: Built with high-quality materials to resist bending, ensuring longevity and consistent performance.
Applications
- Data Centers: Ideal for high-speed data transmission in modern data centers, supporting dense installations and structured cabling.
- Enterprise Networks: Suitable for enterprise LAN and SAN environments that require reliable and fast data transfer rates.
- High-Speed Optical Networks: Optimized for 40G and 100G networks, ensuring efficient transmission for high-bandwidth applications.
- Telecommunications: Provides reliable connectivity in telecom networks where dense fiber distribution is essential
Installation and Maintenance
- Simple Installation: MPO connectors provide plug-and-play connectivity, simplifying setup in high-density network environments.
- Efficient Cable Management: The 3.0mm mini cable design aids in managing multiple connections within limited spaces, ideal for data centers.
- Low Maintenance: Built for durability and designed to resist wear, reducing maintenance frequency and costs.
FAQ
Q1: What is the main application of MPO/MPO OM4 patch cables?
They are primarily used in data centers and high-speed networks for parallel transmission, supporting applications such as 40G, 100G, and future 400G deployments.
Q2: What is the difference between 12-fiber and 24-fiber MPO cables?
12-fiber cables are commonly used for 40GBASE-SR4 and 100GBASE-SR4 links, while 24-fiber cables double the density, supporting higher-bandwidth connections and efficient trunk cabling.
Q3: Why choose OM4 fiber for MPO cables?
OM4 multimode fiber supports 100G transmission up to 150 meters and provides higher bandwidth (4700 MHz·km), ensuring reliable performance for high-speed, short-reach applications.
Q4: What advantages does the mini 3.0mm cable design provide?
The reduced diameter allows easier routing, better airflow, and space optimization in high-density patch panels and cable management systems.
Q5: How are MPO patch cables tested before shipment?
All MPO cables are factory tested for insertion loss, return loss, and polarity to guarantee compliance with IEC and Telcordia standards.
Q6: Can the MPO patch cable be customized?

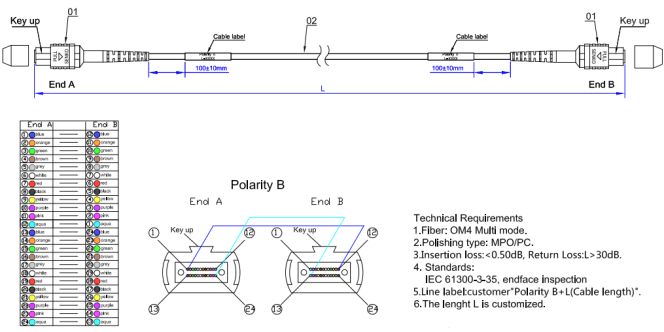

Yes. Fiber count (12/24), cable length, polarity type (A/B/C), jacket material, and connector housing color can all be customized according to project needs.
Q7: Is the cable suitable for indoor or outdoor use?
The standard 3.0mm version is for indoor high-density cabling. Outdoor or armored versions can be provided if required.
Q8: What is the typical delivery time?
Standard MPO patch cables are usually in stock, while customized assemblies typically require 5–10 working days.
