DESCRIPTION

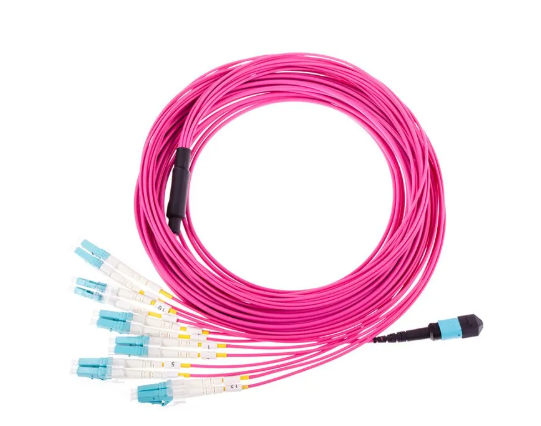

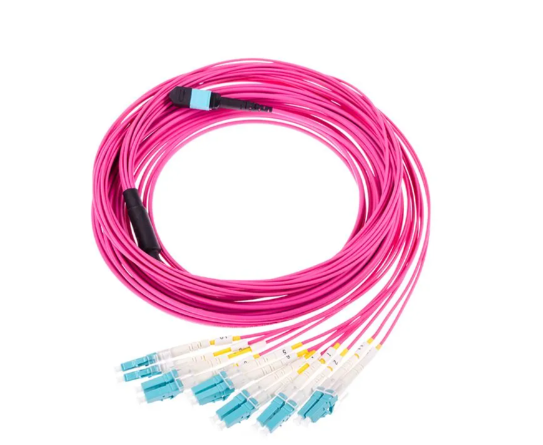

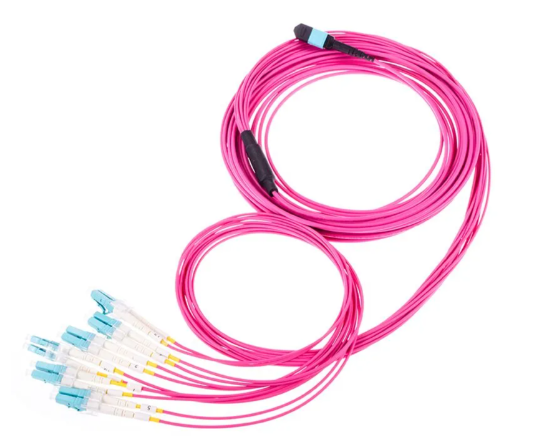

The MPO to LC UPC 6 Duplex OM4 12Fibers Breakout Fiber Patch Cable is a high-performance, low-loss solution for high-speed fiber optic networks. With OM4 multimode fiber, it supports applications like 40GbE and 100GbE Ethernet, offering optimal bandwidth and speed. The pre-terminated design with MPO to LC UPC connectors ensures quick and easy deployment, while the LSZH jacket makes it suitable for indoor use in network environments. The breakout cable design allows for 6 individual duplex LC connections, simplifying cable management and enhancing flexibility.
Product Specifications
| Specification | Details |
| Fiber Count | 12 Fibers (6 x Duplex) |
| Connector Type | MPO to LC UPC |
| Fiber Type | OM4 Multimode |
| Insertion Loss | MPO/MTP: ≤0.7 dB (Standard), ≤0.35 dB (Elite) |
| Cable Diameter | 3.0mm ± 0.2mm |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Operating Temperature | -20°C to +70°C |
| Bandwidth | 4700 MHz·km (OM4) |
| Maximum Distance | 300m for 40GbE |
| Compliance | RoHS, TIA/EIA-568-C.3, IEC 60794-2-50 |
| Maximum Pulling Tension | 150 N |
Feature Details
- MPO to LC UPC: This cable is designed to convert MPOconnectors to LC UPC connectors, making it ideal for high-density network environments.
- OM4 Multimode Fiber: With an optimized bandwidth capacity, OM4 fibersupports high-speed applications up to 100GbE, ensuring reliability and performance over long distances.
- Breakout Cable Design: The 6 duplex LC connectorsare ideal for simplifying cable management, reducing clutter, and enabling individual fiber connections for each core.
- Pre-Terminated for Quick Deployment: The pre-terminated nature of the cable reduces installation time and minimizes user errors, ensuring a hassle-free setup process.
- Low Insertion Loss: The cable maintains excellent signal integrity with low insertion loss, ensuring high performance even over longer distances.
- Durable LSZH Jacket: The LSZH jacketensures safety in indoor environments, offering flame-retardant and low-smoke
Application Details
- Data Centers: Used to connect high-density equipment, providing efficient, low-latency, and high-speed data transmission within racks and across long distances.
- Telecommunications Networks: The cable is well-suited for telecom infrastructures, ensuring reliable, fast connections between switches, routers, and servers.
- FTTH/FTTP: Perfect for delivering fast, high-speed fiber optic internet directly to homes or businesses, enhancing broadband capabilities.
- High-Speed Ethernet Networks: Ideal for supporting 40GbEand 100GbE Ethernet, ensuring minimal signal loss and high-throughput performance.
- Network Backbone: Serves as an efficient connection solution for the backbone network, interconnecting critical infrastructure over large distances.
FAQ
Q1: What is the configuration of this breakout cable?
It converts 12 fibers from one MPO connector into 6 duplex LC UPC connectors.
Q2: What applications does it support?
It is optimized for 40GbE/100GbE Ethernet, telecom backbones, and high-performance computing networks.
Q3: What type of fiber is used?
OM4 multimode, offering low attenuation and high bandwidth.
Q4: Is this cable suitable for indoor use?
Yes, the LSZH jacket ensures safety in data centers and enterprise facilities.
Q5: Can polarity be customized?
Yes, Type A, B, and C polarity options are available based on network needs.
