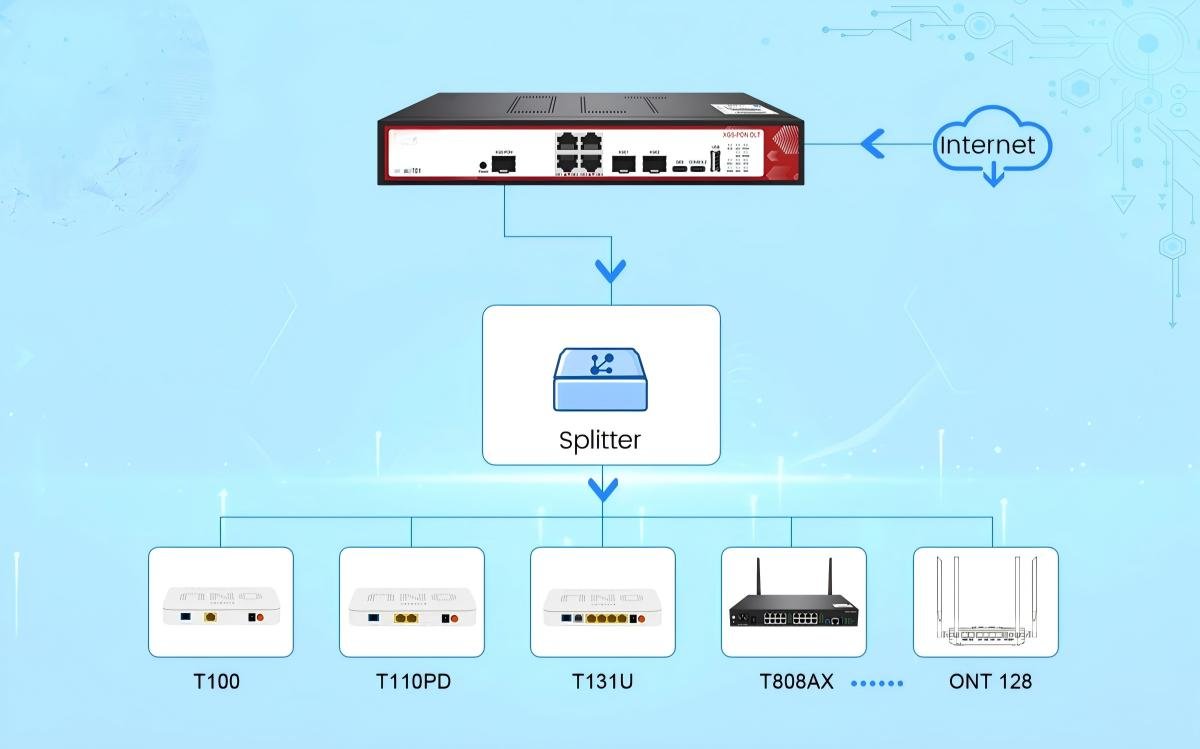

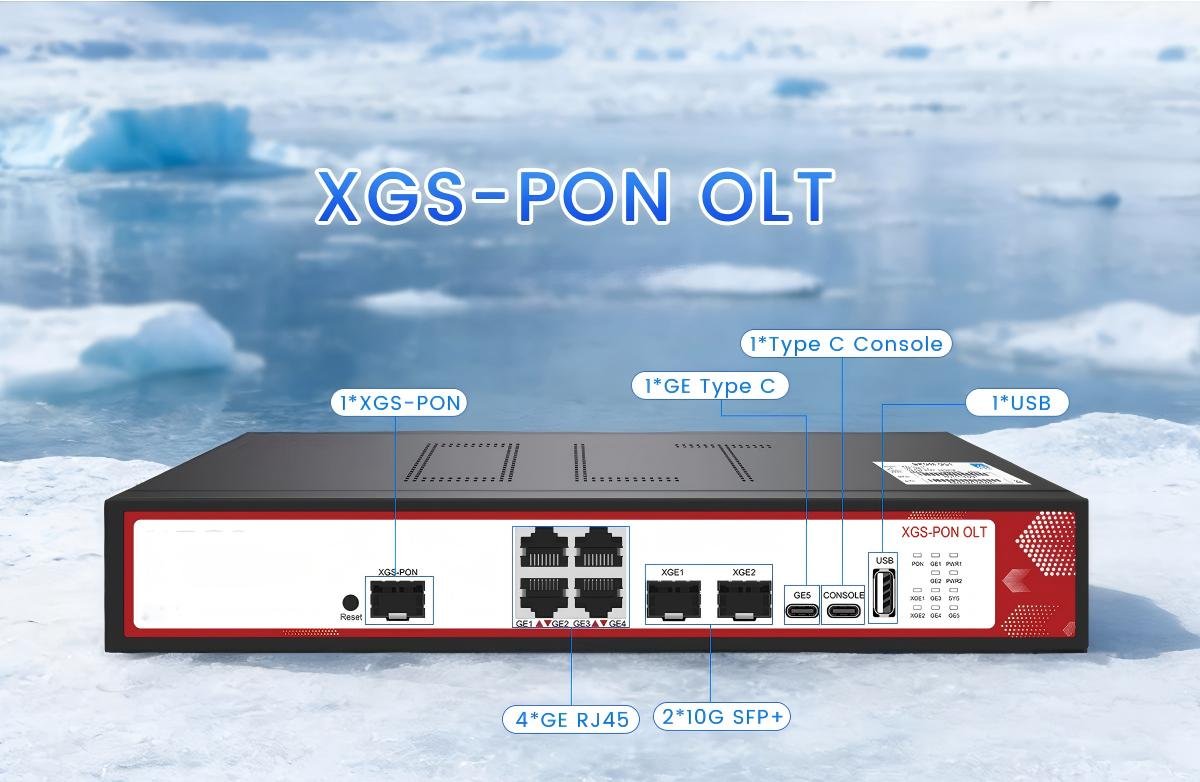

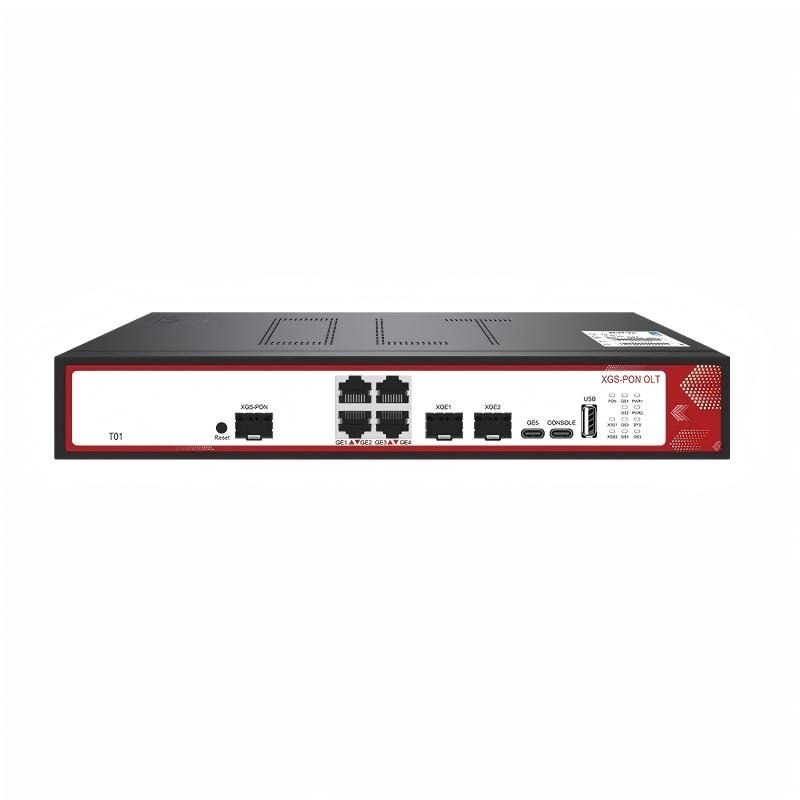

T01 is a box type XGS-PON/XG-PON OLT. The system has good stability and high reliability. Supports multiple management methods such as CLI, WEB, and SNMP. The product provides 1*XGS-PON/XG-PON ports, 4″ GE RJ45, 1*GE type-c uplink ports and 2*10G SFP+ Slots. Users can quickly deploy, configure, and monitor the device via the cloud management, greatly reducing labor and time costs during network construction. Suitable for sparsely populated and budget limited areas, smart industrial parks, commercial buildings, FTTR, etc. Each PON port supports a maximum split ratio of 1:128, supports up to 128 users, 1U height is convenient for installation and maintenance. It is an excellent choice for operators to migrate from GPON to 10G PON.

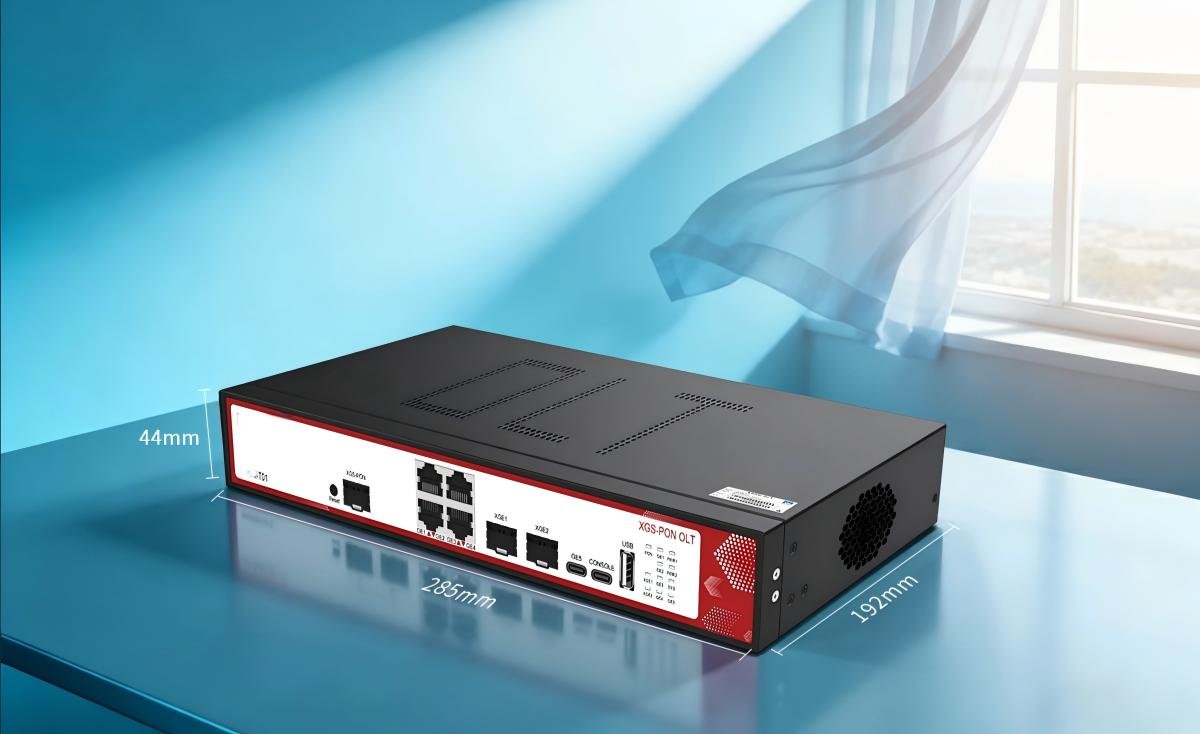

13-inch design flexible installation
13-inch compact chassis, suitable for desktop placement, hallway installation, and small cabinet mounting in low-voltage electrical shafts, 1U standard height.
XGS pure 10 Gigabit interface
Meets the telecommunications equipment requirements of gigabit broadband, satisfies the needs of next-generation home and commercial applications, and is tailor-made for high-bandwidth application scenarios such as 4K/8K/VR/live streaming.
Using Type-C Console Port
Using a Type-C Console, device configuration management can be solved in one cable.

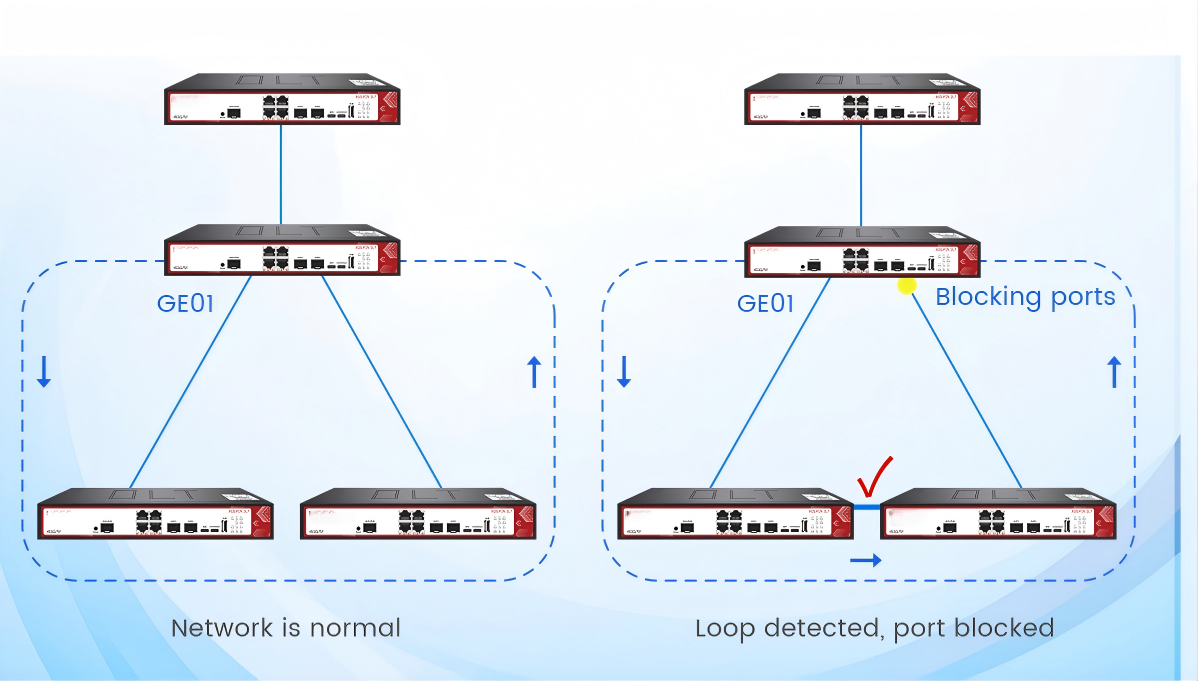

Loopback Detection
Equipped with loop detection function, automatic release mechanism, and achieving intelligent self-healing of the network
1. When there is a loop in the network, automatically block the loop port to avoid the problem of the entire network being paralyzed due to broadcast storms.
2. When the loop in the network is released, the port automatically returns from a blocked state to a normal state, and the port resumes normal communication.

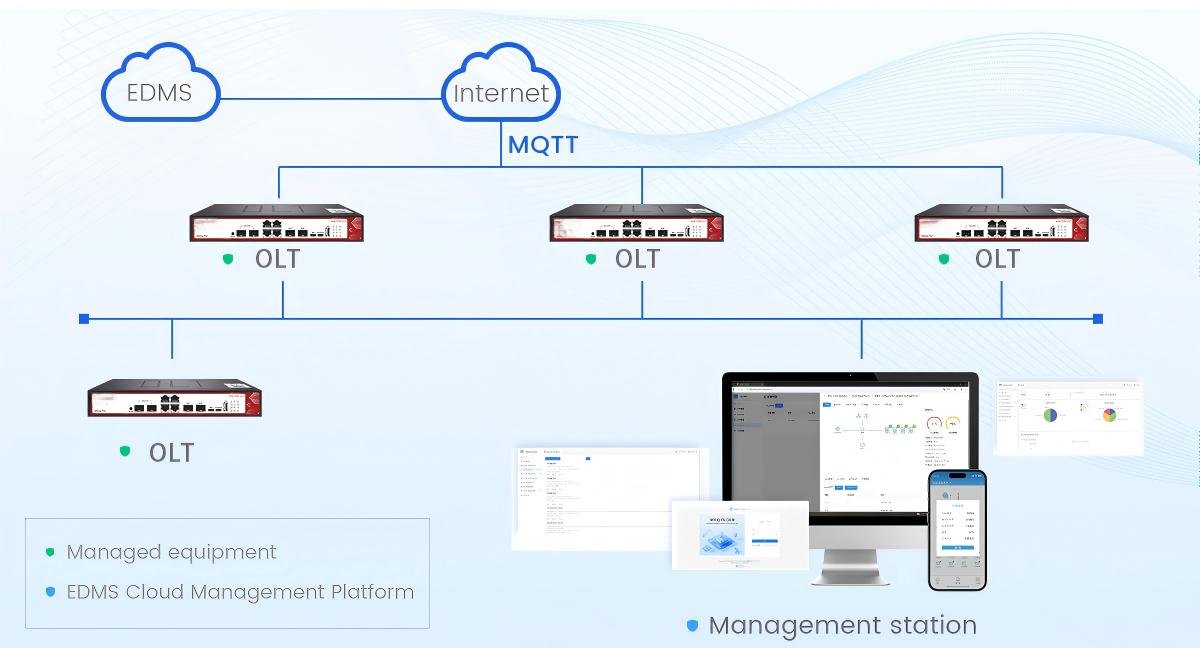

Supports EDMS cloud
platform management
Built-in MQTT function module, supporting connectivity to the EDMS cloud management platform via MQTT/SNMP protocols. This enables unified centralized device management and facilitates remote operation and maintenance.
