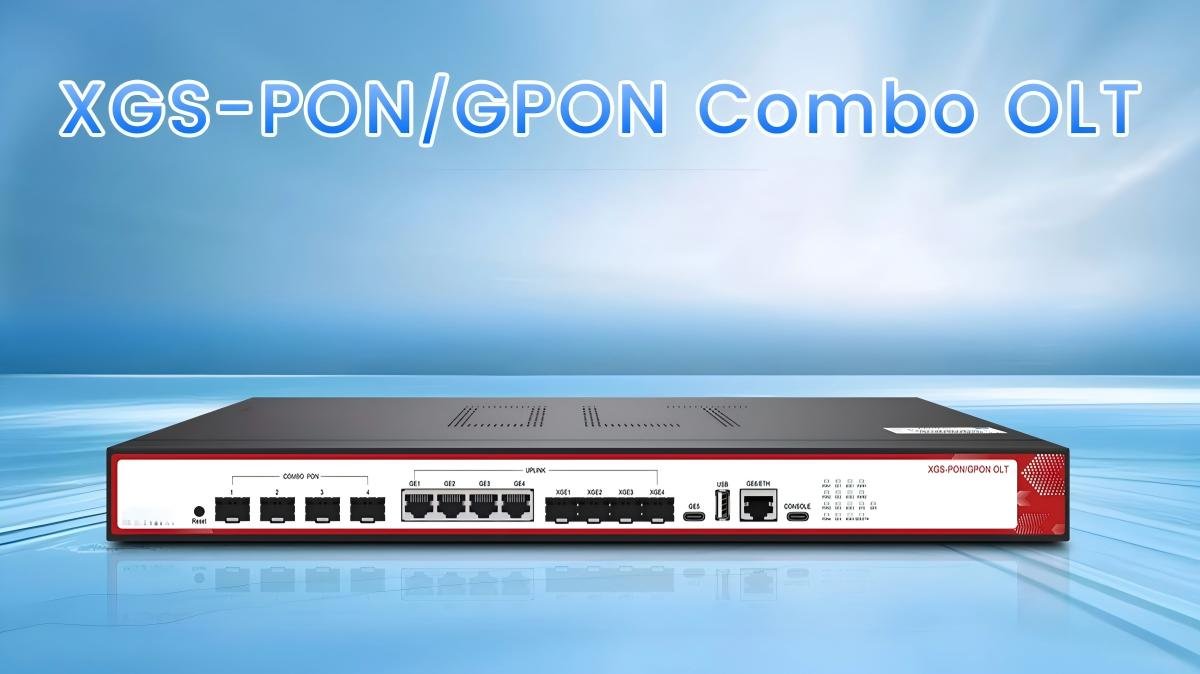

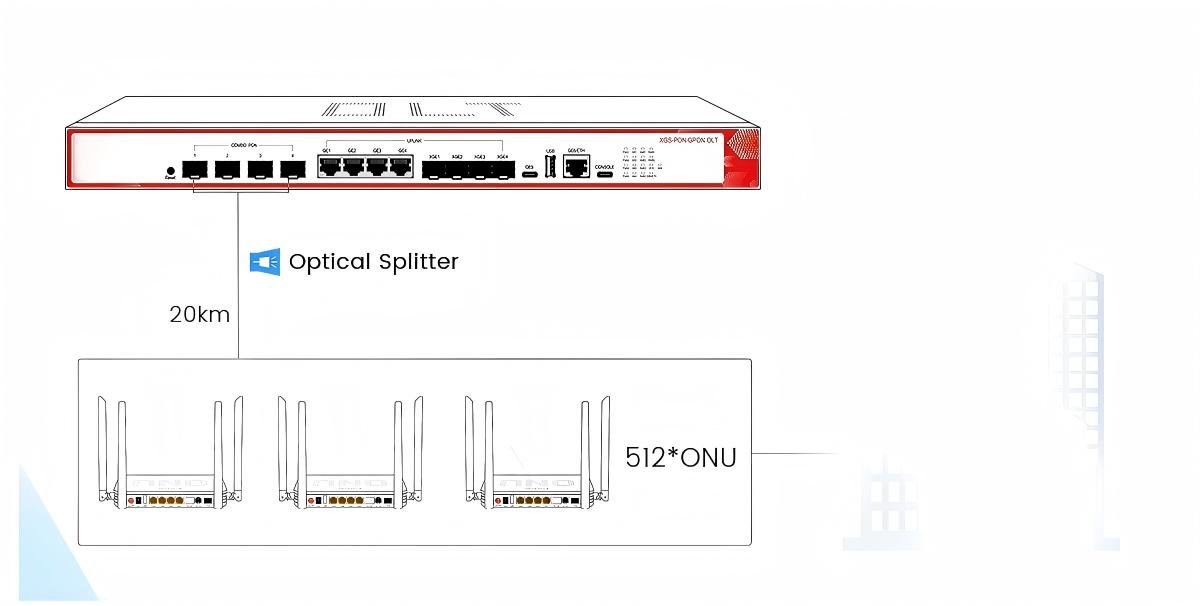

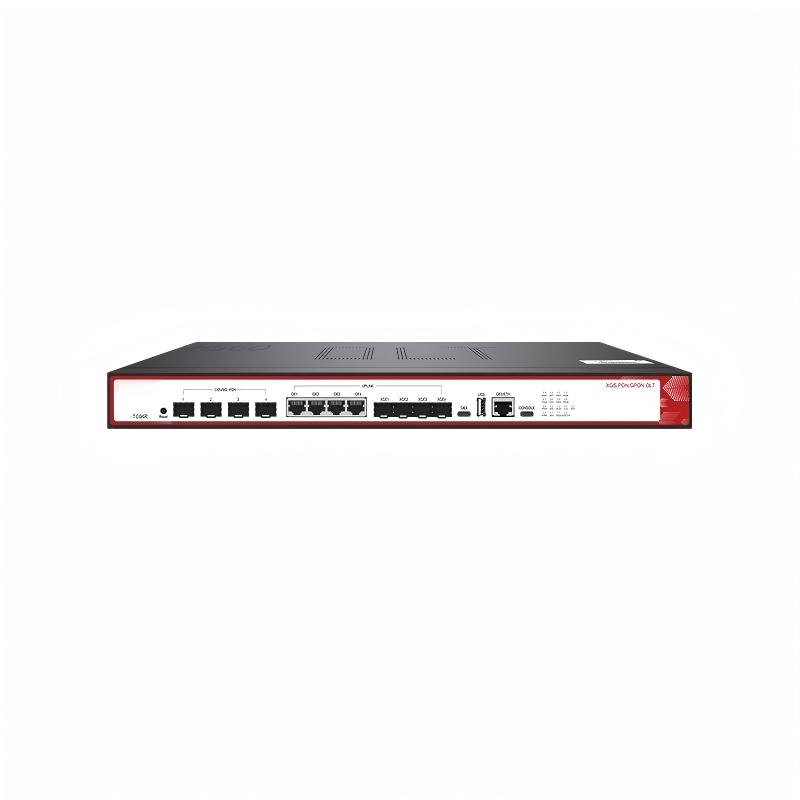

TC04R is a box type XGSPON/GPON Combo OLT. The system has good stability and high reliability. Supports multiple management methods such as CLl, WEB, and SNMP. The product provides 4 XGSPON/XGPON/GPON ports, 4*GE RJ45 uplink ports and 4*10G SFP+ Slots. Users can quickly deploy, configure, and monitor the device via the cloud management, greatly reducing labor and time costs during network construction. Suitable for sparsely populated and budget limited areas, smart industrial parks, commercial buildings, FTTR, etc. Each PON port supports a maximum split ratio of 1:128, supports up to 512 users, 1U height is convenient for installation and maintenance. lt is an excellent choice for operators to migrate from GPON to 10G PON.
Migrate to 10G Era – Smooth Evolution to XG(S)-PON Network.
Terminals coexist for a long time
and can be upgraded as needed

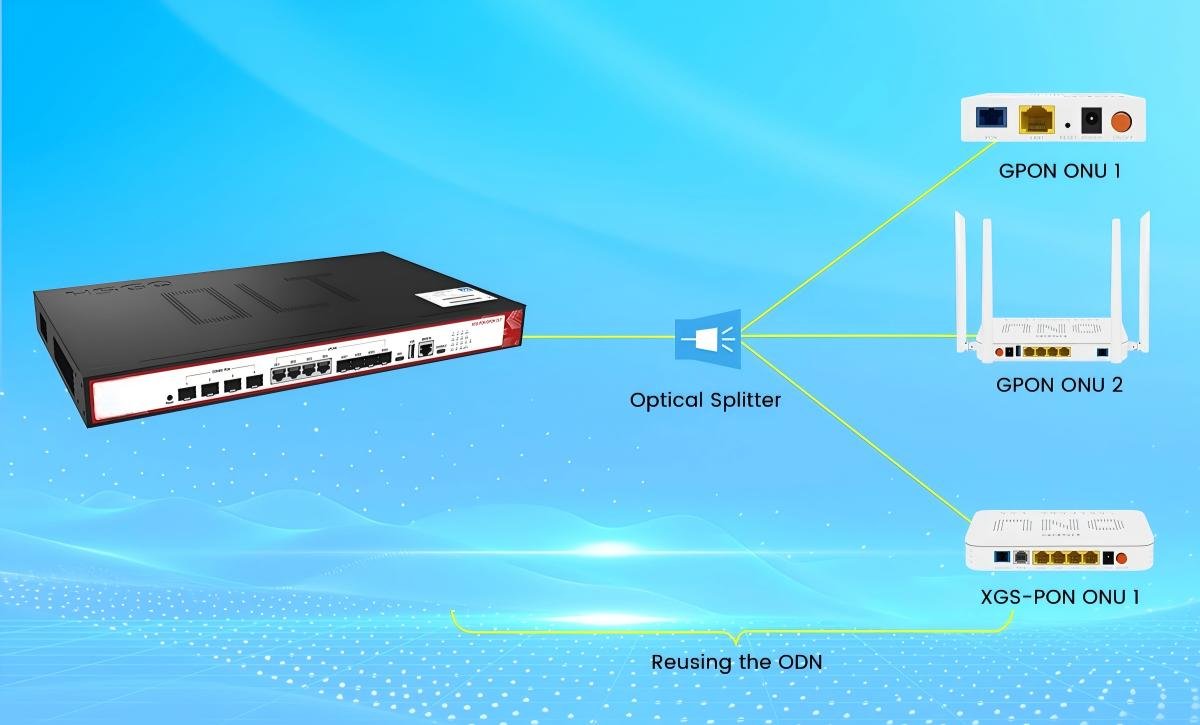

During XG(S)-PON deployment, network operators typically build upon the existing GPON infrastructure. By reusing the current ODN network and gradually replacing the user-side ONU devices, to achieve a seamless evolution to XG(S)-PON networks.

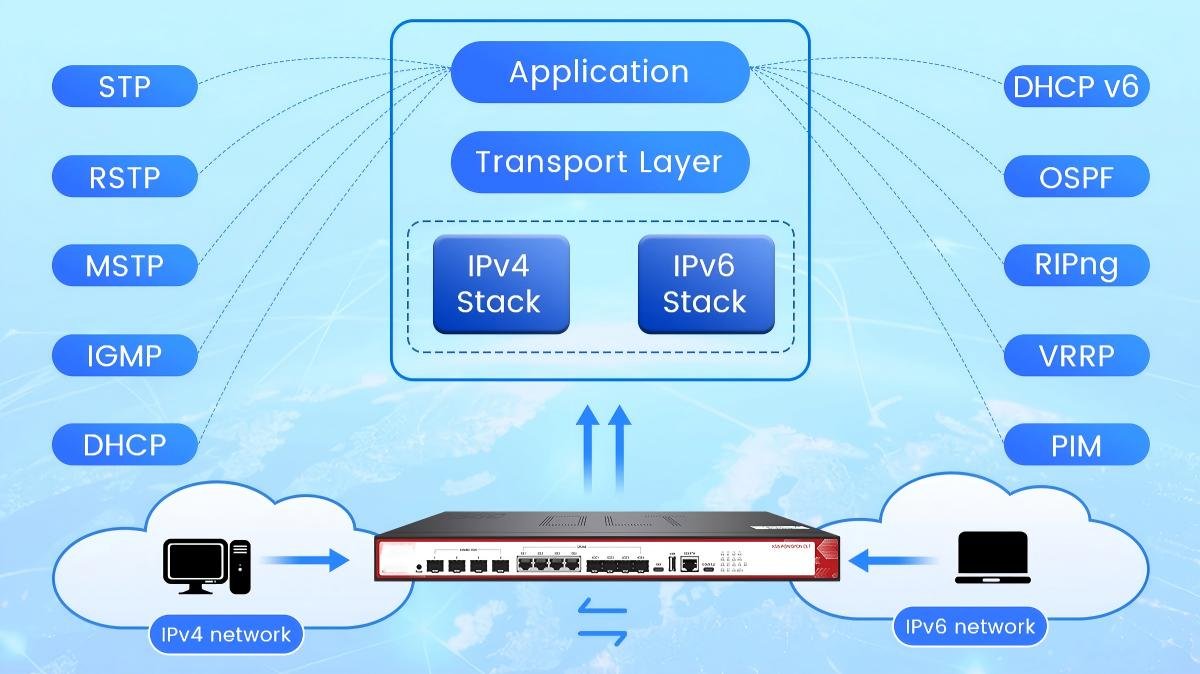

Support multiple protocols
Support STP/RSTP/MSTP/IGMP/DHCP/DHCP v6/LLDP/Static Route/OSPF/RIP/VRRP/PIM, etc.
Supports batch management for ONTs
It supports batch configuration, restart, and upgrade of ONTs, reducing operational costs and enhancing network efficiency.

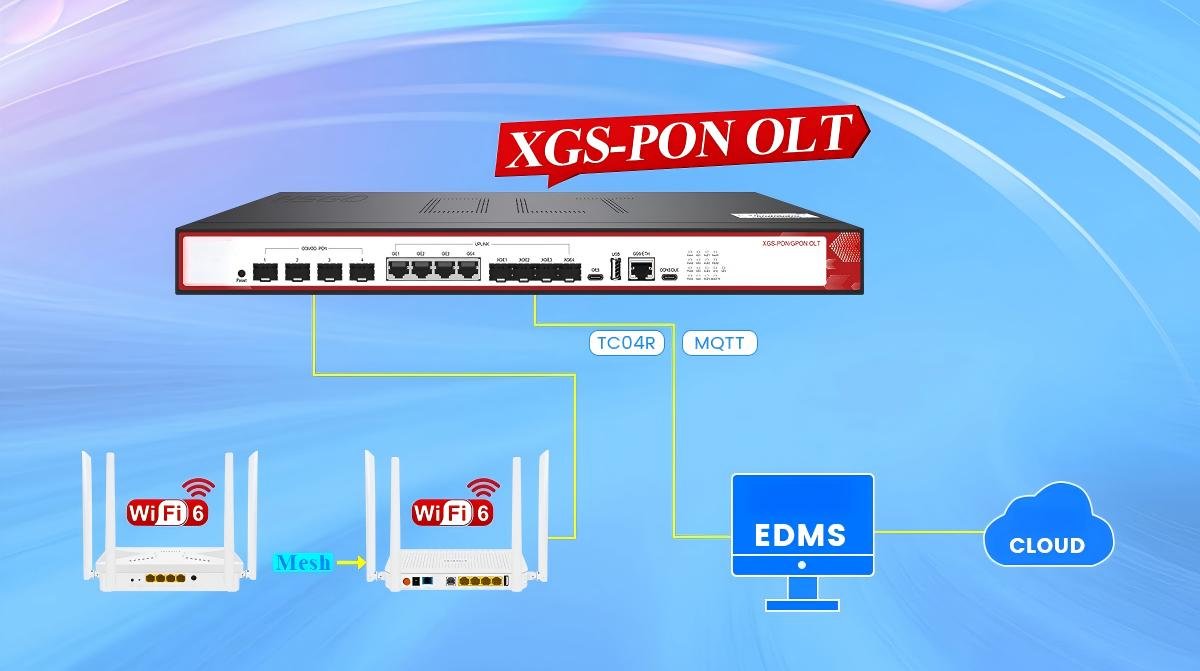

EDMS Cloud Management Platform
The system features a built-in MQTT module and supports connectivity to the EDMS cloud management platform via MQTT/SNMP protocols, enabling unified centralized device management and streamlined remote maintenance.
Multi-scenario FTTX solution abundant terminal types to choose from
