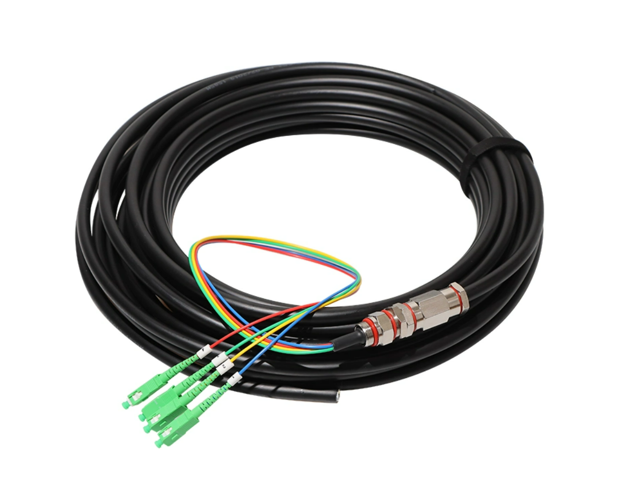

2–12 Fiber Armored Waterproof Pre-Terminated Fiber Optic Pigtail – for Outdoor Network Deployment

The 2-12F Armored Waterproof Fiber Pigtail is specifically designed for outdoor optical connections in harsh environments. Encased in a robust PE jacket and reinforced with stainless steel armor, it provides superior durability and weather resistance. The pigtail supports a wide range of applications, including FTTH deployments, industrial communication systems, and outdoor optical transmitter connections.

With options for single-mode and multi-mode fibers, it delivers stable and efficient performance even in extreme conditions. The pigtail’s customizable design ensures compatibility with diverse network requirements.

Engineering Suitability & Selection Boundaries

When This Product Is the Right Choice

• Typically selected for outdoor or semi-exposed deployments where fiber terminations must withstand moisture, UV exposure, and mechanical stress.

• Commonly used when projects require factory-terminated fibers to reduce on-site splicing time and minimize installation variability.

• Suitable for environments with rodent risk, crushing force, or vibration, where standard indoor pigtails may fail prematurely.

• Often applied in FTTH access points, outdoor cabinets, base stations, or industrial enclosures where IP68-level sealing is required.

When This Product May NOT Be Suitable

• May not be appropriate for high-density indoor ODFs or patch panels where armored structures and PE jackets limit bend management and space efficiency.

• Not typically chosen for short indoor interconnections where lightweight, non-armored pigtails are sufficient and easier to route.

• May be unsuitable in applications requiring frequent reconnection or tight bend routing, as armored designs prioritize protection over flexibility.

Common Selection Mistakes to Avoid

• Treating armored waterproof pigtails as direct replacements for standard indoor pigtails without considering cable diameter and routing constraints.

• Selecting higher fiber counts without evaluating termination space and strain relief capacity inside closures or cabinets.

• Over-specifying armored IP68 pigtails in fully protected indoor environments, leading to unnecessary cost and installation complexity.

1. Waterproof and Durable:

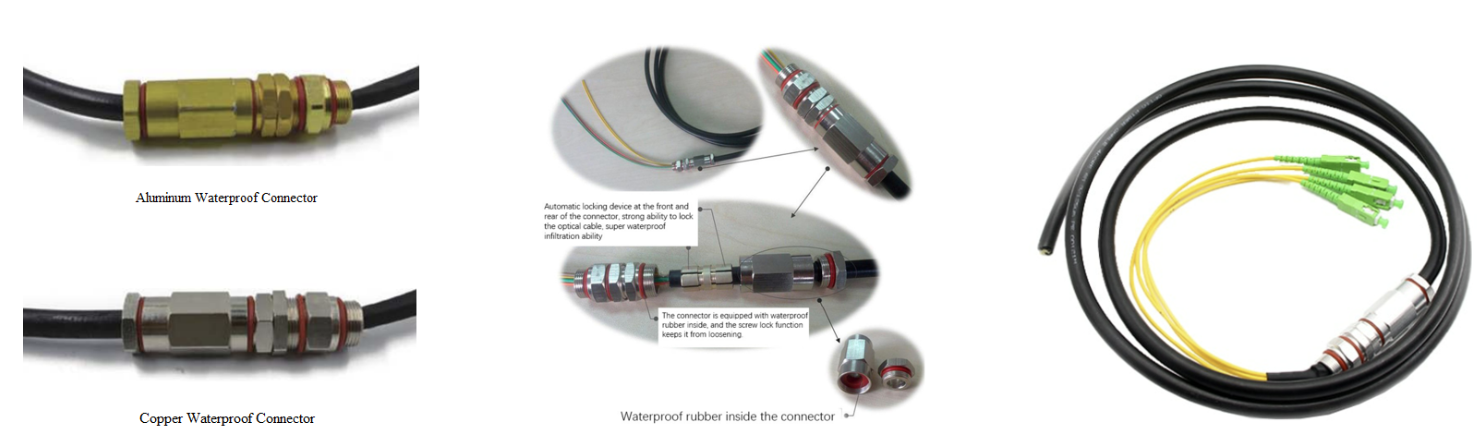

   • Stainless steel reinforced cable withstands harsh environmental factors like rain, UV, and corrosive substances.
   • PE outer jacket adds an extra layer of protection against physical and chemical damage.
2. High Performance:
   • Low insertion loss (≤ 0.3dB) ensures reliable signal quality.
   • Excellent return loss (≥ 50dB UPC / ≥ 60dB APC) reduces signal reflection.
3. Wide Compatibility:
   • Supports SC, LC, FC, and ST connectors for flexible installations.
   • Available in simplex or duplex configurations for single-mode and multi-mode networks.
4. Easy Deployment:
   • Factory-terminated and tested for quick plug-and-play installation.
   • Suitable for pole-mount, wall-mount, or buried applications.

1. Outdoor Optical Connections:Provides reliable connectivity for remote locations such as telecom towers and outdoor cabinets.
2. FTTH Networks:Ensures robust fiber optic terminations for fiber-to-the-home applications.
3. Industrial Use:Resistant to environmental stress, suitable for oilfield, mining, and manufacturing setups.
4. Surveillance Systems:Enhances data and video transmission in CCTV networks operating in outdoor environments.

Q1: What is a pre-terminated armored waterproof fiber optic pigtail?
It is a factory-terminated cable with 2–12 fibers, armored for mechanical protection and waterproof for outdoor or harsh environments, eliminating the need for on-site splicing.

Q2: What advantages does the armored design provide?
The armored layer protects the fibers from rodent bites, crushing, and mechanical damage, ensuring durability in outdoor or industrial installations.

Q3: How many fibers can this pigtail support?
It is available from 2 to 12 fibers, making it suitable for both small-capacity and medium-capacity network terminations.

Q4: What connector types are available for this pigtail?
SC, LC, FC, and ST connectors can be pre-terminated based on project needs, with options for UPC or APC polish.

Q5: Is the pigtail suitable for outdoor use?
Yes. The waterproof design, armored protection, and PE jacket make it ideal for direct outdoor burial, ducts, or harsh-weather environments.

Q6: How is optical performance guaranteed?
Each pigtail undergoes 100% testing for insertion loss (≤0.3 dB typical) and return loss (≥50 dB UPC or ≥60 dB APC) to meet IEC/Telcordia standards.

Q7: Can the length and fiber count be customized?
Yes. Cable length, fiber count (2–12F), jacket type, connector type, and labeling can all be customized.

Q8: Where is this armored waterproof pigtail commonly used?
It is widely used in FTTH, outdoor telecom cabinets, base stations, and industrial networks requiring high protection and fast deployment.
