DESCRIPTION

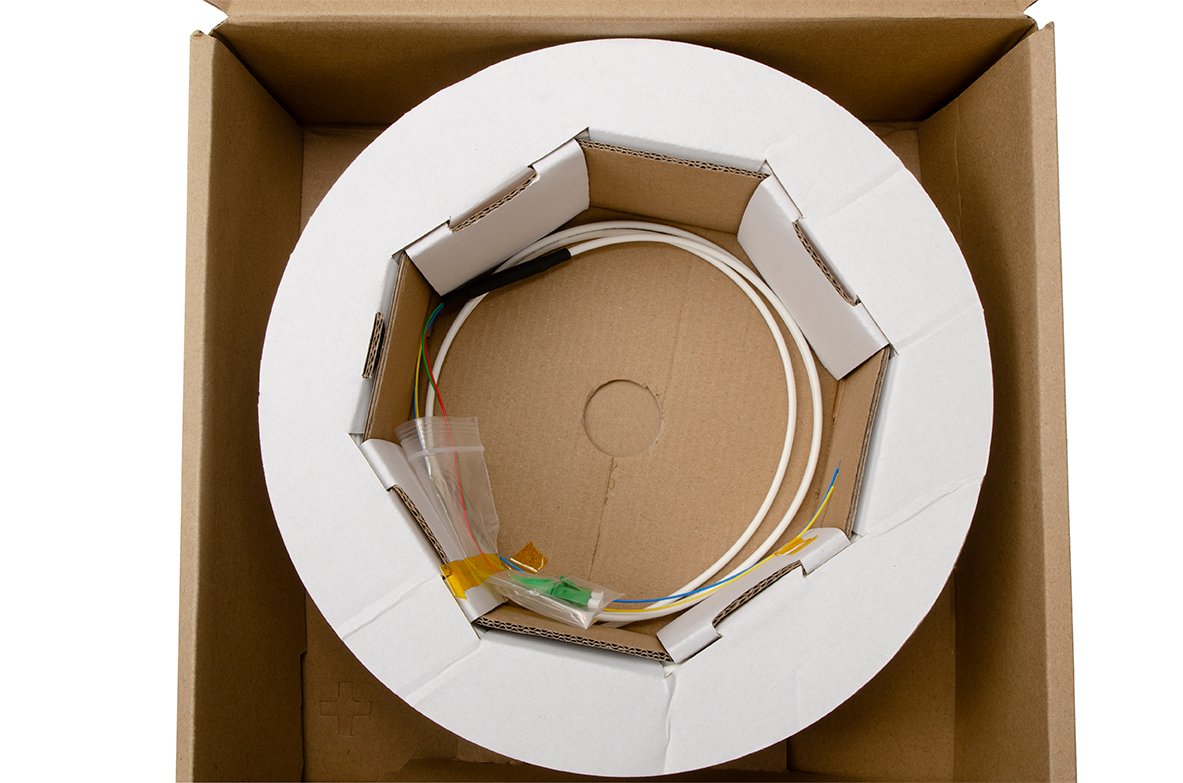

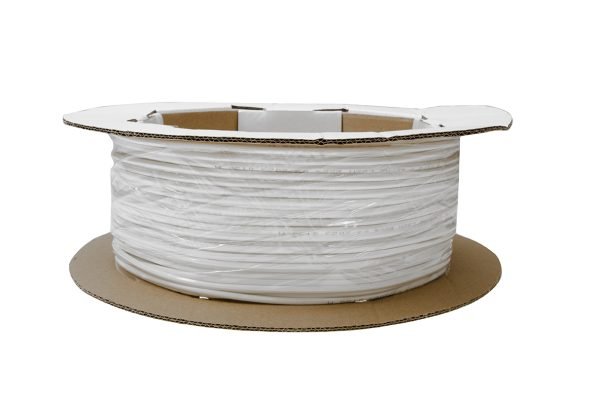

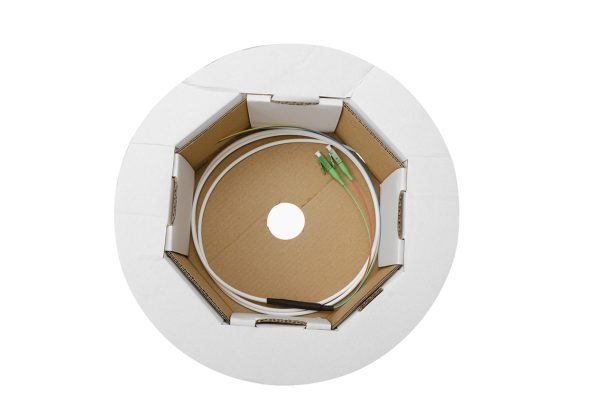

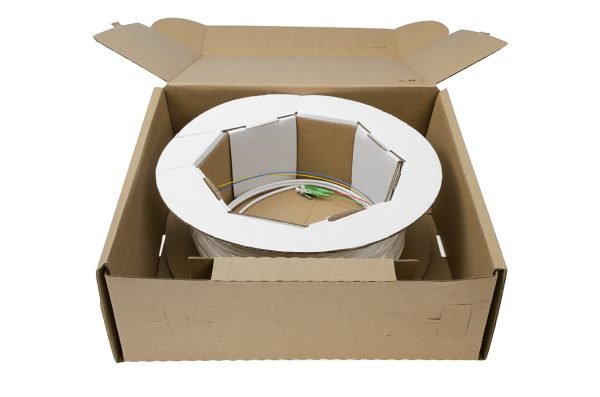

The 2-4F Pre-Terminated LC/APC 3.0mm Fiber Optic Pigtail offers a streamlined solution for high-performance fiber optic networks. Engineered with factory-polished LC/APC connectors, this pigtail guarantees low insertion loss and high return loss, making it ideal for precise and stable fiber terminations.
Its rugged 3.0mm cable is built for durability, ensuring reliable operation in a variety of environments, from data centers to residential FTTH applications. Designed for easy installation, the pre-terminated pigtail eliminates the need for field splicing, saving both time and labor costs.
- Pre-Polished LC/APC Connectors
- Ensures consistent, high-quality terminations with low insertion loss and high return loss.
- High-Grade Fiber Cable
- Built with G657A2 fiber, offering excellent bending performance and durability.
- Ruggedized Jacket
- The 3.0mm LSZH jacket provides protection against physical and environmental stresses.
- Versatile Applications
- Suitable for single-mode fiber systems in various network environments.
| Parameter | Specification |
| Connector Type | LC/APC |
| Fiber Count | 2-4 Fibers |
| Cable Diameter | 3.0mm |
| Fiber Type | Single-mode (G657A2) |
| Insertion Loss | ≤ 0.3dB |
| Return Loss | ≥ 55dB |
| Operating Temperature | -40°C to +75°C |
| Storage Temperature | -40°C to +85°C |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Cable Length | Customizable |
Selection Notes
Typically selected when FTTH or access network deployments require fast, consistent terminations and on-site splicing time needs to be minimized, especially in distribution boxes or customer premises.
May not be appropriate for high-density indoor ODFs or scenarios where bare-fiber splicing trays are already standardized and connectorized pigtails add unnecessary bulk.
- FTTH Connections: Used for terminating fibers in residential and commercial fiber-to-the-home setups.
- Telecom Networks: Ensures seamless data transmission across backbone and access networks.
- Data Center Cabling: Enhances connectivity in high-density server environments.
- LAN & WAN Systems: Offers robust and reliable connections for enterprise and campus networks.
Q1: How many fibers does this pigtail support?
It is available in 2-fiber and 4-fiber configurations.
Q2: What connector type is used?
Factory-polished LC/APC connectors for precise alignment.
Q3: What are the main performance benefits?
Low insertion loss and high return loss for stable fiber connections.
Q4: What jacket size is applied?
A rugged 3.0mm cable for enhanced durability.
Q5: Is it easy to install?
Yes, pre-terminated connector end reduces on-site termination work and speeds up installation.
