DESCRIPTION

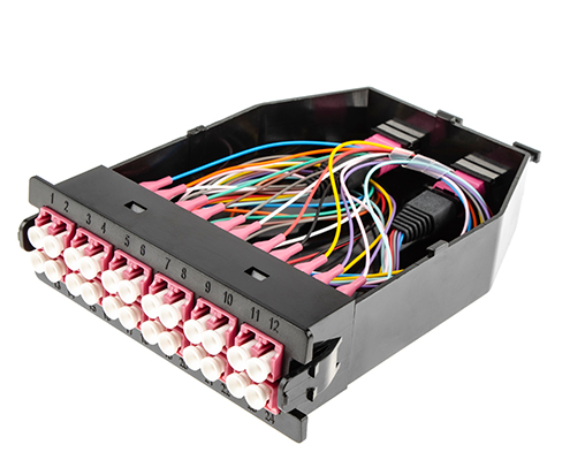

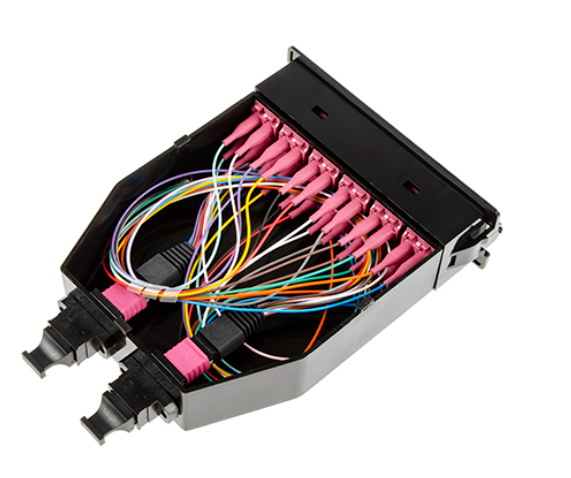

This 24 Fiber MTP/MPO to LC Cassette is engineered for high-density networking systems that require rapid deployment, low-loss performance, and scalability. Housed in a rugged ABS+PC enclosure, it integrates dual 12-fiber MTP/MPO connectors at the rear and twelve LC duplex adapters at the front, enabling seamless duplex interconnections. Whether you’re scaling up a hyperscale data center or building out a future-ready enterprise network, this pre-terminated module simplifies cable management, reduces downtime, and ensures optimal return on investment.
Feature Details
- High Compatibility: Supports a wide range of MTP/MPO-LC duplex configurations.
- Built-in Harness: Includes two pre-installed 12F MPO-LC fanout cables for clean and accurate routing.
- Flexible Deployment: Easily fits into 1U/2U/4U modular panels for scalability in any network size.
- Optical Integrity: All cassettes are tested for insertion loss and return loss before delivery.
- Custom Options: Choose from various fiber grades (OM3/OM4/OM5/OS2), connector genders, and harness lengths.
Product Specifications
| Item | Details |
| Fiber Count | 24 Fibers (2x MPO/MTP 12F) |
| Connector Type (Front) | 12x LC Duplex (DLC) |
| Connector Type (Rear) | 2x MPO/MTP (Male or Female, optional pins) |
| Fiber Type | SM (OS2) / MM (OM3, OM4, OM5) |
| Material | ABS+PC Enclosure |
| Polarity | Type A, B, or C (Customizable) |
| Form Factor | MPO/MTP cassette module for 1U/2U/4U modular panels (module size customizable) |
| Operating Temperature | -20°C ~ +60°C |
| Installation | Plug-and-play, tool-free mounting |
Application Details
- Data Centers: Perfect for spine-leaf architectures, switch aggregation zones, and end-of-row deployments, supporting rapid MACs (Moves, Adds, Changes).
- Telecom Networks: Centralized cable management for core-to-access layers across metro and national backbones.
- Enterprise Cabling: Ideal for horizontal and backbone installations in intelligent buildings and enterprise campuses.
- FTTx Projects: Delivers reliable high-bandwidth connections from central offices to customer premises in a compact, easy-to-manage form.
FAQ
Q1: What is a 24 Fiber MTP/MPO to LC Cassette used for?
A1: It’s a pre-terminated fiber module that connects MTP/MPO trunk cables to LC duplex patch cords for high-density optical networks.
Q2: How many fibers does it support?
A2: 24 fibers in total — two 12-core MTP/MPO connectors on the rear and twelve LC duplex ports on the front.
Q3: What fiber types are available?
A3: Singlemode (OS2) and Multimode (OM3, OM4, OM5) versions are available.
Q4: What is the benefit of a pre-terminated cassette?
A4: It reduces on-site installation time and risk by eliminating field splicing and polishing, ensuring consistent optical performance.
Q5: Is it compatible with standard rack mount panels?
A5: Yes — fits into 1U/2U/4U modular panels and high-density chassis.
Q6: What are the supported polarities?
A6: Type A, B, and C configurations can be customized upon request.
Q7: Where is it commonly used?
A7: In data centers, telecom rooms, FTTx deployments, and enterprise backbone infrastructure.
Q8: Can it be customized for specific fiber grades or lengths?
A8: Yes — fiber type, connector gender, and harness length are customizable to match network design requirements
