DESCRIPTION

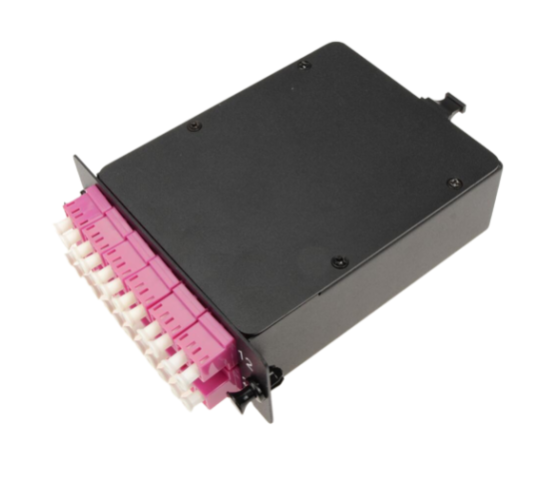

The 24 Fibers Fully Loaded MPO/MTP Cassette is an efficient and high-performance solution for managing fiber connections in high-density environments. Designed for seamless transitions between MPO/MTP connectors and LC/SC discrete adapters, this module enhances system flexibility and ease of use. It supports both multimode and single-mode applications, making it a versatile choice for data centers, telecommunications, and LAN/WAN systems.
Feature Details
- High-Quality Construction: Cold rolled steel housing with surface coating for corrosion resistance.
- Dual Adapter Support: Features LC or SC adapters on the front panel and MPO/MTP adapters on the rear, enabling efficient fiber connections in diverse setups.
- Upgrade-Friendly Design: MPO faceplates can be upgraded without significant downtime, ensuring scalability for growing network demands.
- User-Friendly Port Marking: Each port is clearly labeled for hassle-free identification and management.
- Effortless Installation: Quick installation process with flexible configurations, simplifying maintenance and deployment.
Product Specifications
| Product Name | 24 Fiber Fully Loaded MPO/MTP Cassette |
|---|---|
| Front Adapter Type | LC or SC |
| Rear Connector Type | MPO/MTP |
| Fiber Count | 24 fibers (2 × 12F MPO/MTP) |
| Fiber Type | Single-mode: OS2 (OS1 optional); Multimode: OM1, OM2, OM3, OM4 |
| Material | Cold Rolled Steel |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Supported Fiber Cable Type | 250 µm ribbon fiber, ribbon cable, bundle fiber optic cable |
| MPO/MTP Insertion Loss | Single-mode: ≤0.75 dB (Standard), ≤0.35 dB (Low Loss) Multimode: ≤0.50 dB (Standard), ≤0.35 dB (Low Loss) |
| LC/SC Insertion Loss | Single-mode: ≤0.20 dB Multimode: ≤0.20 dB |
| MPO/MTP Return Loss | Single-mode: ≥60 dB Multimode: ≥35 dB |
| LC/SC Return Loss | Single-mode: ≥60 dB Multimode: ≥35 dB |
Application Details
- Data Centers: Optimized for high-density fiber connections and scalable infrastructure.
- Telecom Networks: Provides reliable performance in critical communication systems.
- LAN/WAN Systems: Supports structured cabling for enterprise networks.
- Broadband and CATV: Ideal for fast, efficient fiber management in broadband setups.
- High-Density Fiber Management: Enables efficient use of space in patch panels.
FAQ
Q1: What is a 24 Core Fully Loaded MPO/MTP Cassette?
A1: It’s a pre-assembled fiber module integrating LC/SC adapters in front and MPO/MTP connectors at the back for efficient high-density optical management.
Q2: What applications does it support?
A2: It’s suitable for data centers, telecom networks, LAN/WAN systems, and broadband/CATV environments.
Q3: What fiber types are available?
A3: Supports both Singlemode (OS1/OS2) and Multimode (OM1–OM4) fiber cables.
Q4: What materials are used in its construction?
A4: Made from engineering plastics and aluminum alloy with an electrostatic spray finish for strength and corrosion resistance.
Q5: What is the typical insertion and return loss?
A5:
MPO/MTP: IL ≤0.75 dB (Standard) / ≤0.35 dB (Low Loss); RL ≥60 dB (SM), ≥35 dB (MM)
LC/SC: IL ≤0.2 dB; RL ≥60 dB (SM), ≥35 dB (MM)
Q6: Can the MPO faceplate be upgraded?
A6: Yes — the faceplate is designed for quick replacement and upgrade without downtime.
Q7: What is the operating temperature range?
A7: From -20°C to +60°C (storage: -40°C to +70°C).
Q8: Where is this cassette commonly used?
A8: In 19” patch panels, modular enclosures, and high-density optical racks for structured cabling systems.
