DESCRIPTION

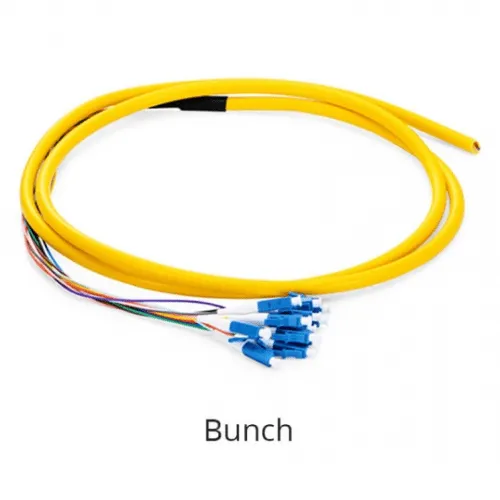

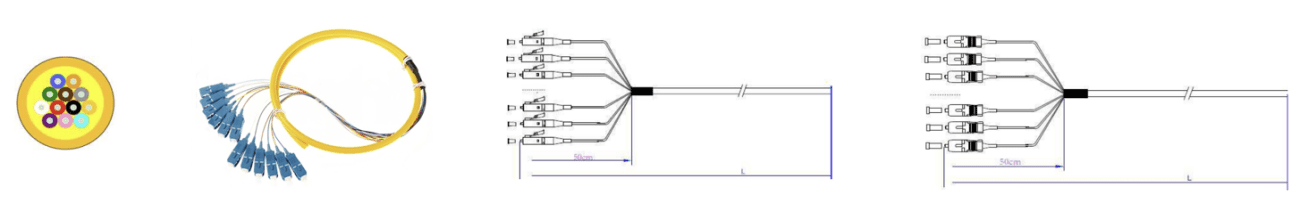

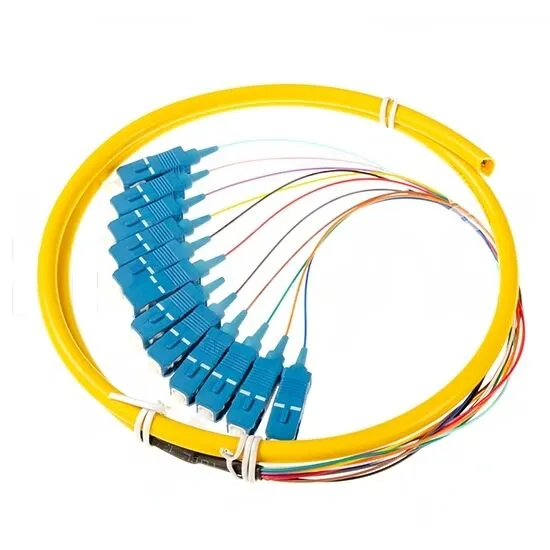

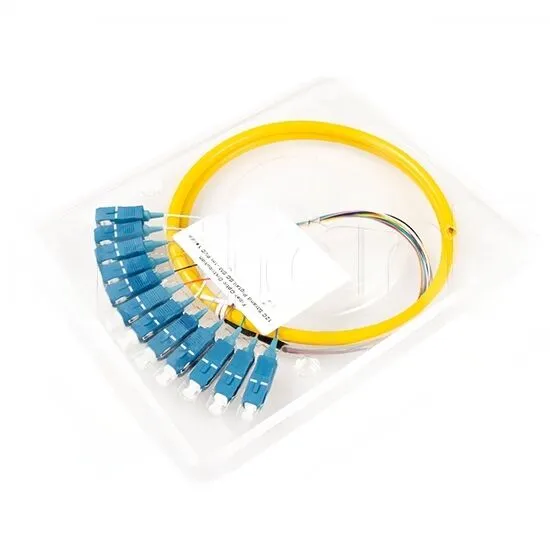

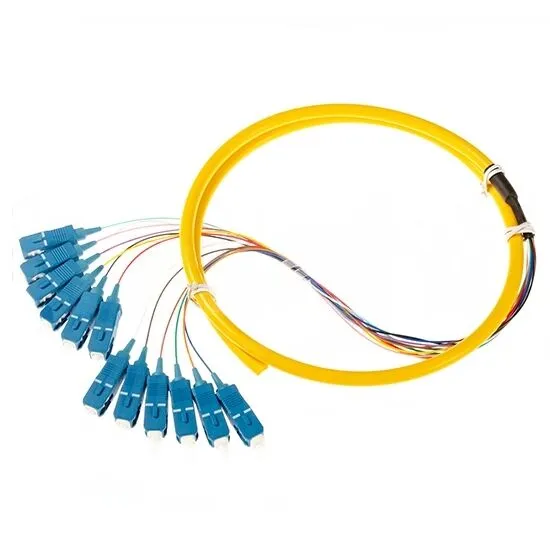

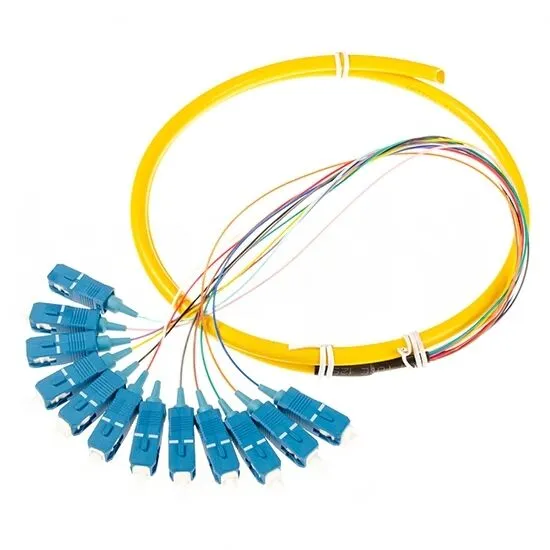

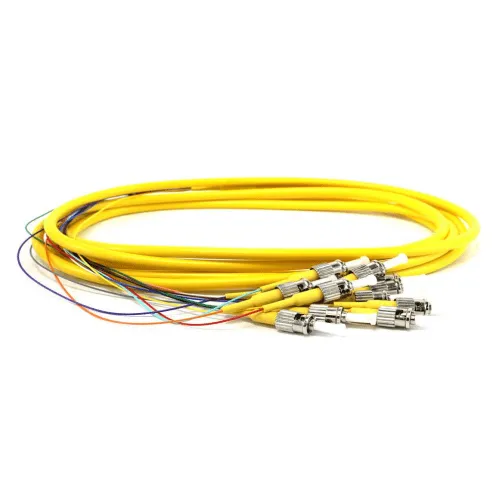

The 4-48F Pre-terminated 900um Cable Fiber Pigtail is designed for efficient, multi-fiber network connections. Available in single-mode and multi-mode variants, this product is built to meet rigorous industry standards, including Telcordia GR-326 Core and ROHS requirements. Its partial outer jacket protects the fiber buffers from damage while allowing flexibility for installations requiring tighter bends. These pigtails are perfect for applications within buildings or between structures, ensuring reliable and high-performance fiber optic connections.
- Robust Cable Structure: Unit-tube design for better fiber protection and management.
- Optimized Cable Diameter: Available in different sizes to meet diverse installation needs.
- Wide Jacket Options: LSZH, PVC (Riser/OFNR), and Plenum (OFNP) for diverse environments.
- High-Quality Ferrules:
- SM Ceramic Ferrule with Concentricity <0.5µm
- MM Ceramic Ferrule with Concentricity <4.0µm

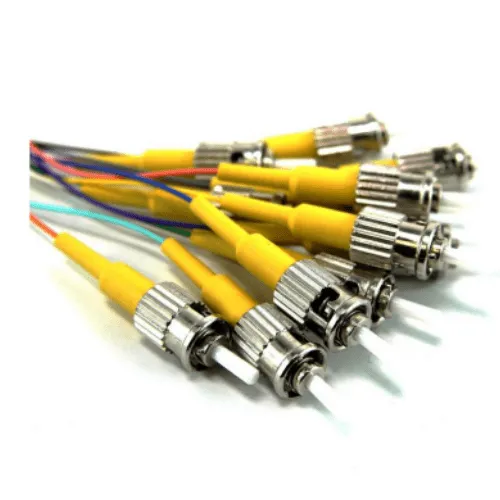

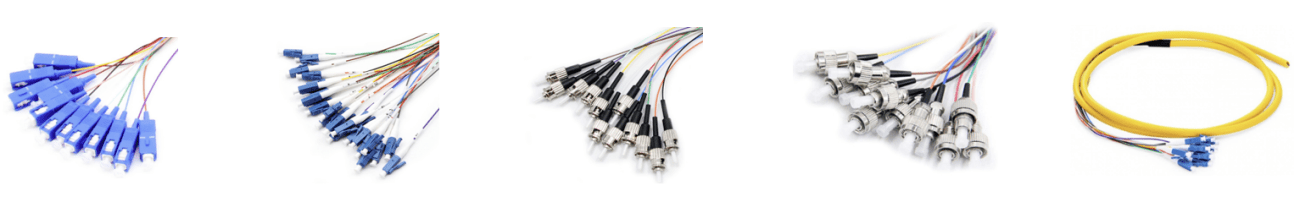

- Connector Types: Compatible with LC, SC, ST, FC, E2000, MU, D4, Din, LX.5, and SMA connectors.
- Performance Assurance: Excellent repeatability and interchangeability ensure stable optical performance.
| Parameter | Specification |
|---|---|
| Fiber Count | 4-48F |
| Fiber Mode | Single Mode, Multimode |
| Cable Diameter | 4F: 5.0mm, 6F: 5.3mm, 8F: 5.6mm, 12F: 6.3mm, 24F: 8.3mm, 48F: 10.5mm |
| Polish Type | APC, UPC |
| Jacket Material | LSZH, PVC (Riser/OFNR), Plenum (OFNP) |
| Connector Types | LC, SC, ST, FC, E2000, MU, D4, Din, LX.5, SMA |
| Insertion Loss | SM: ≤0.3dB, MM: ≤0.5dB |
| Return Loss | SM UPC: ≥50dB, SM APC: ≥60dB, MM PC: ≥35dB |
| Temperature Range | -40°C to +85°C |
Selection Notes
Typically selected when projects require factory-prepared, multi-fiber terminations to reduce on-site labor and ensure consistent optical performance, particularly in building backbones, risers, or inter-structure links.
May not be appropriate for compact splice trays or small termination boxes where higher fiber counts (24F–48F) and larger outer diameters limit bend control, routing space, or strain relief.

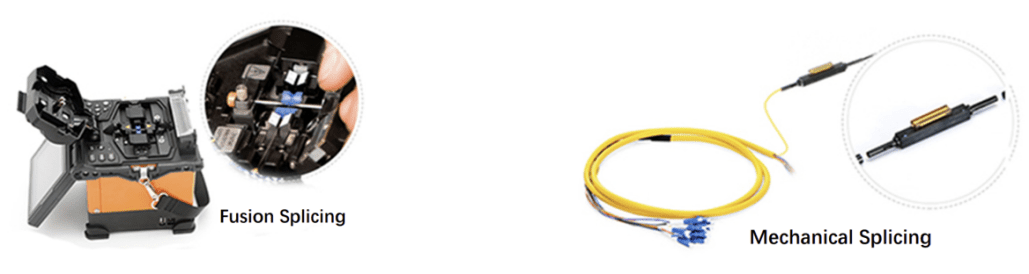

Fiber optic pigtail assemblies are essential for terminating fiber optic cables and can be connected using either fusion splicing or mechanical splicing methods.
- Reliable Fiber Terminations: Designed for precise and consistent fiber terminations in telecommunication and enterprise networks.

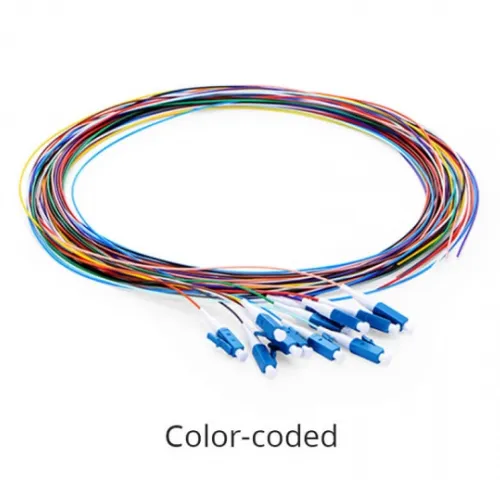

- Flexible Customization: Connector types, housing colors, and boot colors can be tailored to meet project-specific requirements.
- Ease of Installation: Compatible with a range of high-density and standard installation environments.
Q1: What fiber counts are supported?
It is available in configurations from 4 fibers up to 48 fibers.
Q2: What connector options are offered?
LC, SC, ST, FC, E2000, MU, D4, Din, LX.5, and SMA connectors.
Q3: Does it support both single-mode and multimode?
Yes, it is available in both SM and MM versions.
Q4: What standards does it comply with?
Telcordia GR-326 Core and RoHS requirements.
Q5: Where can it be used?
Ideal for building backbone connections, data centers, and inter-structure fiber networks.
