DESCRIPTION

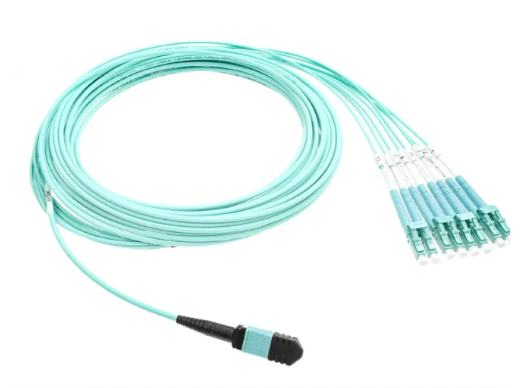

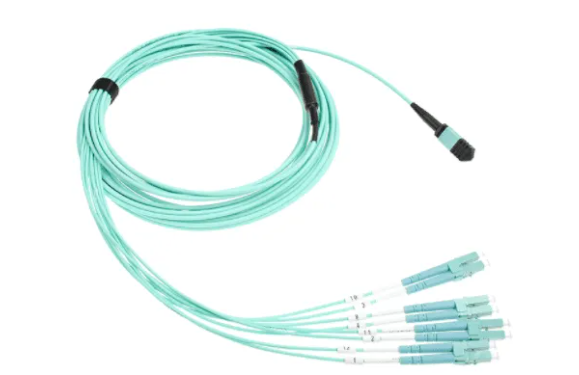

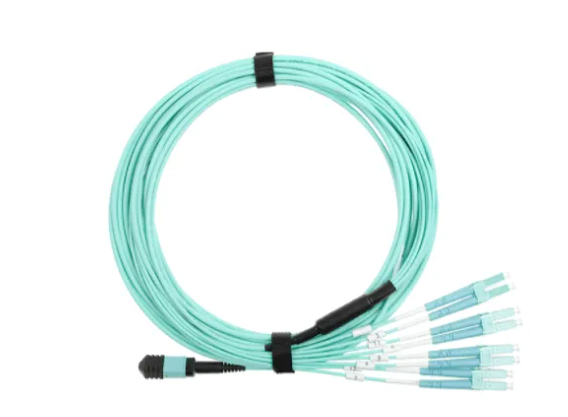

The MPO/MTP to LC UPC 8-Core OM3 Breakout Fiber Patch Cable offers a high-density, low-loss solution for fiber optic networks. Featuring OM3 multimode fiber and pre-terminated MPO/MTP and LC UPC connectors, this cable ensures reliable, high-speed performance for data centers, telecom networks, and FTTH/FTTP applications. With 8 individual duplex LC connectors, the breakout design simplifies installation and enhances network flexibility, while the LSZH jacket provides safety for indoor environments.
Product Specifications
| Specification | Details |
| Fiber Count | 8 Fibers (4 x Duplex) |
| Connector Type | MPO/MTP to LC UPC |
| Fiber Type | OM3 Multimode |
| Insertion Loss | MPO/MTP: ≤0.7 dB (Standard), ≤0.35 dB (Elite) |
| Cable Diameter | 3.0mm |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Operating Temperature | -20°C to +70°C |
| Bandwidth | 2000 MHz·km (OM3) |
| Maximum Distance | 300m for 10GbE |
| Compliance | RoHS, TIA/EIA-568-C.3, IEC 60794-2-50 |
Feature Details
- MPO/MTP to LC UPC: Provides seamless connection from MPO/MTP to LC UPC, ideal for high-density applications.
- OM3 Multimode Fiber: Optimized for high-speed, high-bandwidth applications, supporting distances up to 300m for 10GbE.
- Breakout Design: The cable is split into 4 duplex LC connectors, offering more efficient cable management.
- Pre-Terminated: Ready for immediate use with pre-terminated connectors, reducing installation time.
- Low Insertion Loss: Designed to minimize signal loss, providing excellent performance.
- LSZH Jacket: Flame-retardant and non-toxic, ensuring safety in sensitive environments.
Application Details
- Data Centers: Connects networking devices such as servers, routers, and switchesefficiently with minimal signal loss.
- Telecommunications: Used in backbone networksfor high-performance telecom connections.
- FTTH/FTTP: Perfect for fiber-to-the-homeinstallations where reliable high-speed internet is needed.
- High-Speed Ethernet: Supports 40G and 100G Ethernet, making it ideal for next-gen networking applications.
FAQ
Q1: What does the breakout design provide?
It splits 8 cores from a single MPO/MTP connector into 8 individual duplex LC UPC connectors, simplifying network management.
Q2: What fiber type is used?
OM3 multimode fiber, optimized for 10G/40G/100G short-reach transmission.
Q3: Where is this cable typically used?
High-density networks like telecom systems, FTTH/FTTP deployments, and data centers.
Q4: Is the cable pre-terminated?
Yes, it is factory pre-terminated for quick and reliable installation.
Q5: Does it meet safety standards?
Yes, the LSZH jacket ensures flame resistance and low smoke emissions.
