DESCRIPTION
High Quality and Cost-effective 50/125μm OM4 8-Fiber Optic Cable

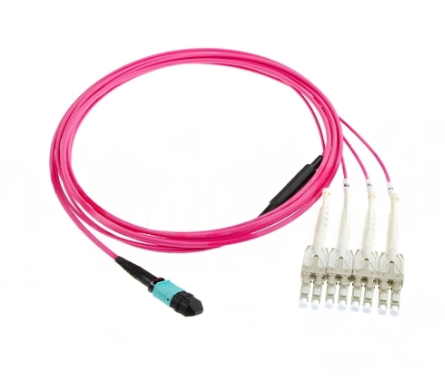

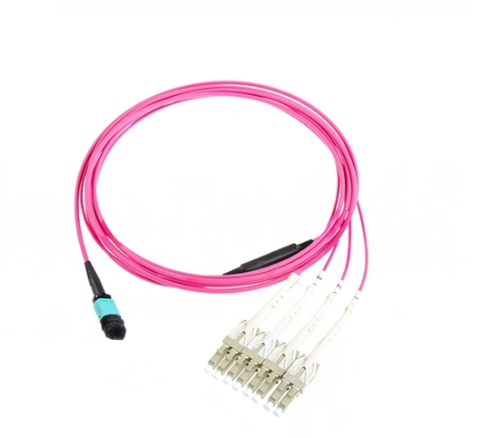

The MPO to Uniboot LC OM4 8 Fibers Breakout Patch Cable is a high-performance solution designed for high-density fiber networks. Featuring an MPO connector on one end and 4 duplex Uniboot LC connectors on the other, this breakout cable combines efficiency and versatility, making it ideal for data centers, telecom networks, and enterprise environments.
Built with OM4 multimode fiber, the cable supports high-speed transmissions at 40G and 100G, ensuring reliable and stable performance. Its uniboot LC connectors reduce cable clutter and allow for reversible polarity, making installation and maintenance more efficient.
Feature Details

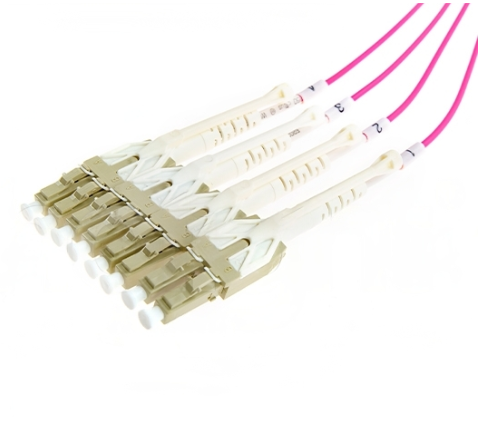

- Space-Saving Uniboot LC Connectors
- Combines two fibers into a single cable, optimizing airflow in high-density environments.
- Reversible polarity for quick and tool-free adjustments during installation.
- High-Performance MPO Connector
- High-density interface supports 8 fibers in a single connector.
- Low insertion loss ensures minimal signal degradation.
- OM4 Multimode Fiber
- Optimized for 850nm wavelength, offering high bandwidth and low attenuation for short-reach data links.
- Enhanced performance for 40G/100G Ethernet applications.
- Robust LSZH Jacket
- Fire-safe material designed for indoor data center cabling.
- Aqua color for easy identification in multimode networks.
- Customizable Configurations
- Lengths, connector types, and breakout styles can be tailored to specific project requirements.
- Compatible with various polarity methods (A, B, C) for versatile network integration.
Product Specifications
| Parameter | Specification |
| Fiber Type | OM4 Multimode (50/125μm) |
| Connector Type | MPO to Uniboot LC |
| Fiber Count | 8 Fibers |
| Breakout Type | 4 Duplex LC Uniboot |
| Insertion Loss | MPO/MTP: ≤0.7 dB (Standard) or ≤0.35 dB (Elite); LC: ≤0.2 dB |
| Return Loss | MPO: ≥30dB; LC: ≥50dB |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Jacket Color | Aqua |
| Cable Diameter | φ3.0mm / φ5.0mm |
| Operating Temperature | -40°C to +75°C |
| Storage Temperature | -40°C to +85°C |
Application Details
- Telecom Networks: Delivers reliable fiber connectivity in LAN/WAN and metro network infrastructures.
- Data Center Cabling: Efficiently manages fiber interconnections in high-density data centers.
- High-Speed Ethernet Systems: Supports 40G/100G Ethernet links for seamless and high-bandwidth communication.
- FTTx Deployments: Simplifies fiber breakout in FTTP and FTTH installations, ensuring stable connections.
- Enterprise Systems: Suitable for scalable and flexible network designs in complex enterprise environments.
FAQ
Q1: What is the main application of the MPO to LC OM4 8 Fibers breakout patch cable?
It is widely used in high-density data centers, telecom networks, and enterprise environments to connect MPO trunk cables with LC-based equipment.
Q2: What transmission speeds does this cable support?
With OM4 multimode fiber, it supports 40G and 100G short-reach applications, ensuring reliable high-speed performance.
Q3: What is the advantage of uniboot LC connectors?
Uniboot LC connectors reduce cable bulk, improve airflow, and support reversible polarity for flexible installation and simplified maintenance.
Q4: How many fibers does this breakout cable include?
It features 8 fibers in total, with one MPO connector on one end and 4 duplex uniboot LC connectors on the other.
Q5: Can the breakout cable be customized?
Yes. Options include customized cable length, jacket material, color, connector type, and labeling to meet project requirements.
Q6: Is this cable suitable for both short and long-distance applications?
It is optimized for short-reach, high-speed data transmission within data centers and enterprise networks, not for long-haul transmission.
Q7: What jacket diameter is available?
The standard design is a compact mini cable, ensuring flexibility and easy cable management in dense installations.
Q8: What is the typical delivery time?
Standard lengths are in stock, while customized orders usually require 5–10 working days.
