Dual Fiber 16CH C21-C36 DWDM MUX DEMUX With 1310nm, Monitor and EXP Port, LC/UPC, LGX Box, and 2 Slots 1U Rack
Product Panel
16CH DWDM MUX DEMUX Dual Fiber
Expansion Port for Future Bandwidth Increasing, makes it possible to increase the network capacity by connecting it to the line port of another DWDM MUX/DEMUX supporting different wavelengths, without the need of installing or leasing additional fibers.
Line Link
16CH DWDM MUX DEMUX Dual fiber transmission
16Channels DWDM and 1CH 1310nm MUX DEMUX, supports 16+1channels difference business in two optical fiber for point-to-point transmission.
It works in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries.
Product Specification
| Wavelength | 16channels C21-C36 | Channel Spacing | 100GHz (0.8nm) |
| Channel Passband | ±0.11nm | Technology | TFF (Thin Film Filter) |
| Insertion Loss | ≤ 3.5B | Center Wavelength Accuracy | ±0.05nm |
| 1310nm Port Pass Band Width | 1260nm~1360nm | Insertion Loss @ 1% Mon | ≤ 26dB |
| Return Loss | ≥ 45dB | Directivity | ≥ 45dB |
| Polarization Mode Dispersion | ≤ 0.1ps | Polarization Dependent Loss | ≤ 0.3dB |
| Channel Isolation | Adjacent ≥30dB Non-adjacent ≥ 45dB | Temperature | Operating -40 to 85°C Storage -40 to 85°C |
| Net Weight | LGX Box: 0.5KG 2slot 1U Rack: 2.5KG | Dimensions (HxWxD) | LGX Box: 220*200*39mm 1U Rack : 44*440*230mm |
Note: Specified with connectors.
Package Information

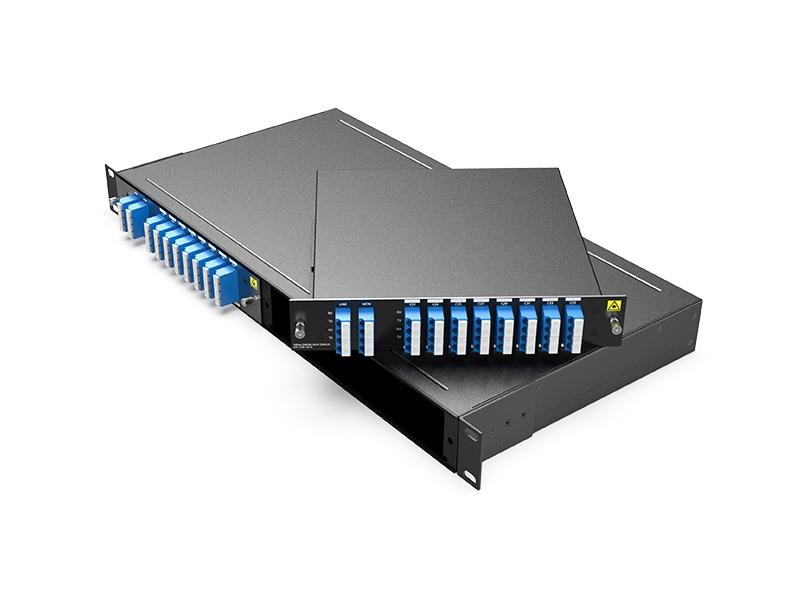

LGX BOX Plug in 2-Slot 1U Rack
2-Slot 1U Rack for LGX BOX
Order Information
| Product No. | Product description |
| DMD16-LGX01-C2136-31M | DWDM MUX DEMUX 16CH (C21-C36) With 1310nm, Monitor and EXP Port, Dual fiber, LC/UPC , Plug-in LGX Box 220*200*39mm |
| 1U02-2LGX | 19” inch 1U rack with 2 slot for Plug-in LGX box, 440*230*44mm |
Note: We Support Customized Design, please contact us by email.
