Dual Fiber 4CH O-BAND DWDM MUX DEMUX, LC/UPC, FMUC Plug-in Module,
and 2 Slots 1U Rack
Product Panel
4CH O-BAND DWDM MUX DEMUX Dual Fiber
Line Link
4CH O-Band DWDM MUX DEMUX Dual fiber transmission
4Channels O-BAND DWDM MUX DEMUX, supports 4channels difference business in two optical fiber for point-to-point transmission.
It works in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries.
Product Specification
| Work Wavelength | 1295.56/300.05/ 1303.58/1309.14nm | Operating Wavelength | 1260~1360nm |
| Channel Passband | ±0.11nm | Technology | TFF (Thin Film Filter) |
| Insertion Loss | ≤ 1.5dB | Insertion Loss Temperature Sensitivity | ≤ 0.5dB |
| Return Loss | ≥ 45dB | Directivity | ≥ 45dB |
| Polarization Mode Dispersion | ≤ 0.2ps | Polarization Dependent Loss | ≤ 0.2dB |
| Channel Isolation | Adjacent ≥25dB Non-adjacent ≥ 35dB | Temperature | Operating -40 to 85°C Storage -40 to 85°C |
| Net Weight | FMUC Module: 0.5KG 2slot 1U Rack: 3.5KG | Dimensions (HxWxD) | FMUC Module: 212*255*44mm 1U Rack : 482*261*44mm |
Note: Specified with connectors.
Package Information

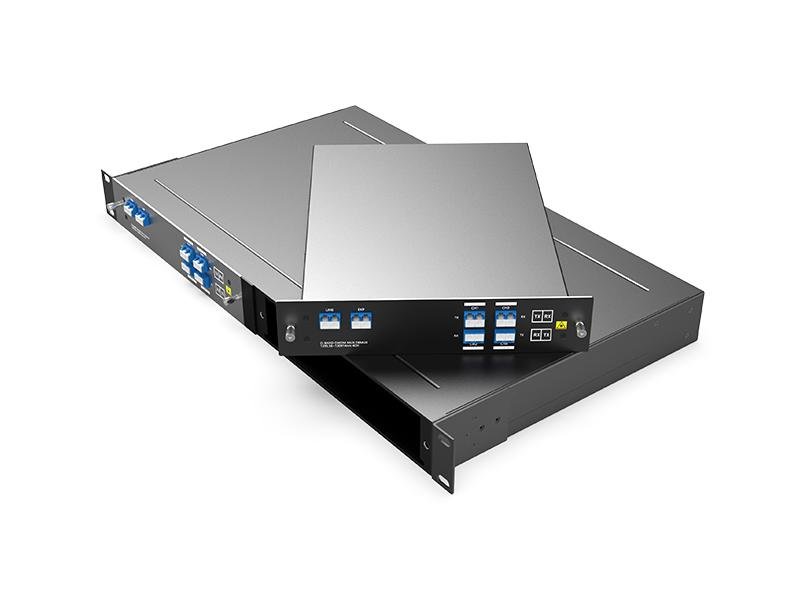

FMUC Plug in 2-Slot 1U Rack
2-Slot 1U Rack for FMUC Module
Order Information
| Product No. | Product description |
| ODMD4-FMUC01-1310L | DWDM MUX DEMUX 4CH (1295.56/300.05/1303.58/1309.14) , Dual fiber, LC/UPC , FMUC Plug-in Module |
| 1U-2slot-FMUC | 2-slots 1U Rack holds 2 FMUC Modules 482*261*44mm |
Note: We Support Customized Design, please contact us by email.
