Dual Fiber 16CH O-BAND DWDM MUX DEMUX, LC/UPC, EXP+1310 port, 1U Rack
The 16ch O-BAND DWDM MUX DEMUX is designed by FIBERWDM, it is totally passive DWDM device, and support low insertion loss( wavelength ports＜4.8dB; ). Waves are 1295.56/1296.68/1297.80/1298.93/1300.05/1301.18/1302.31/1303.45/1304.58/1305.72/ 1306.85/1308.00/1309.14/1310.28/1311.43/1312.58nm, support 16CH business on two fiber transmission, with EXP Port and 1310 Port.

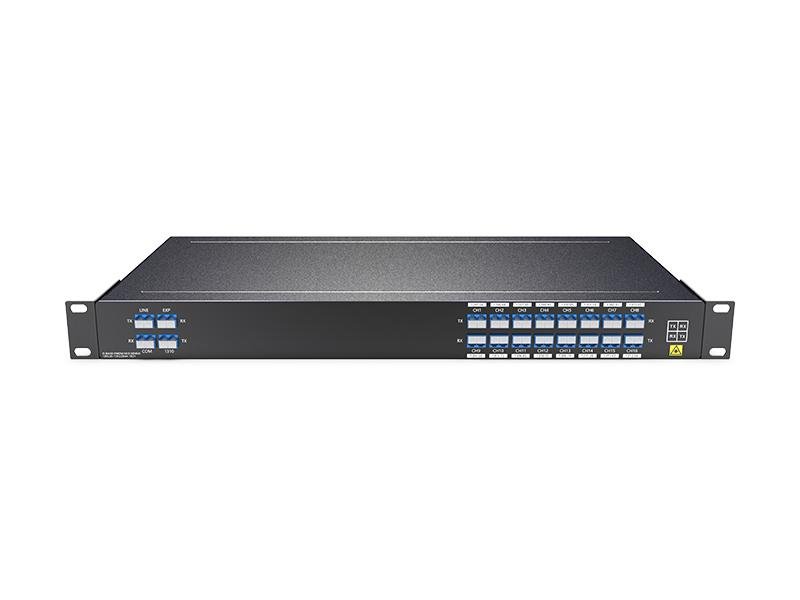

Product Panel
16CH O-BAND DWDM MUX DEMUX Dual Fiber
Line Link
16CH O-Band DWDM MUX DEMUX Dual fiber transmission
16 Channels O-BAND DWDM MUX DEMUX, supports 16channels difference business in two optical fiber for point-to-point transmission. It is also compatible with the transmission of C-BAND services together.
It works in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries.
Product Specification
| Work Wavelength | 1295.56/1296.68/1297.80/1298.93/1300.05/1301.18/1302.31/1303.45/1304.58/1305.72/ 1306.85/1308.00/1309.14/1310.28/1311.43/1312.58nm | Operating Wavelength | 1260~1360nm |
| Channel Passband | ±0.11nm | Technology | TFF (Thin Film Filter) |
| Insertion Loss | ≤ 4.8dB | Insertion Loss Temperature Sensitivity | ≤ 0.5dB |
| Return Loss | ≥ 45dB | Directivity | ≥ 45dB |
| 1310nm Port Pass Band Width | 1260nm~1360nm | Insertion Loss@1310 port | ≤ 0.8dB |
| Polarization Mode Dispersion | ≤ 0.2ps | Polarization Dependent Loss | ≤ 0.2dB |
| Channel Isolation | Adjacent ≥25dB Non-adjacent ≥ 35dB | Temperature | Operating -40 to 85°C Storage -40 to 85°C |
| Net Weight | 3.5KG | Dimensions (HxWxD) | 44*440*230mm |
Note: Specified with connectors.
Package Information
1U Rack
Order Information
| Product No. | Product description |
| ODMD16-1U01-31-I | DWDM MUX DEMUX 16CH (1295.56/1296.68/1297.80/1298.93/1300.05/1301.18/1302.31/1303.45/1304.58/1305.72/ 1306.85/1308.00/1309.14/1310.28/1311.43/1312.58nm) , Dual fiber, LC/UPC , EXP port , 1310 port , 1U RACK |
Note: We Support Customized Design, please contact us by email.
