DESCRIPTION

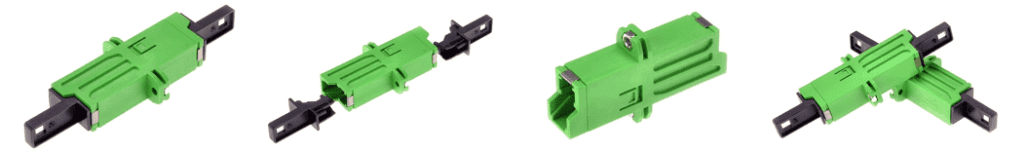

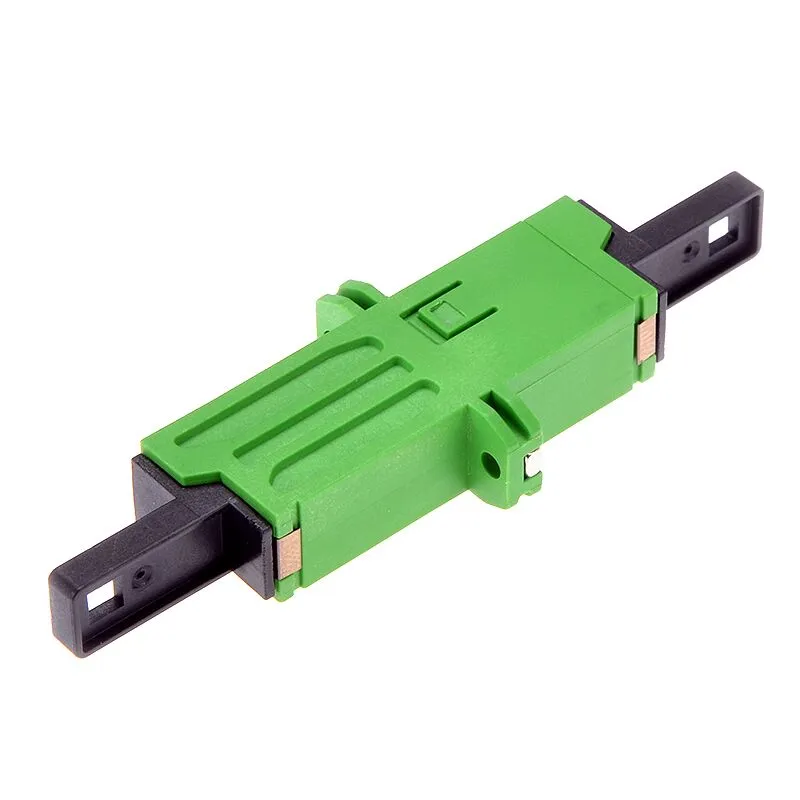

The E2000 APC Single Mode Simplex Adapter with flange is designed for precise fiber optic connections where low insertion loss and high stability are essential. Its compact plastic body ensures easy handling, while the integrated flange offers firm mounting on panels and ODF systems. Widely used in telecom networks, FTTH systems, and data centers, it guarantees reliable and long-lasting optical performance.
FEATURE DETAILS
- APC Polish Design: Guarantees minimal back reflection and high stability for SM networks.
- Lightweight Plastic Housing: Cost-effective and easy to handle, ideal for large-scale deployments.
- Flange Type: Securely mounts into panels or enclosures for reliable installation.
- Zirconia Ceramic Sleeve: Provides precise alignment and low insertion loss.
- Single Mode Optimization: Perfect for long-distance and high-bandwidth telecom systems.
- Easy Installation: Push-pull design simplifies handling, allowing quick connector insertion and removal during maintenance.
PRODUCT SPECIFICATIONS
| Item | Value |
| Connector Type | E2000 to E2000 |
| Fiber Mode | Single mode |
| Fiber Counts | Simplex |
| Polish Type | APC (Angled Physical Contact) |
| Durability | ≤0.1dB |
| Insertion Loss | ≤0.2dB |
| Working Temperature | -25~70°C |
| Housing Material | High-quality plastic |
APPLICATION DETAILS
- Telecommunication Networks: High-performance connectivity in core and access networks.
- Data Centers & ODFs: Provides stable and organized hybrid patching solutions.
- FTTx / FTTH Systems: Optimized for high-speed broadband deployment.
- CATV Networks: Ensures stable signal transmission with low reflection.
- Laboratories & Test Equipment: Suitable for precise optical measurement setups.
FAQ
- What connector type does this adapter support?
It supports E2000 APC connectors. - Is it suitable for single mode or multimode fibers?
This model is designed for single mode (SM) applications. - What does APC mean?
APC (Angled Physical Contact) polishing provides superior return loss by reducing back reflection, especially important for SM networks. - What is the purpose of the flange?
The flange design allows the adapter to be securely mounted into panels or distribution frames. - What is the housing material?
This version uses plastic housing, making it lightweight and economical. - Can it be used in data centers?
Yes, it is commonly used in data centers, telecom, and FTTH projects. - How many fibers does it support?
It supports simplex (1 core) fiber connections.
