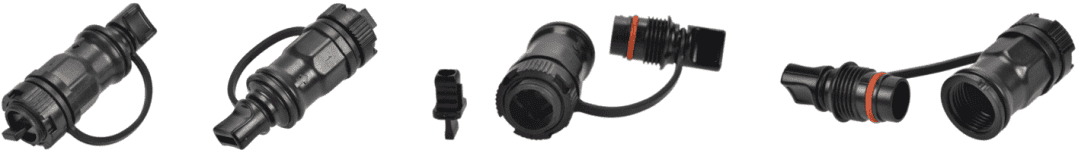

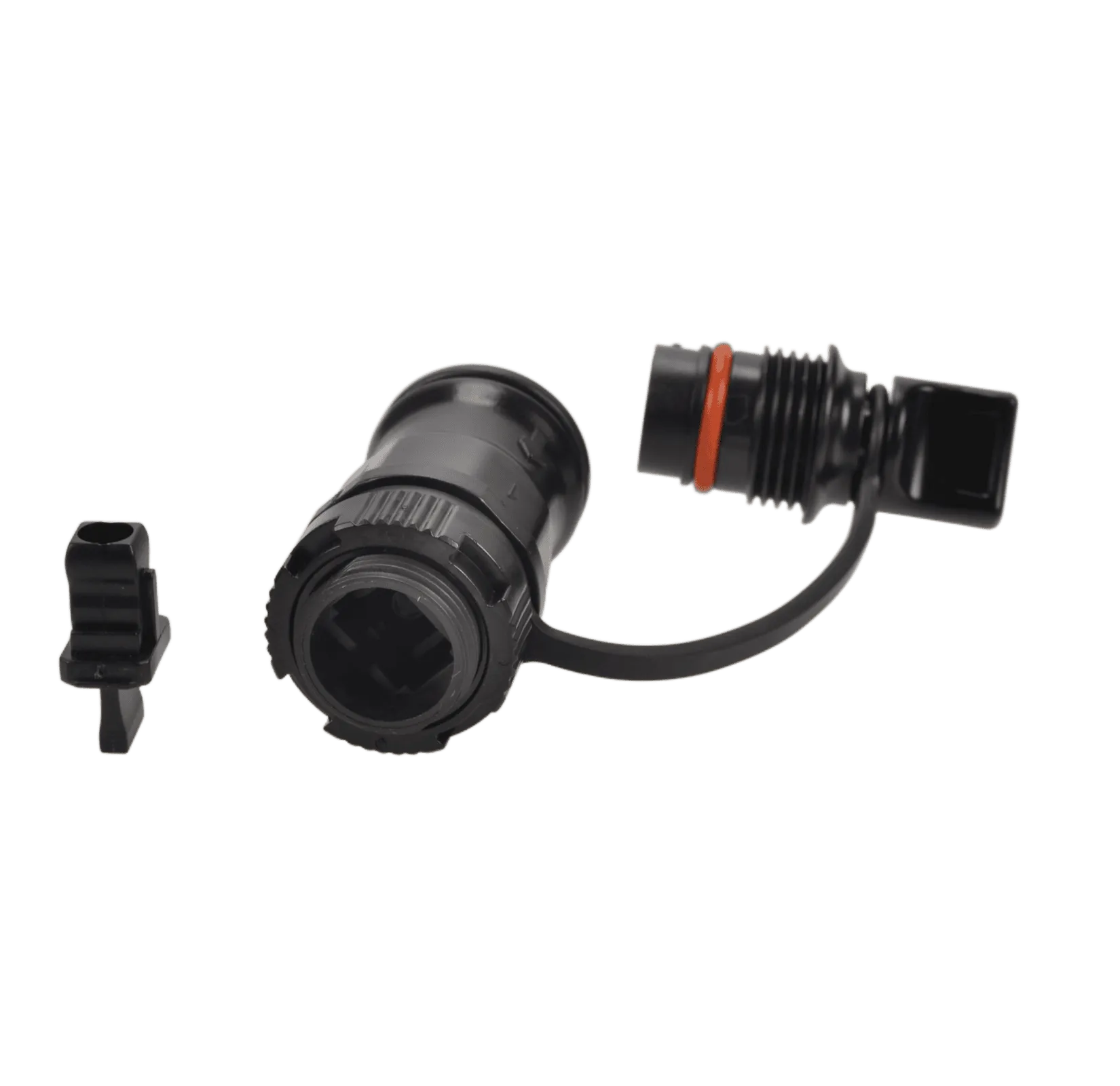

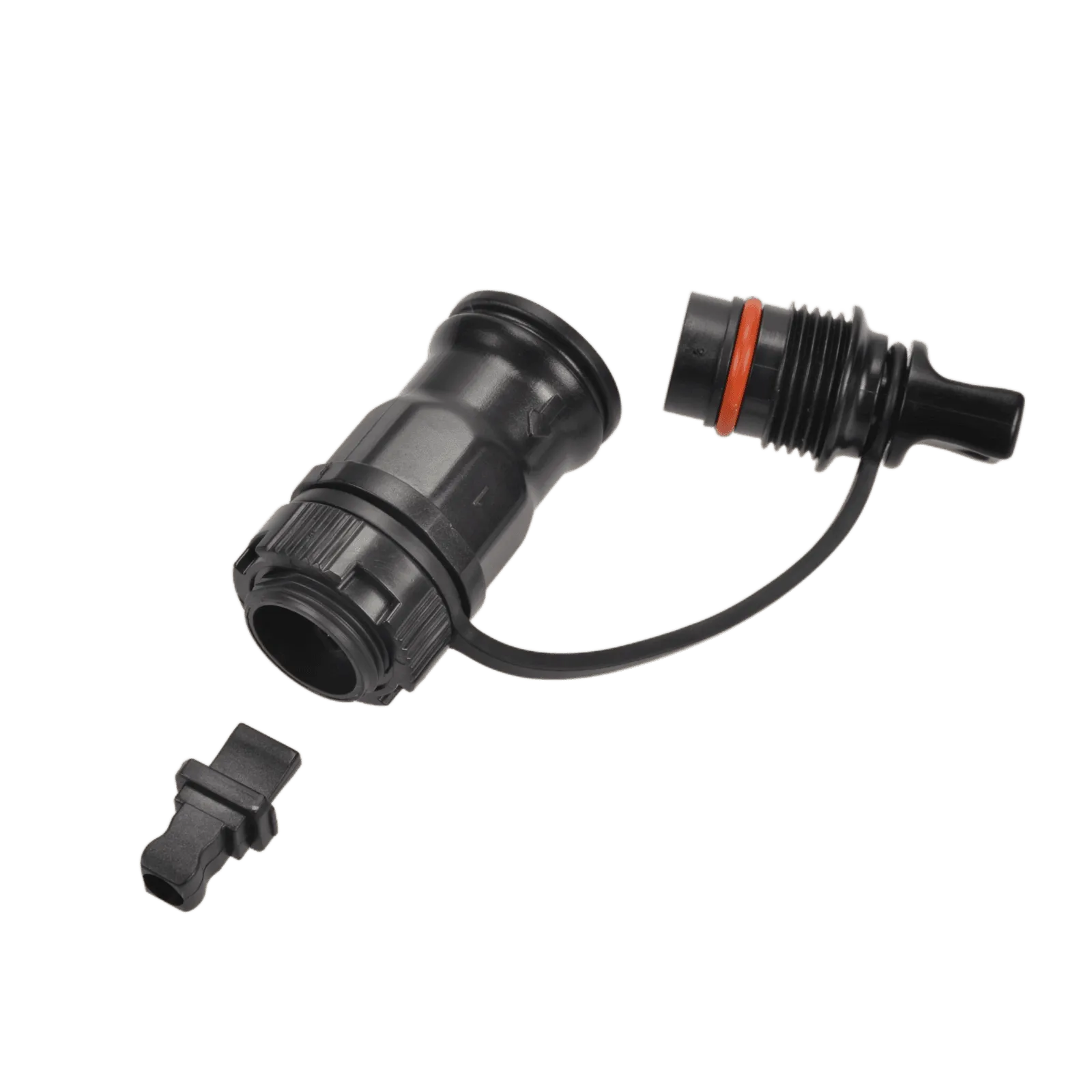

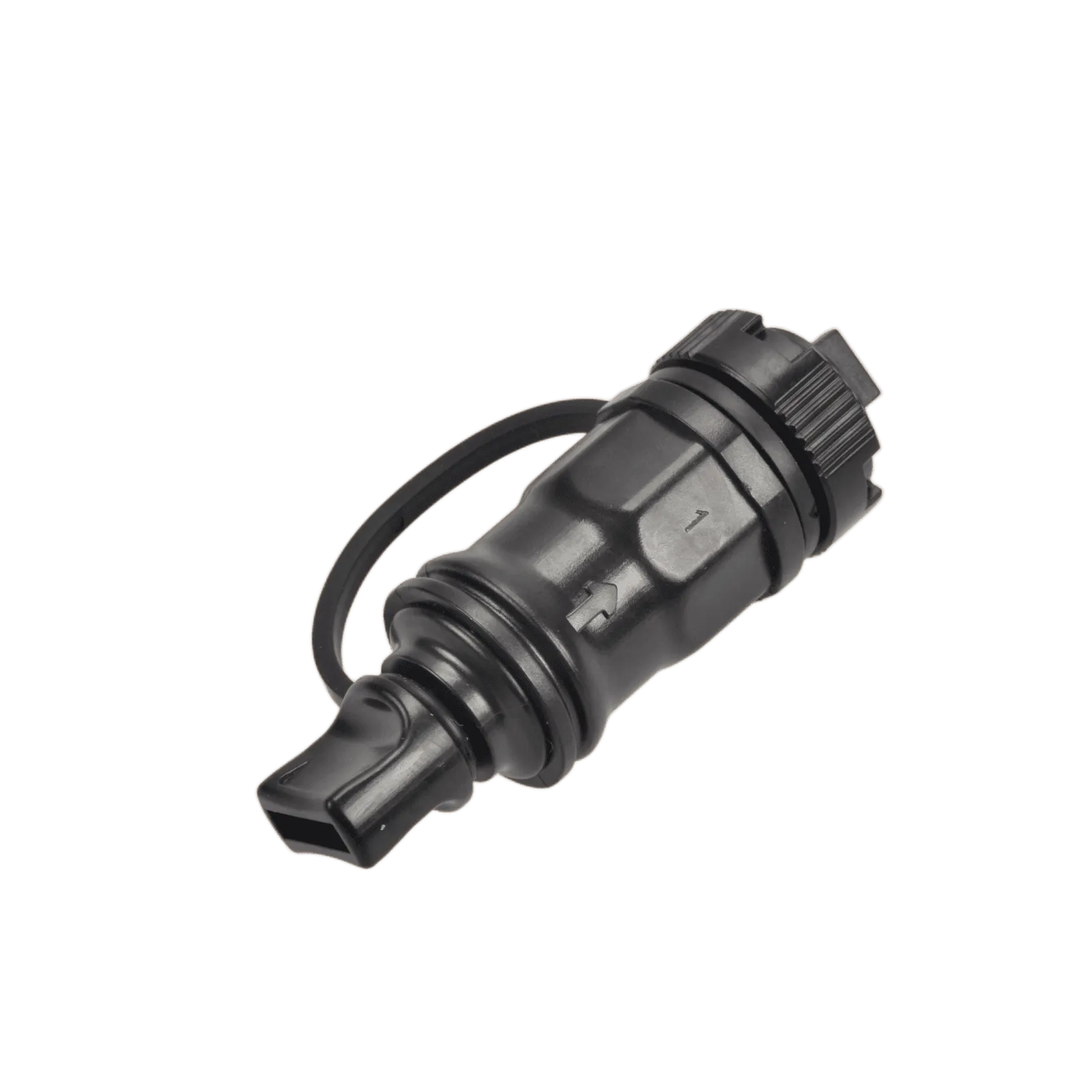

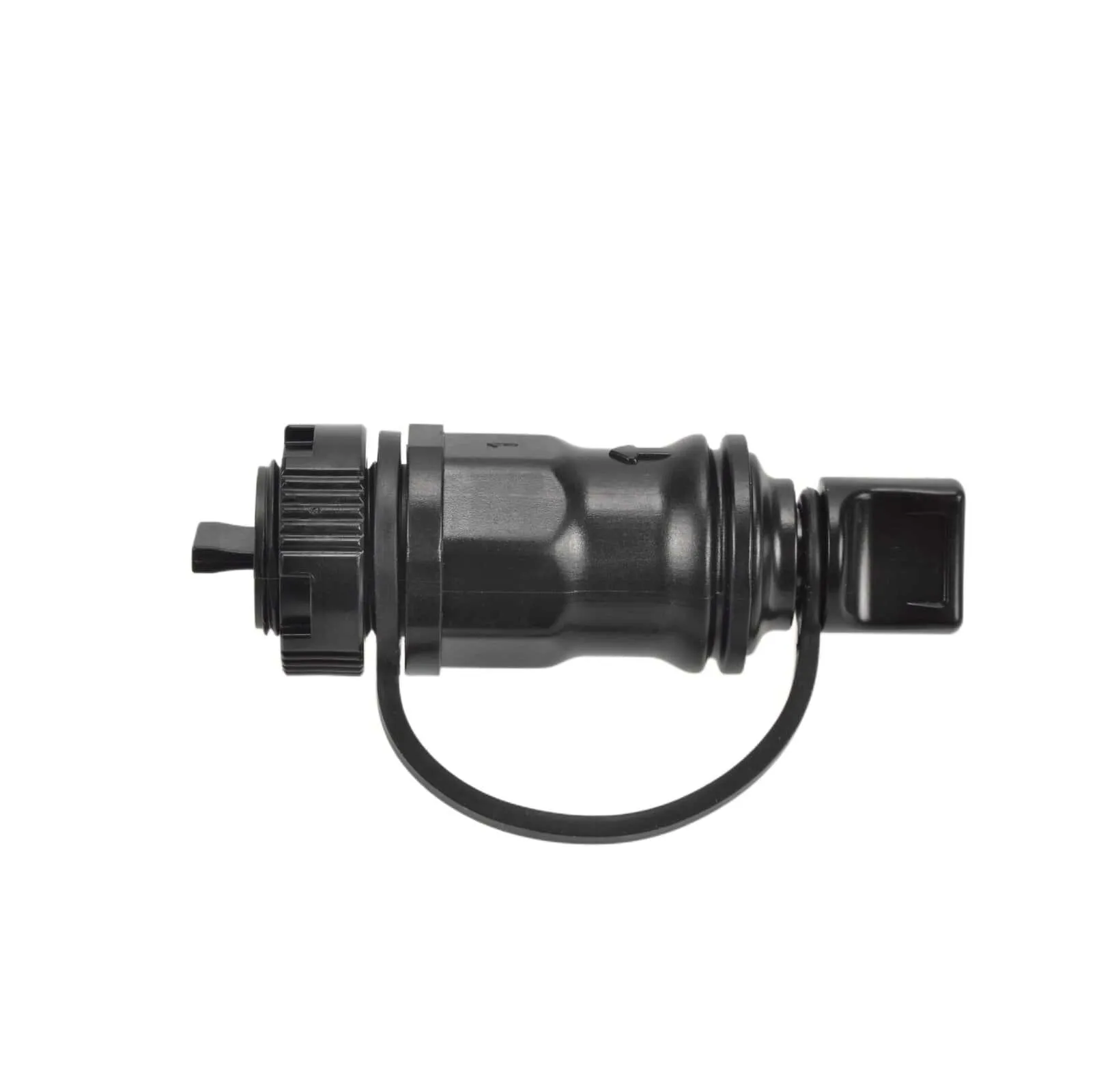

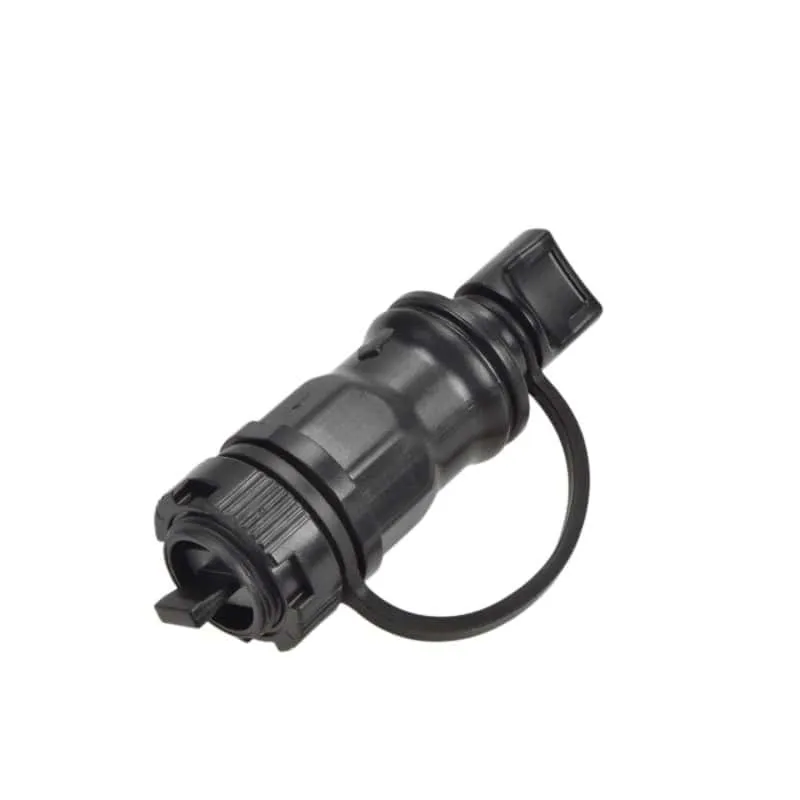

OptiTap-Compatible SC Slim Waterproof Fiber Optic Adapter – for FTTH and Outdoor Networks

The OptiTap Compatible SC Slim Waterproof Adapter adopts a thread-lock sealing mechanism to guarantee long-term waterproof performance for outdoor FTTH and industrial applications. Its compact body allows efficient use in dense terminal boxes, while its rugged structure ensures secure mating between SC/APC connectors and hardened OptiTap interfaces. Built to withstand rain, dust, vibration, and temperature fluctuations, this adapter ensures network reliability even in the harshest environments.

Engineering Suitability & Selection Boundaries

1. When This Product Is the Right Choice

• Typically selected for outdoor FTTH drop terminations where the connection point must remain sealed under rain, dust, and long-term environmental cycling.
• Commonly used when the site requires a thread-lock (screw-on) coupling to maintain consistent compression on the O-ring seal for IP-level protection.
• Usually appropriate when installation space inside terminal boxes is limited and a slim body is needed for higher port density without blocking technician access.
• Typically suitable when the hardened interface plan is standardized around OptiTap-compatible + SC/APC connectivity for stable return-loss performance in access networks.

2. When This Product May NOT Be Suitable

• May not be suitable when the field standard uses a different hardened interface family or a different coupling style, as interface mismatch commonly causes rework or incompatible spares.
• Commonly unsuitable if technicians cannot consistently achieve correct hand-tightening and full thread engagement, since partial engagement typically compromises sealing before optical performance shows an issue.
• May not be appropriate when the drop-cable OD is outside the stated 5–7 mm range, as sealing strain relief and long-term moisture resistance commonly depend on correct cable fit.
• Typically not suitable in deployments where frequent connect/disconnect cycles occur under contamination without controlled cleaning, as outdoor particulate ingress commonly increases insertion loss variability over time.

3. Common Selection Mistakes to Avoid

• Selecting by “IP68” only without aligning the project on a consistent hardened interface ecosystem (OptiTap-compatible vs other hardened families), which commonly leads to on-site non-mating issues.
• Overlooking the need to manage O-ring condition and seating during installation, which commonly causes intermittent faults after temperature and moisture cycling.
• Mixing coupling styles (thread-lock vs other field habits) within the same build, which typically complicates technician training, spares stocking, and maintenance routines.

1. Thread-Lock Waterproof Design
   The screw-on coupling secures a tight mechanical connection and compresses the internal O-ring, delivering IP68-level waterproof sealing that resists moisture and dust intrusion.
2. Compact Form Factor
   Its slim body saves space inside fiber termination boxes, enabling high-density installations without compromising accessibility.
3. Broad Compatibility
   Engineered for seamless mating with both OptiTap and SC/APC connectors, allowing flexible integration into existing FTTH systems.
4. Rugged Outdoor Durability
   Made from high-impact, UV-stabilized materials that resist corrosion, heat, and long-term exposure to sunlight.
5. Easy Field Installation
   Technicians can achieve a perfect seal simply by hand-tightening the adapter — no tools or special clamps required.

• FTTH Deployments: Ensures secure drop-cable termination in optical distribution and subscriber access points.
• 5G & Wireless Backhaul: Delivers waterproof fiber connectivity between antennas, RUs, and edge cabinets.
• Industrial Automation: Ideal for PLC cabinets and smart-factory interconnects requiring robust fiber links.
• Outdoor Surveillance Systems: Guarantees long-term optical stability for security cameras and IoT devices.
• Temporary and Emergency Networks: Supports quick setup of field communication systems under harsh conditions.

Q1: What is the coupling type of this adapter?
A1: It uses a thread-lock (screw-on) mechanism, not push-lock, ensuring a more reliable seal in harsh outdoor environments.

Q2: Is it compatible with OptiTap connectors?
A2: Yes. It is designed for full compatibility with standard OptiTap and SC/APC outdoor connectors.

Q3: What level of waterproof protection does it have?
A3: It achieves an IP68 rating, meaning it is completely dustproof and can withstand water immersion.

Q4: Can it be used in industrial or factory environments?
A4: Absolutely. Its rugged polymer and stainless components provide high resistance to vibration, dust, and oil.

Q5: What is the typical insertion loss performance?
A5: Less than 0.2 dB, even after repeated connections or long-term outdoor use.

Q6: Can HOLIGHT provide customized labeling or housing color?
A6: Yes, OEM and ODM customization are available for bulk orders.

Q7: How should it be maintained for long-term reliability?
A7: Clean connector ferrules regularly, inspect O-rings for wear, and replace seals if cracks or deformation appear.

Q8: What’s the typical packaging for export?
A8: Each adapter is sealed in a moisture-proof polybag, placed in inner cartons, and palletized for safe international shipping.
