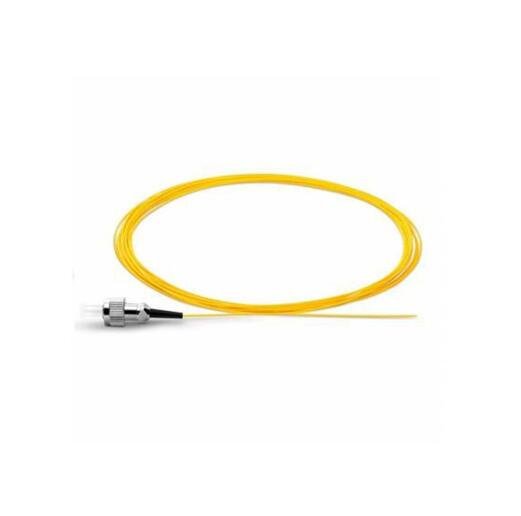

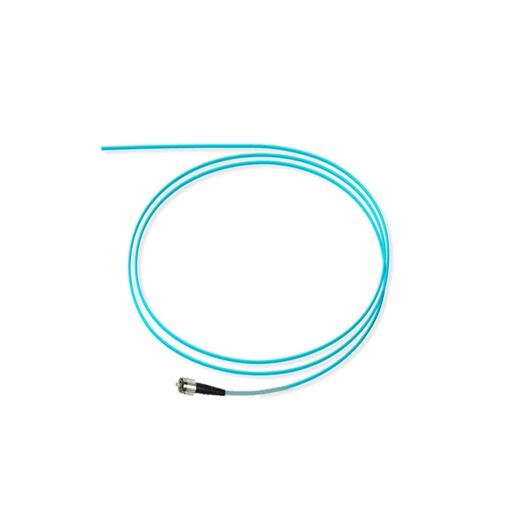

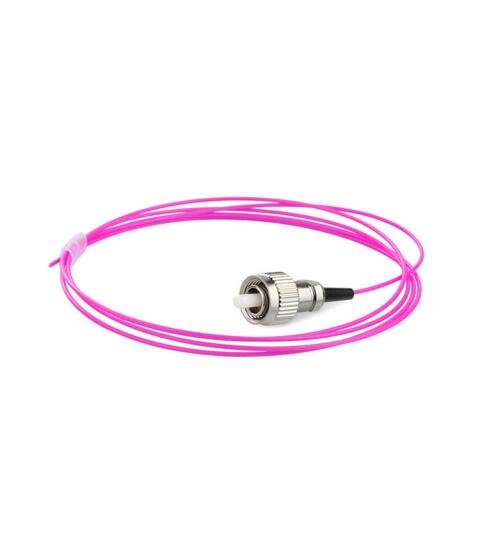

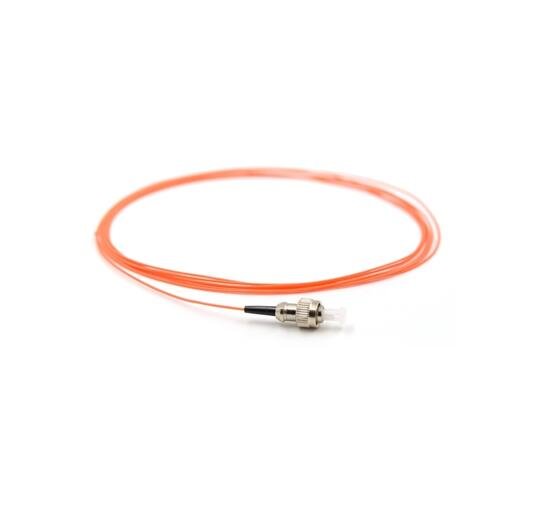

FC 0.9mm Simplex Fiber Optic Pigtail – for Single Mode and Multimode Networks

The FC 0.9mm Simplex Single Mode/Multimode Fiber Optic Pigtail is a premium-grade fiber optic solution designed for precise and reliable connections in telecommunications, data centers, and testing environments. This pigtail features an FC connector and a 0.9mm tight buffer cable, making it ideal for high-density applications where performance and durability are critical.

Its threaded locking mechanism provides a secure connection, while its compact design makes it easy to integrate into fiber optic splicing projects. Whether for single-mode or multimode applications, this pigtail guarantees consistent and reliable performance.

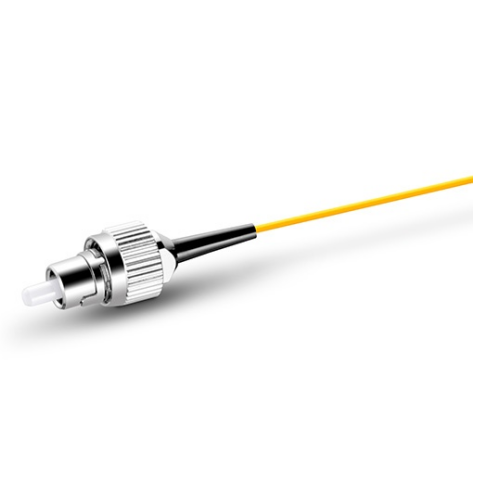

• Connector Type: The FC connector features a threaded locking system, ensuring a stable and secure connection in high-vibration environments.
• Cable Type: The 0.9mm tight buffer design enhances the cable’s flexibility and protects it during splicing and installation.
• Polish Type: Available in UPC (Ultra Physical Contact) for multimode and APC (Angled Physical Contact) for single-mode fibers, ensuring optimal signal clarity.
• Customizable Options: Choose from various cable lengths, connector colors, and jacket materials to meet specific project requirements.
• High-Quality Materials: Zirconia ceramic ferrules provide excellent concentricity, ensuring reliable optical alignment.

• FTTH Networks: Ideal for splicing in fiber-to-the-home and building connections, providing stable and efficient signal transmission.
• Telecommunication Closets: Used in telecom closets and cabinets for high-density fiber routing.
• Optical Testing and Instrumentation: Perfect for connecting to optical testing devices in laboratories or field settings.
• CATV Systems: Ensures high-performance signal transmission in cable television networks.
• Data Centers: Suitable for integration into patch panels and optical distribution frames in high-density network setups.

Q1: What distinguishes the FC connector from others?
The FC connector uses a threaded locking mechanism, ensuring highly secure and stable connections.

Q2: Is this FC pigtail suitable for both SM and MM fibers?
Yes. It supports both single-mode OS2 fibers for long distance and multimode OM1–OM5 fibers for high-bandwidth applications.

Q3: What type of cable does it use?
It features a 0.9mm tight-buffered fiber cable, compact and easy to integrate into splicing enclosures.

Q4: What are the typical performance specifications?
Insertion loss is ≤0.3 dB, with return loss ≥50 dB for UPC and ≥60 dB for APC polish types.

Q5: Can this pigtail be customized?
Yes. Length, jacket color, labeling, and packaging can all be tailored to project requirements.

Q6: What environments are FC pigtails best suited for?
They are widely used in telecom networks, labs, test equipment, and high-density fiber connections.

Q7: How are they tested before shipping?
All FC pigtails undergo rigorous optical testing for insertion loss, return loss, and compliance with Telcordia GR-326.
