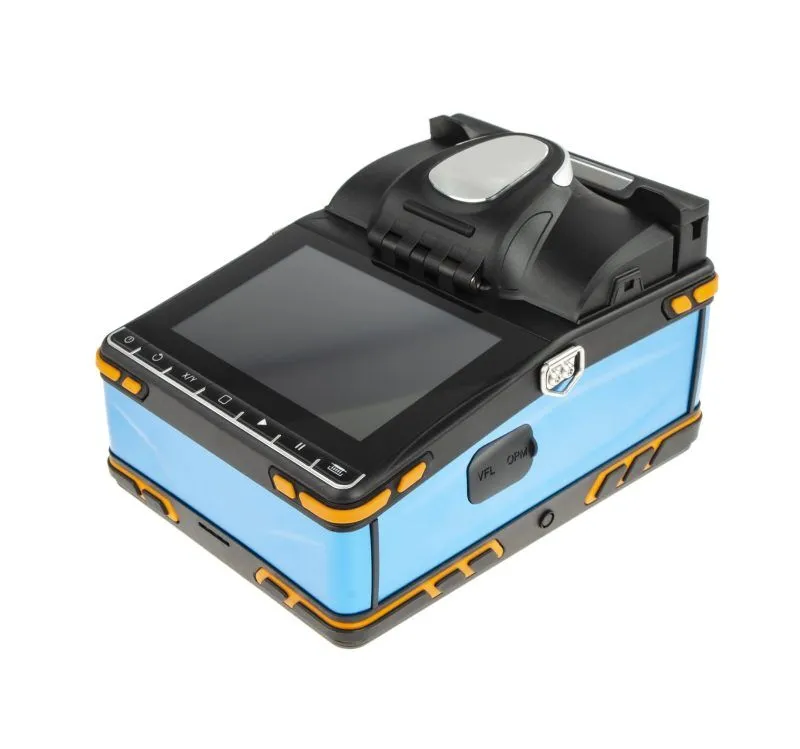

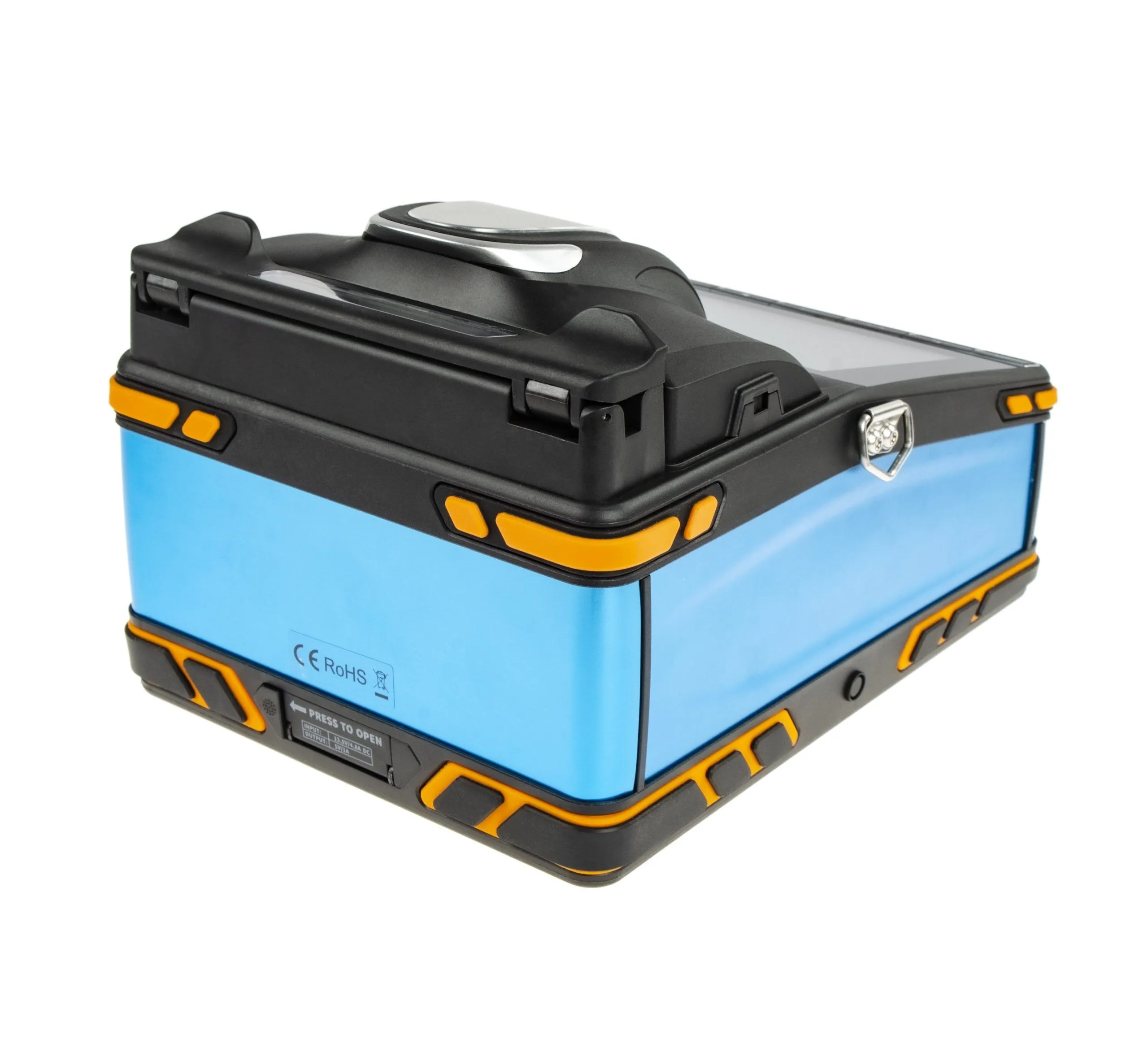

K5 Intelligent Core-Alignment Fiber Optic Fusion Splicer with 6 Motors, Built-in VFL & OPM, for FTTH & Backbone Applications

The K5 Fiber Optic Fusion Splicer is a high-efficiency core alignment fusion splicing tool built for both field technicians and contractors handling large-scale fiber installation. With a powerful 64-bit industrial-grade CPU and 6-motor core positioning system, K5 delivers unmatched precision, speed, and adaptability even in harsh environments — from high altitudes to subzero temperatures.

Whether you’re working on FTTH, backbone, or emergency deployments, K5 ensures you stay ahead of deadlines while maintaining top-tier splicing quality.

Engineering Suitability & Selection Boundaries

1. When This Product Is the Right Choice

• Typically suitable when projects involve mixed fiber types (SMF/MMF/DSF/NZDSF) and need consistent, repeatable splicing across varied field conditions.
• Commonly selected when crews benefit from core/cladding auto-alignment with 6-motor positioning, especially where alignment variability would commonly drive rework.
• Usually a good fit for deployments where an all-in-one workflow is valued and teams want integrated VFL + OPM to verify continuity and power/loss checks without swapping tools.
• Often appropriate when job sites may include high altitude or windy conditions, and the splicer must remain usable within defined environmental limits.
• Typically chosen when productivity matters and teams can consistently use preheating and sleeve-length routines to keep cycle time stable across crews.
• Commonly suitable when field operations need a battery-driven workflow and the team can maintain charge discipline and storage handling for readiness.

2. When This Product May NOT Be Suitable

• May not be appropriate when the work environment frequently exceeds the stated boundaries (e.g., conditions that commonly create condensation or unstable handling), since splice consistency may degrade in practice.
• Typically less suitable when teams cannot maintain electrode lifecycle and cleanliness routines, as performance drift commonly shows up before obvious failure.
• May not be suitable where policy requires external, standardized measurement instruments only, and integrated VFL/OPM verification is not allowed in the acceptance workflow.
• Often not ideal when the required work requires significantly more traceability than basic on-device splice records provide, and consistent export/record handling cannot be ensured.
• May be less suitable when crews regularly splice fiber sizes or coating conditions that are outside the supported cladding/coating windows, as clamp stability and setup repeatability may suffer.

3. Common Selection Mistakes to Avoid

• Treating “6-motor core alignment” as eliminating the need for consistent setup—different fiber categories commonly require different process settings and verification habits.
• Using built-in OPM readings without standardizing wavelength selection and reference routines, which commonly reduces comparability across sites and teams.
• Relying on VFL visibility as a proxy for splice quality—VFL is typically for continuity/fault visibility, not a full indicator of loss behavior.
• Ignoring consumable discipline (electrodes, cleaning, sleeve handling), which commonly increases rework even when fusion time is fast.
• Skipping consistent record export practices, resulting in “records exist” but cannot support troubleshooting reviews or repeated deployment phases.

Product Specifications

Power, Connectivity & Environmental Parameters

Feature Details

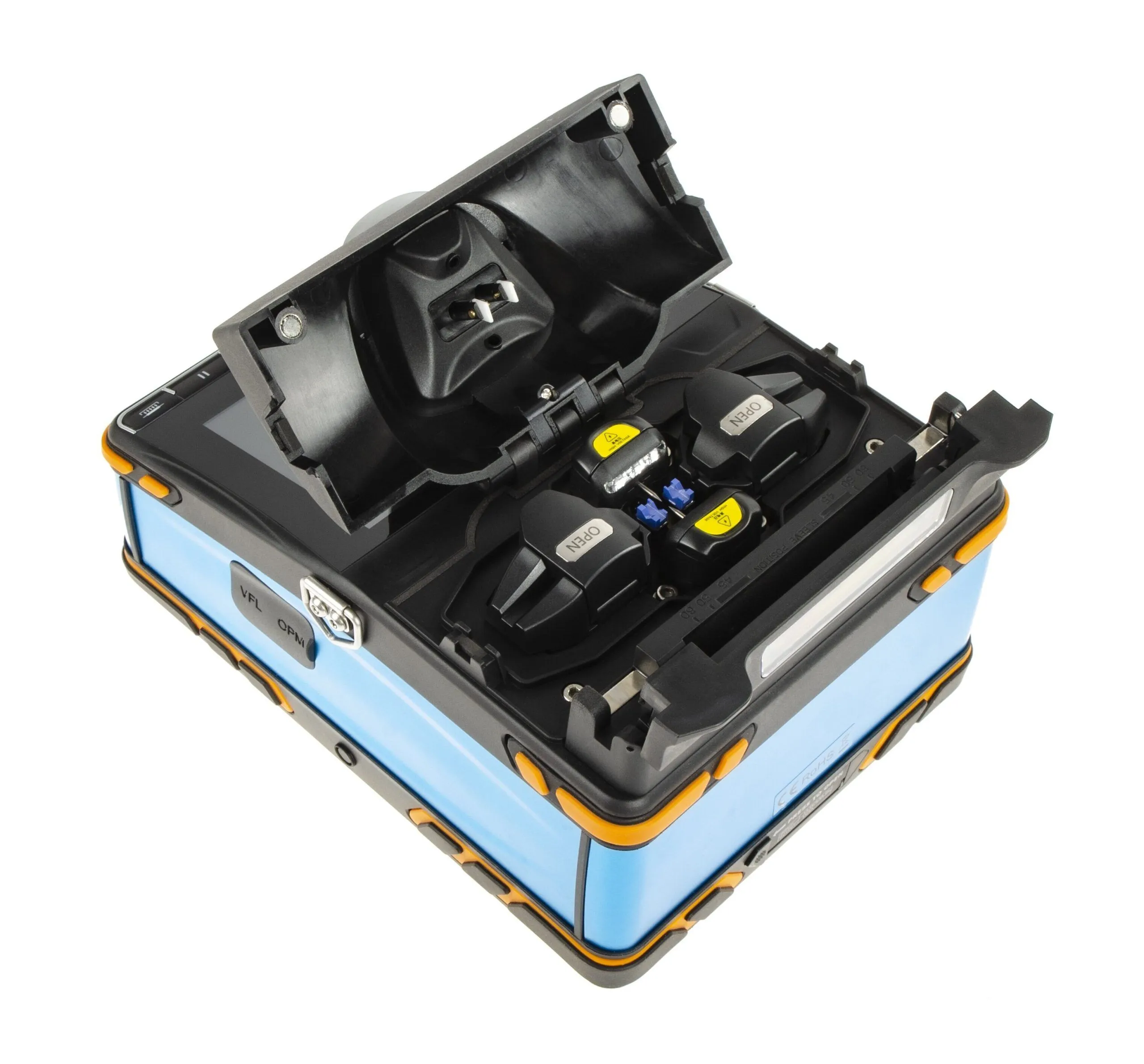

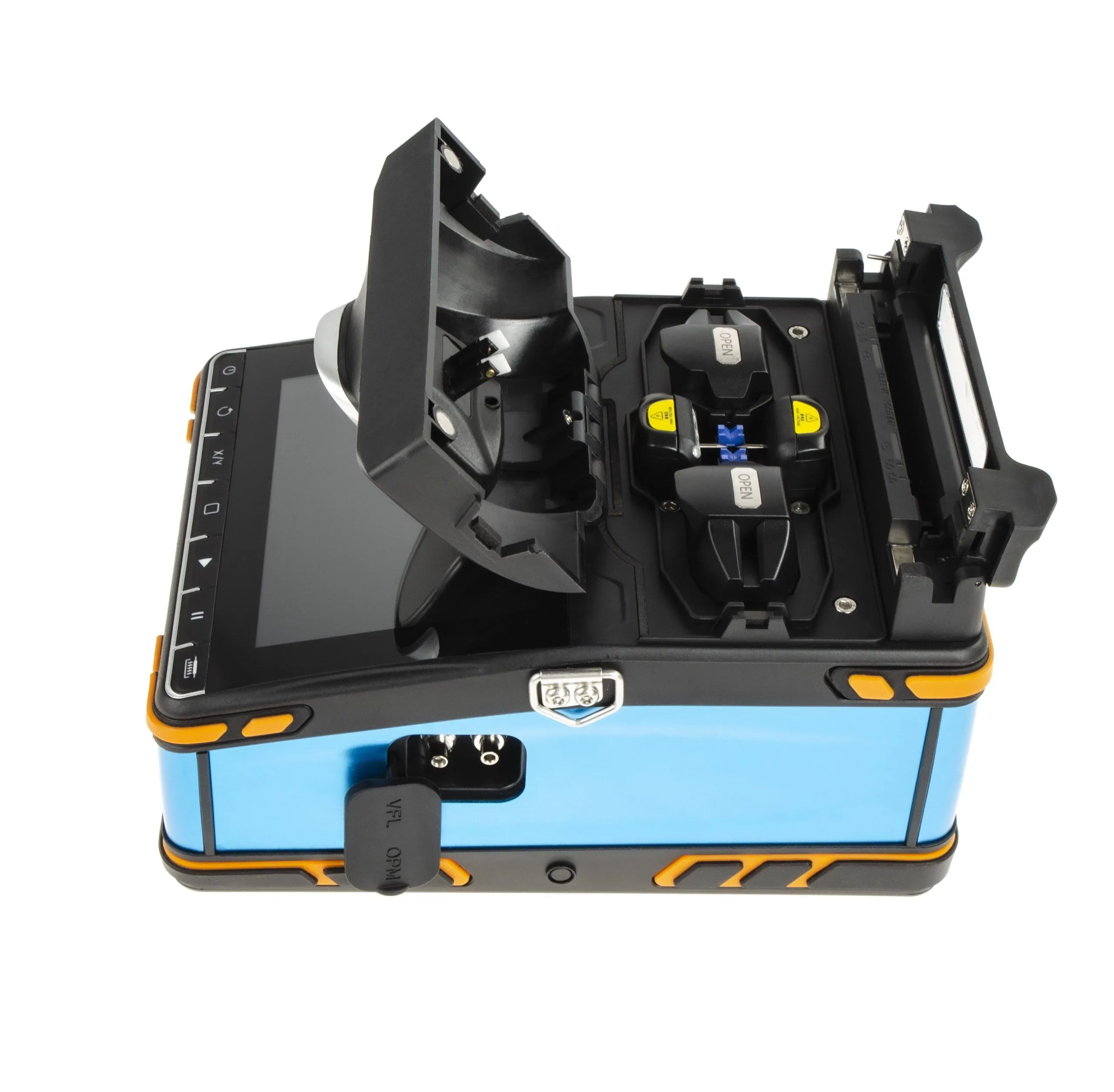

• 6-Motor Core Alignment: Ultra-precise positioning with micro-step technology for lossless fusion.
• Industrial 4-Core CPU: 64-bit architecture guarantees stability even in harsh environments.
• Preheating Function: No downtime—start heating sleeves before fusion ends to save time.
• All-in-One Integration: Combines splicer, VFL, and OPM for a complete field toolkit.
• User-Centric Interface: GUI touch screen and real-time graphical feedback streamline operations.

Application Details

• Telecom network deployment and maintenance
• Fiber-to-the-home (FTTH) installations
• Government and defense fiber projects
• Rural broadband and disaster recovery setups
• Harsh condition operations (cold, high wind, high altitude)

Additional Information

• Supported Heat-Shrink Tubes: 20mm / 30mm / 40mm / 50mm / 60mm
• Data Export: USB support for fusion records and firmware upgrades
• Energy-Saving Mode: Auto power-off and power-saving functionality
• Rental Mode: Ideal for service providers and equipment resellers
• Optional Accessories: Covered wire stripper, additional electrodes, language customization

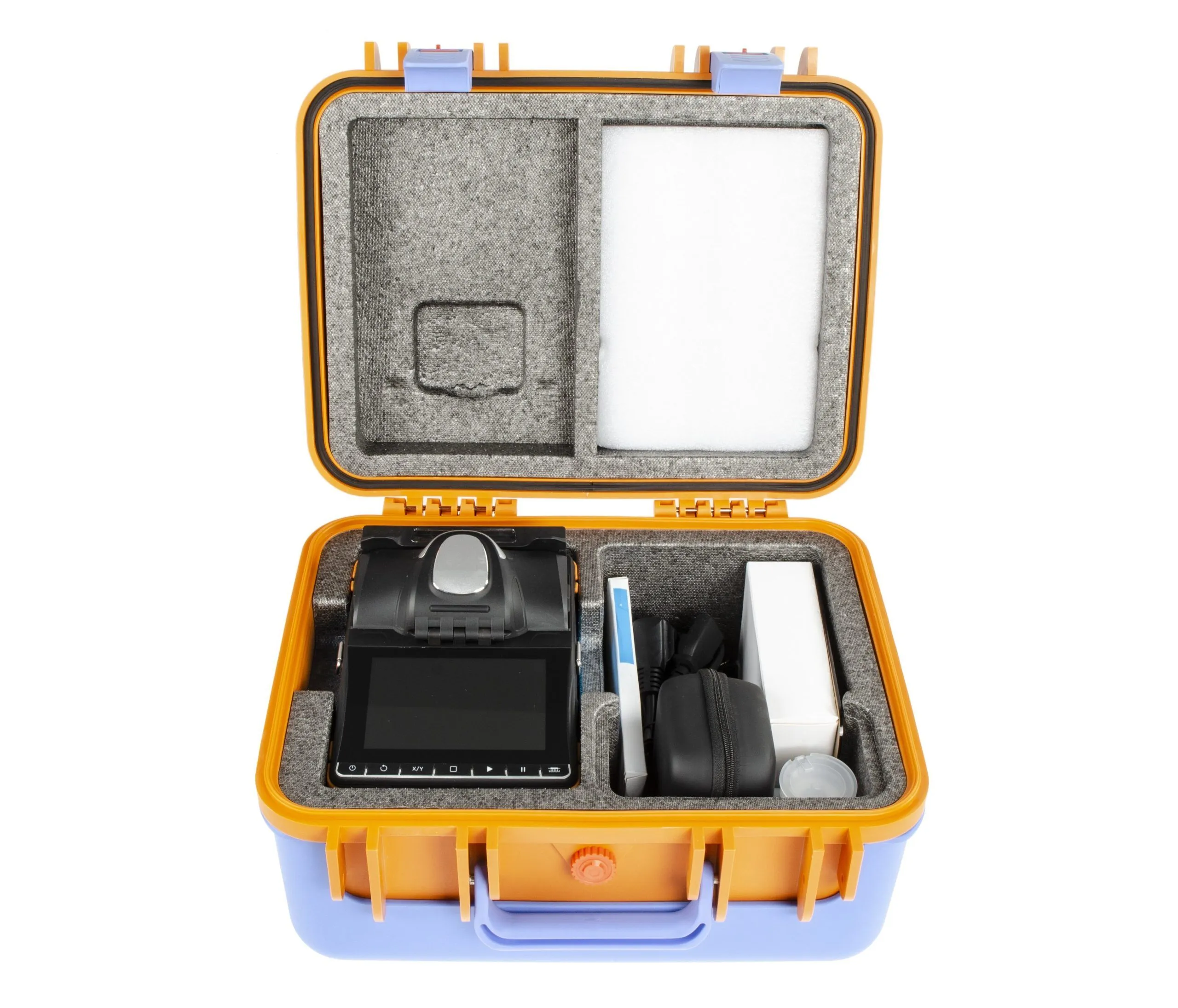

Standard Configuration

• K5 Fusion Splicing Machine
• High-precision fiber cleaver
• Electrode rods × 2
• Fiber stripper + Miller pliers
• Calibration fiber
• Shoulder straps (short & long)
• Alcohol bottle
• Power adapter
• User manual
• Certificate of Conformity
• Warranty Card

FAQ

Q1: What is the difference between K5 and standard 4-motor splicers?
K5’s 6-motor system provides higher alignment accuracy and reliable splicing under more fiber conditions.

Q2: What is the typical heating time?
Around 12–15 seconds.

Q3: Are VFL & OPM included?
Yes, both are built into the splicer.

Q4: Can it operate in harsh environments?
Yes, features shock-proof, dust-proof, and wind-resistant construction.

Q5: Does K5 support SOC connectors?
Yes, fully compatible.

Q6: What display does it use?
Large LCD with intuitive UI for easy operation.

Q7: What industries use K5?
Telecom, ISP field teams, FTTH contractors, backbone maintenance units.
