DESCRIPTION

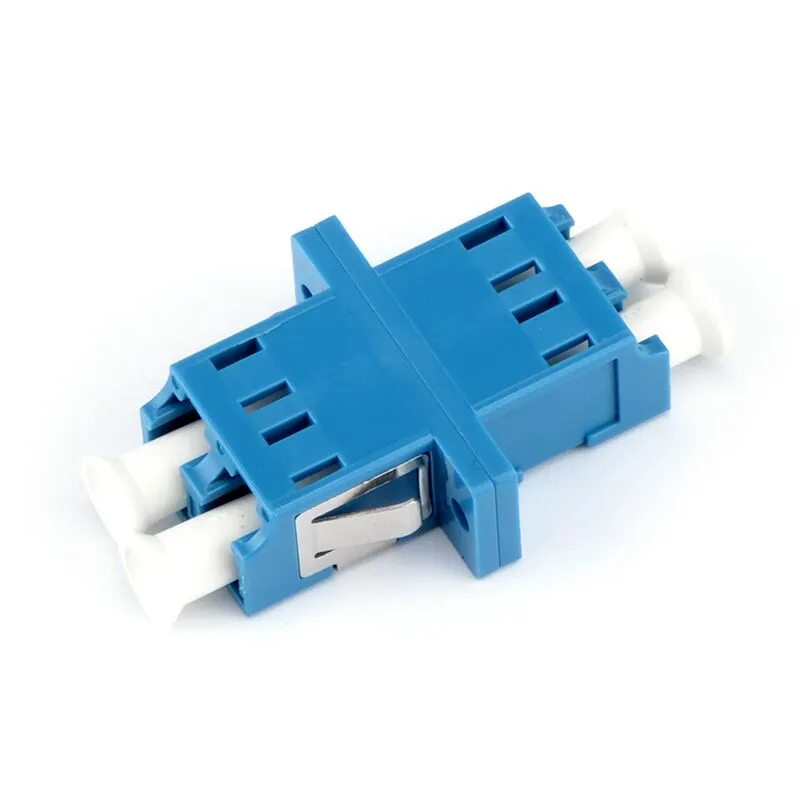

The LC to LC Duplex Single Mode/Multimode Fiber Optic Adapter offers reliable and efficient connectivity between two LC fiber optic connectors. This adapter is designed to maintain excellent signal performance with minimal insertion loss and high return loss, making it an essential component in various networking environments.
Built with high-quality zirconia ceramic sleeves and durable housing options, this adapter ensures long-lasting and stable performance. Its compact duplex configuration supports two fiber connections, optimizing space and enhancing network efficiency, particularly in data centers and telecommunications networks.
Feature Details
- Compact Duplex Design
Facilitates two fiber connections, maximizing space efficiency in high-density environments. - Zirconia Ceramic Sleeves
Provide precise alignment, ensuring minimal signal degradation and superior network performance. - Robust Housing Options
Available in plastic and metal variants, offering durability and reliability in different installation settings. - Versatile Fiber Compatibility
Suitable for both SM and MM fibers, meeting a variety of network needs. - User-Friendly Installation
Plug-and-play functionality for seamless and secure connections.
Product Specifications
| Parameter | Value |
| Adapter Type | LC to LC Duplex Adapter |
| Fiber Mode | Single Mode (SM), Multimode (MM) |
| Connector Compatibility | LC UPC, LC APC |
| Alignment Sleeve Material | Zirconia Ceramic |
| Insertion Loss | ≤ 0.2 dB |
| Durability | ≥ 1000 mating cycles |
| Operating Temperature | -40°C to +75°C |
| Storage Temperature | -40°C to +85°C |
| Housing Material | Plastic or Metal |
| Color Options | Blue, Beige, Aqua, Green, Pink, Lime Green |
| Mounting Style | Flanged or Flangeless |
Application Details
- Telecommunications Networks
Ensures stable and reliable fiber connections for large-scale network infrastructures. - Data Centers
Supports high-density installations, optimizing space and improving network efficiency. - FTTH Systems
Provides seamless connectivity for fiber-to-the-home installations, enhancing user experience. - CATV Networks
Facilitates stable and efficient data and video transmission. - Testing Equipment
Ideal for precise and reliable connections in fiber optic testing instruments.
FAQ
Q1: What is the function of an LC to LC duplex fiber optic adapter?
It is used to connect two LC duplex connectors to extend the length of a fiber optic cable. This allows flexible patching and cable management in fiber networks.
Q2: Is this adapter suitable for both single mode and multimode fiber?
Yes, it supports both single mode (SM) and multimode (MM) fibers. Connector options include LC/UPC and LC/APC depending on application requirements.
Q3: How does the zirconia ceramic sleeve improve performance?
The zirconia ceramic sleeve provides precise fiber alignment. This helps achieve low insertion loss and high return loss for stable signal transmission.
Q4: What housing options are available?
The adapter is available with plastic or metal housing. This allows selection based on installation environment and durability requirements.
Q5: Can this adapter be used in high-density applications?
Yes, the compact duplex design supports two fiber connections in a small form factor. It is ideal for patch panels, ODFs, and data center environments.
Q6: What are the typical application scenarios?
It is widely used in telecommunications networks, data centers, FTTH systems, CATV networks, and fiber optic testing equipment.
