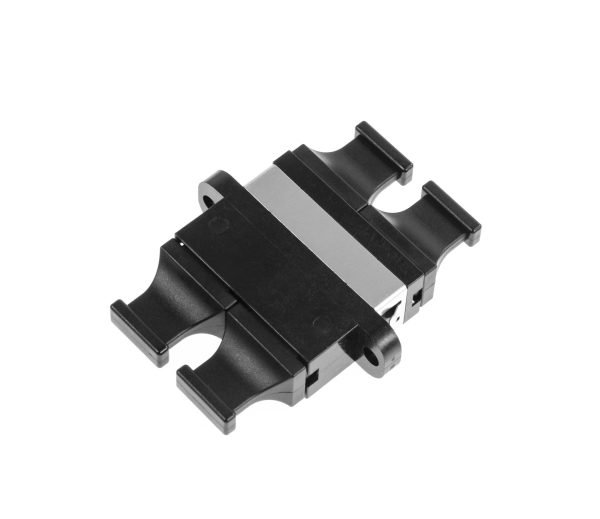

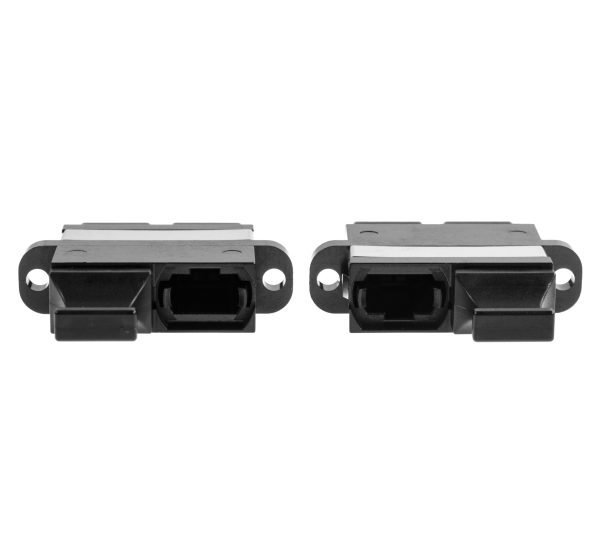

MPO MTP Duplex Fiber Optic Adapter – With Flange for High-Density Cabling

The MPO/MTP Duplex Fiber Optic Adapter with Flange is engineered to streamline high-density fiber optic connections in modern networks. With a compact duplex design, this adapter supports two MPO/MTP connectors, offering superior performance and reduced signal loss.

Designed for demanding network environments, the integrated flange secures the adapter during installation, ensuring stable connections. Built with high-precision ceramic sleeves, it delivers consistent alignment for minimal insertion loss. Compatible with MPO and MTP connectors, this adapter is suitable for data centers, telecom networks, and FTTx installations.

1. Optimized Duplex Design
   • Accommodates two MPO/MTP connectors for enhanced port density and efficient space utilization.
   • Ideal for environments requiring high-capacity fiber optic connections.
2. Integrated Flange for Stability
   • Flange mount ensures secure placement in patch panels and enclosures, minimizing movement and disconnections.
   • Suitable for both horizontal and vertical mounting.
3. Precise Ceramic Sleeves
   • High-precision zirconia ceramic alignment sleeves ensure reliable MPO/MTP connection alignment.
   • Reduces insertion loss (≤0.2dB) and maintains high return loss (≥60dB for single mode).
4. Durable Construction
   • Constructed with high-quality polymer housing for durability in harsh conditions.
   • RoHS compliant, ensuring environmental safety and performance reliability.
5. Universal Compatibility
   • Works with MPO and MTP connectors across OM3/OM4 multimode and OS2 single-mode fiber types.
   • Supports standard and elite performance grades.

• High-Density Data Centers: Provides stable MPO/MTP connectivity for large-scale network interconnections.
• Telecom Patch Panels: Ensures organized and efficient patching in distribution frames.
• FTTx Infrastructure: Facilitates MPO/MTP coupling in FTTH and FTTP deployments.
• Enterprise Networks: Reliable for high-capacity backbone and access-level connections.
• Industrial and Harsh Environments: Performs consistently in challenging conditions, maintaining network integrity.

Q1: What’s the function of this MPO/MTP adapter?
It aligns and connects two MPO/MTP connectors precisely, ensuring reliable multi-fiber transmission with minimal loss.

Q2: What’s the difference between flange and flangeless versions?
The flange version allows secure mounting on panels or cassettes, providing mechanical stability in high-vibration environments.

Q3: Can it support both standard and Elite MPO connectors?
Yes. It is compatible with both standard and Elite-grade MPO/MTP connectors in 8, 12, 16, or 24 fibers.

Q4: What is the typical insertion loss performance?
Insertion loss is typically ≤ 0.2 dB for Elite and ≤ 0.35 dB for standard types, ensuring optimal channel performance.

Q5: What material is the alignment sleeve made from?
High-precision Zirconia ceramic materials are used to ensure excellent durability and fiber core alignment accuracy.

Q6: Are key-up/key-down orientations available?
Yes. Both key-up/key-down and key-up/key-up configurations are available depending on polarity requirements.

Q7: What are the main applications?
Commonly used in data center cassettes, backbone trunks, and MPO-based high-speed systems (40G/100G/400G).
