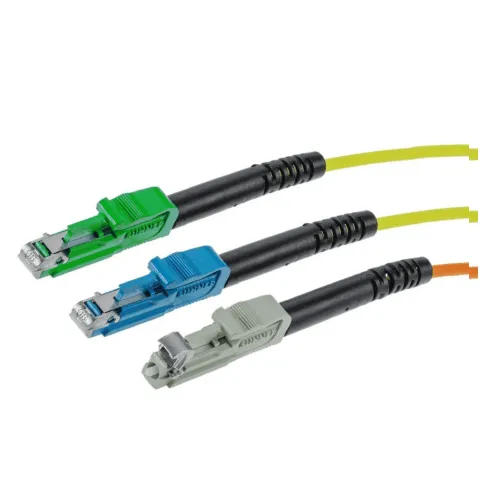

LX.5 to LX.5 Fiber Optic Patch Cord – for Legacy Network Systems

The LX.5 to LX.5 Fiber Optic Patch Cord is designed to support high-density network environments with its compact connector design and superior optical performance. The LX.5 connector, with a 1.5mm ferrule, offers a 50% reduction in connector size compared to LC connectors, making it ideal for high-density patch panels and limited-space installations. This patch cord is built to deliver reliable connections, exceptional signal integrity, and user-friendly handling.

Engineering Suitability & Selection Boundaries

When This Product Is the Right Choice

• Typically selected for high-density patch panels and switching environments where port density and front-panel space are primary constraints.

• Commonly used when network designs explicitly support LX.5 (VSFF-class) connector ecosystems, including compatible adapters, cassettes, and panels.

• Suitable for deployments requiring push-pull access to reduce handling difficulty in crowded racks or deep chassis.

• Often applied in next-generation data centers or upgraded enterprise networks aiming to increase fiber density without expanding rack footprint.

When This Product May NOT Be Suitable

• May not be appropriate for legacy LC-based infrastructures where panels, adapters, or cleaning tools are not designed for LX.5 interfaces.

• Not typically selected for environments requiring frequent cross-compatibility with standard LC connectors, as LX.5 is not mechanically interchangeable.

• May be unsuitable in field deployments where installer familiarity, tooling availability, or spare-part ecosystemsare limited to LC or SC standards.

Common Selection Mistakes to Avoid

• Assuming LX.5 patch cords can be deployed as drop-in replacements for LC patch cords without upgrading the corresponding adapter or panel infrastructure.

• Selecting LX.5 purely for size reduction without evaluating end-to-end connector ecosystem readiness across the network.

• Mixing LX.5 and LC interfaces in the same rack without clear port identification and maintenance procedures, increasing the risk of handling errors.

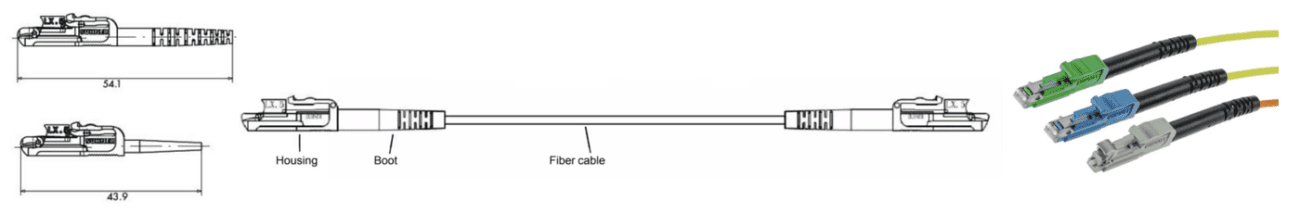

1. Connector Characteristics:
   • LX. 5 connectors are engineered for precision alignment and stability.
   • Push-pull locking design simplifies installations and maintenance in tight spaces.
2. Fiber Compatibility:
   • Supports both single-mode and multimode fibers, ensuring flexibility for various applications.
3. Cable Customization:
   • Available in different jacket types (PVC, LSZH, OFNP) and diameters (e.g., 2.0mm, 3.0mm).
4. Performance:
   • Optimized for low insertion loss and high return loss, ensuring stable and high-speed data transmission.

• Telecommunication Systems: Ideal for backbone networks requiring compact and stable connectivity.
• Data Centers: Enhances rack density with smaller connectors and cables.
• FTTH/FTTB Installations: Supports efficient and compact wiring in residential and commercial buildings.
• Industrial Networks: Provides high durability in challenging environments.

• Customization Options:
  • Connector polishing: PC (Single Mode or Multimode), APC (Single Mode), cable length, and fiber type can be tailored to your project needs.

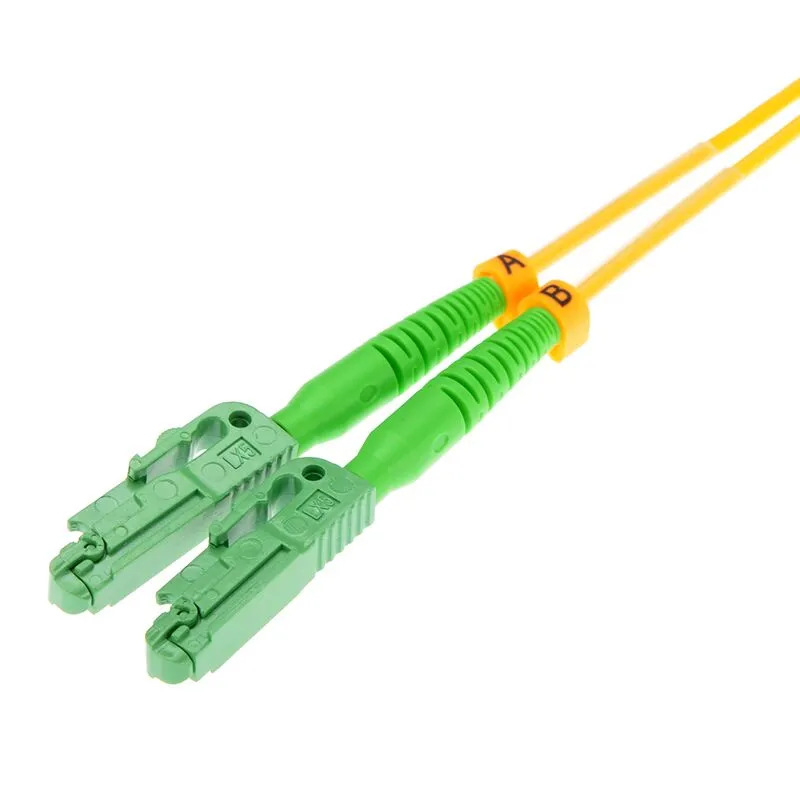

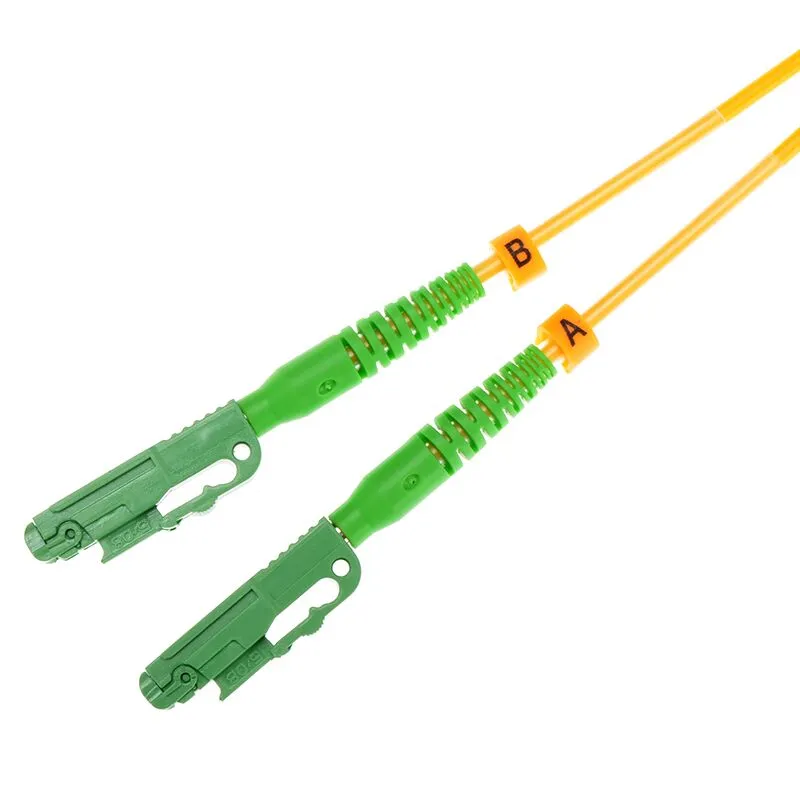

  • Fiber Structure: Simplex or Duplex (optional).
  • OEM services for branding, labeling, and packaging are available.
• Compliance Standards:
  • Meets IEC 61754-31 standards for LX.5 connectors.
  • RoHS and REACH compliant for environmental safety.

FAQ

Q1: What is special about LX.5 connectors?
LX.5 connectors are designed for precision alignment and stability, with a push-pull locking mechanism that simplifies installation and maintenance, especially in tight spaces.

Q2: Which fiber types are compatible with LX.5 patch cords?
They support both single-mode and multimode fibers, providing flexibility for a variety of network applications.

Q3: Can LX.5 fiber patch cords be customized?
Yes, they can be customized with different jacket types such as PVC, LSZH, or OFNP, and with various diameters like 2.0mm or 3.0mm to suit specific project requirements.

Q4: What are the performance specifications of LX.5 patch cords?
They are optimized for low insertion loss and high return loss, ensuring stable, high-speed, and reliable data transmission.

Q5: What applications are LX.5 patch cords suitable for?
They are ideal for data centers, enterprise networks, telecom systems, and any scenario requiring precise, high-performance fiber connections.

Q6: How easy is it to install LX.5 patch cords?
The push-pull locking design allows quick and secure installation without specialized tools, reducing setup time and maintenance effort.

Q7: Are LX.5 patch cords suitable for both indoor and outdoor use?
Depending on the jacket material, they can be used indoors (PVC, LSZH) or in riser/plenum-rated environments (OFNP) for enhanced safety and durability.

Q8: What is the typical delivery time for LX.5 fiber patch cords?
Standard lengths are usually ready for fast delivery within 3–5 working days, while customized lengths or jackets may require 5–10 working days.
