DESCRIPTION

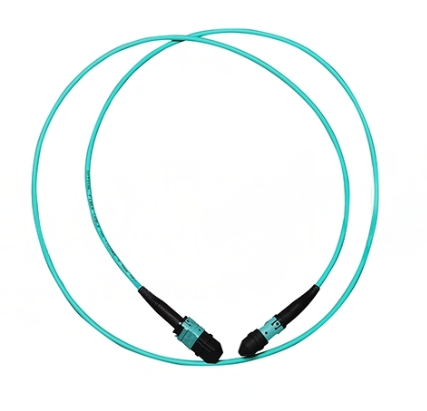

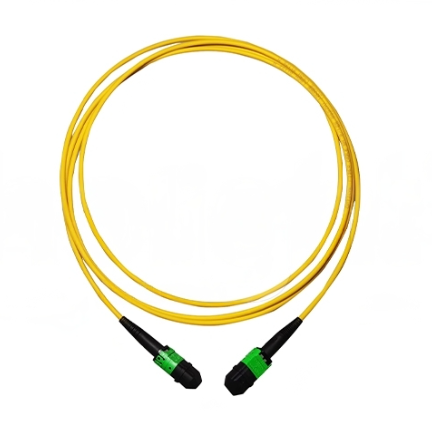

12F/24F Mini Plus MPO Single-Mode / Multimode Fiber Optic Patch Cable
The Mini Plus MPO to Mini Plus MPO 3.0mm OFNP Fiber Patch Cord is an advanced, high-density fiber optic cable designed for efficient data transmission in demanding network environments. Constructed with OFNP-rated materials for plenum applications, this patch cord supports secure connections between Mini Plus MPO connectors, ensuring minimal insertion loss and superior signal integrity. Its compact 3.0mm diameter makes it ideal for high-density installations where space optimization and fire-resistance are priorities.
Standard configuration is OFNP for plenum spaces; LSZH or PVC jackets are available upon request.
Key Features
- High-Performance Mini Plus MPO Connectors: Provides reliable, low-loss connections between Mini Plus MPO ports, supporting high-bandwidth applications.
- Compact 3.0mm Diameter: The slim form factor enables effective cable management in data centers and dense network configurations.
- OFNP Plenum Rating: Built with fire-retardant materials suitable for plenum spaces, offering safety and compliance in commercial buildings.
- Optimized for High-Density Installations: Ideal for environments that require organized cabling solutions without compromising performance.
- Durable and Flexible Design: Engineered to withstand bending and physical stress, ensuring longevity and stable connections.
Technical Specifications
| Connector | Mini Plus MPO | Jacket OD | 3.0mm |
| Fiber Mode | SM/MM | Jacket Color | Yellow/Aqua |
| Polish | UPC to UPC | Wavelength | 850/1300nm (MM) / 1310/1550nm (SM) |
| Fiber Type | 12 & 24 Fibers | Jacket Material | LSZH/PVC/OFNP |
| Insertion Loss | ≤0.75 dB (Standard), ≤0.35 dB (Elite) | Return Loss | ≥30dB |
| Operating Temperature | -40-75℃ | Storage Temperature | -45-85℃ |
Applications
- Data Centers: Perfect for high-density connections in data centers, providing organized and reliable fiber management.
- Enterprise Networks: Suitable for high-performance LAN and SAN applications in enterprise environments.
- Telecommunications Networks: Supports robust connectivity in telecom installations, ensuring efficient data transmission in critical areas.
- Plenum-Rated Installations: Ideal for environments that require OFNP-rated cables, such as commercial buildings with air-handling spaces.
Installation and Maintenance
- Easy to Install: The Mini Plus MPO connectors allow for quick and tool-free installation, making it user-friendly for technicians.
- Efficient Space Management: The 3.0mm slim cable design helps save valuable space in crowded data centers.
- Low Maintenance: Constructed for durability and minimal signal loss, reducing the need for frequent replacements or adjustments.
FAQ
Q1: What are Mini Plus MPO connectors?
Mini Plus MPO connectors provide high-performance, low-loss connections between MPO ports, supporting high-bandwidth applications in modern data networks.
Q2: What is the cable diameter and why is it important?
This patch cord has a compact 3.0mm diameter, which simplifies cable management in data centers and dense network configurations without sacrificing performance.
Q3: What does OFNP plenum rating mean?
OFNP indicates the cable jacket is fire-retardant and suitable for plenum spaces, ensuring safety and compliance with building codes in commercial installations.
Q4: Are these cables suitable for high-density installations?
Yes, the slim and organized design makes them ideal for high-density environments, enabling clean and efficient cabling layouts.
Q5: How durable and flexible are Mini Plus MPO patch cords?
They are engineered to withstand bending, pulling, and other physical stresses, providing stable connections and long-term reliability.
Q6: Can these cables be customized?
Yes, options for custom lengths, fiber types, and connector orientations are available to meet specific deployment requirements.
Q7: What applications are Mini Plus MPO patch cords suitable for?
They are perfect for data centers, enterprise networks, high-speed interconnects, and any environment requiring high-density, high-performance fiber connectivity.
Q8: What is the typical delivery time for these cables?
Standard lengths are usually available within 3–5 working days, while customized configurations may require 5–10 working days depending on specifications.
