DESCRIPTION

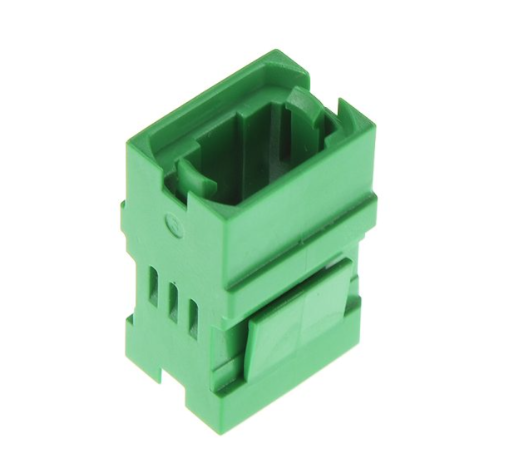

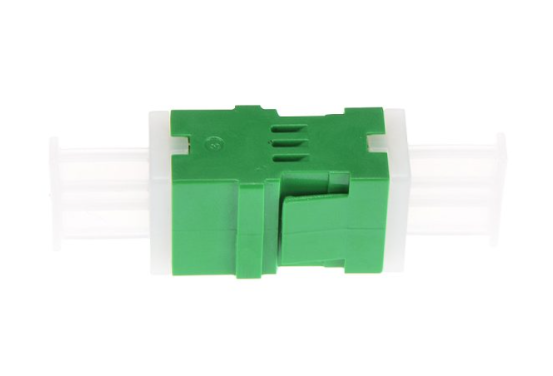

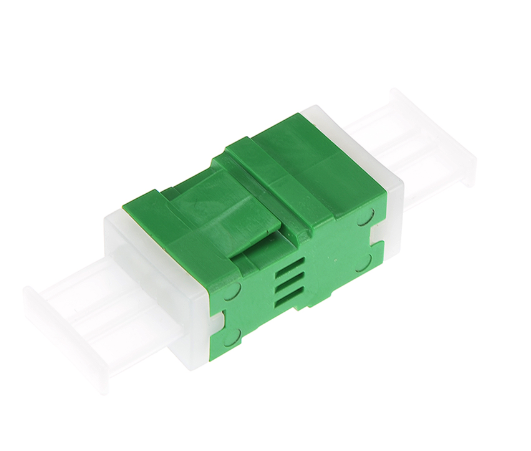

The MPO APC Fiber Adapter without Flange, Plastic is designed for high-performance MPO single mode connections in data centers, telecom, and FTTH systems. Featuring a plastic housing and a flangeless structure, this adapter is optimized for space-saving installation in high-density environments. With its zirconia ceramic alignment sleeves, it ensures low insertion loss and high return loss, making it a reliable choice for backbone networks, rack systems, and optical testing.
Engineering Suitability & Selection Boundaries
- When This Product Is the Right Choice
- Typically selected for single-mode MPO APC patching where back-reflection control is required in backbone links, rack systems, or test setups using MPO-based architectures.
- Commonly used in high-density panels/cassettes where a flangeless clip-in structure matches the cassette/adapter-plate retention method and space efficiency is a priority.
- Usually appropriate when the project standardizes on ceramic alignment sleeves for repeatable mating performance across multiple reconnect cycles.
- Typically suitable when the connector ecosystem and handling workflow are controlled enough to keep MPO ferrule cleanliness/inspection consistent over the service life.
- When This Product May NOT Be Suitable
- May not be suitable when the host hardware requires flange-based retention or screw fixing, since a flangeless adapter may not meet the panel’s mechanical retention expectation.
- Commonly unsuitable if the link segment is not standardized on APC MPO conventions end-to-end, as mixed polish expectations can lead to commissioning errors and inconsistent reflection behavior.
- May not be appropriate in environments where contamination control is difficult and connectors are frequently handled without a defined cleaning routine, as MPO performance drift is commonly contamination-driven rather than sleeve-driven.
- Typically not suitable for unsealed outdoor exposure, since this adapter is intended for controlled environments and relies on the enclosure for environmental protection.
- Common Selection Mistakes to Avoid
- Selecting “MPO APC” without confirming the system’s polarity/keying method and cassette mapping, which commonly causes lane-order or Tx/Rx mapping issues during turn-up.
- Treating the flangeless body as universally compatible without checking cassette cutout/clip standards, which commonly results in poor retention or fit issues.
- Assuming low insertion loss guarantees stability while neglecting end-face inspection and cleaning practices for MPO ferrules, which typically determines real-field performance.
FEATURE DETAILS
- Flangeless Compact Design: Perfect for high-density optical panels and cassettes.
- APC Performance: Minimizes back reflection, ensuring signal integrity in single mode systems.
- Lightweight Plastic Housing: Cost-effective, corrosion-resistant, and easy to integrate.
- Zirconia Alignment Sleeve: Guarantees stable fiber core alignment with minimal loss.
- Long-term Durability: Reliable even after 1000+ connections in demanding networks.
PRODUCT SPECIFICATIONS
| Polish Type | PC | APC |
| Fiber Mode | Single Mode | Single Mode |
| Housing Color | Black | Green |
| Insertion Loss | < 0.3 dB | < 0.3 dB |
| Durability (500 Mating) | < 0.1 dB | < 0.1 dB |
| Operation Temperature | -40 to 80℃ | -40 to 80℃ |
| Retention Force | 200-600 N | 200-600 N |
| Tensile Strength | 10 kgf | 10 kgf |
| Housing Material | Polyethermide | Polyethermide |
| Mounting Style | Clip | Clip |
| Sleeve Alignment Material | Ceramic (Grade A) | Ceramic (Grade A) |
| Housing Material | Plastic | Plastic |
APPLICATION DETAILS
- Data Centers: High-density patch panels and MPO cassettes.
- Telecom Networks: APC connections for long-haul and metro networks.
- FTTH/FTTx: MPO-based distribution frames and customer premises equipment.
- Optical Laboratories: Test benches requiring MPO to MPO single mode connections.
- Enterprise LANs: Simplified fiber interconnection with MPO cabling systems.
FAQ
- What is the difference between APC and UPC MPO adapters?
APC adapters provide angled physical contact, reducing back reflection, while UPC has flat contact with slightly higher reflectance.
- Why choose a flangeless MPO adapter?
The flangeless design is ideal for high-density patch panels and cassettes where space optimization is critical.
- Can this adapter be used for multimode fibers?
This version is designed for single mode APC connections. MPO multimode adapters are available separately.
- What is the material of the housing?
It uses durable plastic, making it lightweight and resistant to environmental corrosion.
- How many times can it be reused?
It supports ≥1000 mating cycles without significant performance degradation.
- Does it comply with industry standards?
Yes, it meets IEC 61754, TIA/EIA, and RoHS standards.
