DESCRIPTION

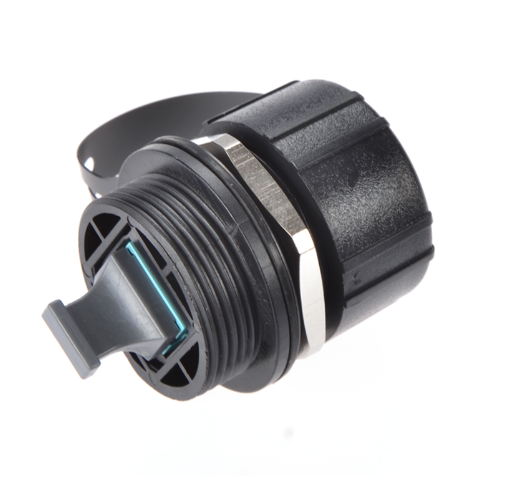

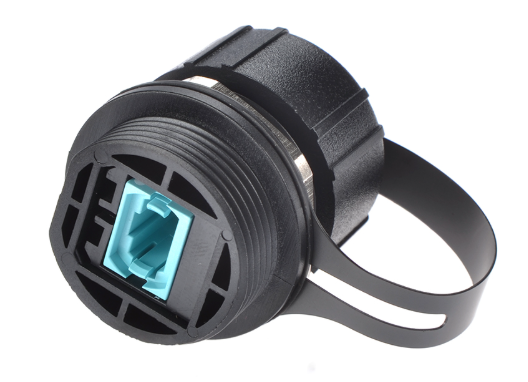

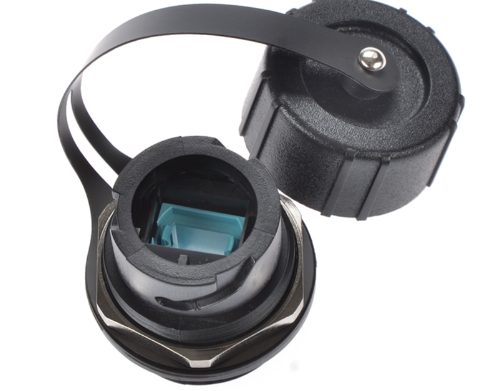

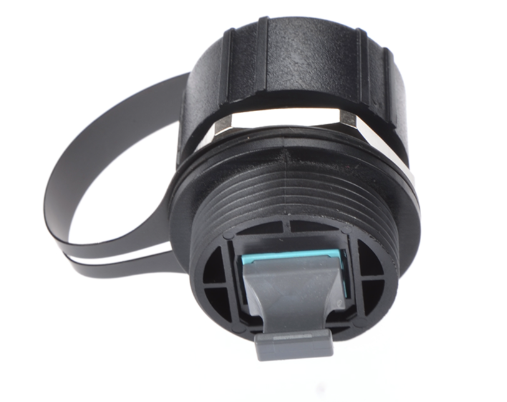

ODVA MPO/MTP Waterproof Fiber Adapter for cabinets, 0.2dB insertion loss
The ODVA MPO/MTP Waterproof Fiber Adapter for Cabinets is specifically designed to provide reliable and secure MPO/MTP fiber connections in outdoor and industrial applications. Its IP67-rated housing ensures complete protection against water, dust, and harsh environmental conditions.
Equipped with a durable locking mechanism, this adapter offers secure MPO/MTP connectivity, making it ideal for outdoor cabinets, telecom systems, and FTTA/FTTH projects. Its robust design and flexible mounting options ensure seamless integration into various outdoor setups.
Engineering Suitability & Selection Boundaries
When This Product Is the Right Choice
Selected for outdoor telecom cabinets and FTTA enclosures where MPO/MTP connections must be securely mounted and environmentally sealed.
Suitable for deployments requiring IP67-level protection against rain, dust, and environmental exposure inside outdoor cabinets.
Commonly used in 5G base station cabinets, FTTA/FTTH distribution cabinets, and industrial outdoor network enclosures.
Appropriate when the ODVA MPO interface standard is fixed and clearly defined across the cabinet-side and cable assemblies.
When This Product May NOT Be Suitable
May not be suitable for cabinet locations exposed to standing water or long-term flooding, where IP68-rated solutions are required.
Not recommended for applications involving frequent reconnection, as repeated handling may affect long-term sealing reliability.
Unsuitable if the cabinet design does not provide adequate strain relief or internal cable management.
Not ideal for indoor data center or telecom room environments where standard MPO/MTP adapters are sufficient.
Common Selection Mistakes to Avoid
Treating this adapter as a standard MPO/MTP coupler, ignoring its role as a cabinet sealing interface.
Selecting IP67 protection without evaluating condensation, temperature cycling, or cabinet drainage design.
Mixing ODVA MPO interfaces with non-ODVA MPO connectors, leading to mechanical or sealing incompatibility.
Overlooking mounting method selection (snap-in vs flange) during cabinet panel design.
Feature Details
- Waterproof and Dustproof Design
- IP67-rated housing provides superior environmental sealing for outdoor and industrial applications.
- Protects fiber connections from water, dust, and debris, ensuring long-term reliability.
- High-Performance MPO/MTP Compatibility
- Supports standard and elite MPO/MTP connectors for multimode (OM3/OM4) and single-mode (OS2) fibers.
- Low insertion loss ensures high-quality signal transmission.
- Durable Construction
- Made from high-strength polymer with UV and chemical resistance for outdoor durability.
- Withstands extreme temperatures and environmental stress.
- Secure Locking Mechanism
- Integrated locking ensures a vibration-resistant connection for stable performance.
- Suitable for high-stress environments like remote radio head installations.
- Easy Installation and Integration
- Compact, lightweight design for simple mounting into outdoor cabinets and enclosures.
- Supports quick connections and disconnections for efficient maintenance.
Product Specifications
| Parameter | Specification |
| Adapter Type | MPO/MTP Waterproof Adapter |
| IP Rating | IP67 |
| Connector Compatibility | MPO/MTP Multimode (OM3/OM4) and Single Mode (OS2) |
| Insertion Loss | ≤0.35dB |
| Return Loss | ≥60dB (Single Mode); ≥30dB (Multimode) |
| Material | High-Durability Polymer |
| Mounting Style | Snap-in or Flange Mount |
| Operating Temperature | -40°C to +75°C |
| Storage Temperature | -40°C to +85°C |
Application Details
- Outdoor Telecom Cabinets: Protects MPO/MTP connections in harsh environments, ensuring reliable telecom network operations.
- Remote Base Stations: Maintains stable connections between BBUs and RRHs in wireless communication systems.
- FTTx Projects: Provides robust connections in fiber-to-the-premises setups, supporting high-speed data transmission.
- Industrial Environments: Ensures reliable performance in oil fields, military installations, and other demanding setups.
- Video Surveillance Systems: Supports secure fiber connections for outdoor monitoring and CCTV applications.
FAQ
Q1: What’s the difference between this cabinet version and the relay extension version?
The cabinet version features a flange-mounted design for fixed panel integration, ideal for telecom cabinets.
Q2: What IP rating does it provide?
It’s rated IP67, offering complete protection against dust and water ingress.
Q3: Is it compatible with armored cables?
Yes, it can be used with armored or non-armored ODVA MPO/MTP cable assemblies.
Q4: Can it be used in 5G base stations?
Yes, it’s widely adopted in outdoor 5G, FTTA, and small-cell cabinet installations.
Q5: How does it prevent water leakage?
It uses dual-layer rubber gaskets and threaded coupling for a watertight seal.
Q6: Does it support both singlemode and multimode systems?
Yes, available for SM (OS2) and MM (OM3/OM4) configurations.
Q7: What’s the expected lifetime of the adapter?
It provides over 500 mating cycles with stable optical performance in outdoor use.
