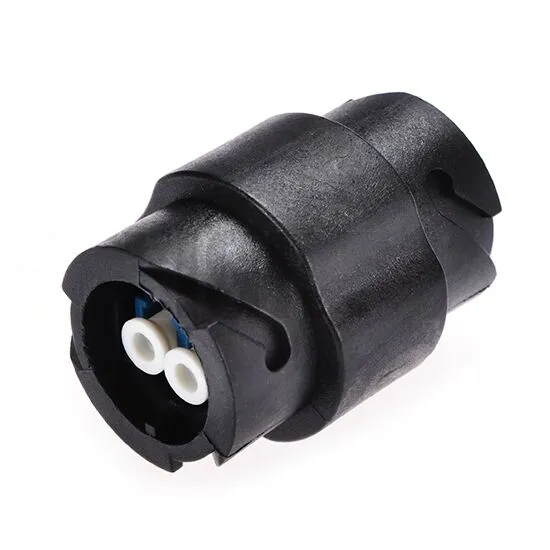

ODVA LC Duplex Waterproof Fiber Optic Adapter – for Outdoor Extension and FTTA Deployment

The ODVA LC Duplex Waterproof Fiber Optic Adapter is designed to extend LC duplex fiber links in outdoor and FTTA deployments where environmental protection is essential. Featuring an IP67-rated sealed housing and precision-aligned LC interfaces, it delivers consistent optical performance while safeguarding connections against moisture, dust, and temperature fluctuations. This adapter is suitable for telecom, CATV, industrial, and testing environments that demand long-term reliability.

1. When This Product Is the Right Choice

• Typically selected for outdoor extension points and FTTA deployments where an LC duplex link must be extended through a sealed interface to reduce moisture/dust exposure at cabinets, towers, or bulkhead locations.
• Commonly used when the site needs an ODVA-style waterproof structure and expects repeated mate/de-mate cycles with stable alignment under vibration and temperature variation.
• Usually appropriate when the installation method is panel/bulkhead mounting, allowing the sealed housing to act as the environmental boundary between outside and inside equipment space.
• Typically suitable when link planning depends on predictable low insertion loss behavior across an added interconnect in the outdoor segment.

2. When This Product May NOT Be Suitable

• May not be suitable if the project’s outdoor ecosystem is standardized on a different hardened interface family than ODVA, as cross-family mismatch commonly results in non-mating or inconsistent field handling.
• Commonly unsuitable when the enclosure build cannot maintain proper seating and sealing (contaminated gasket surfaces, incomplete coupling engagement), since sealing failures typically appear before optical loss trends are noticed.
• May not be appropriate when the site cannot keep a consistent fiber/interface convention (e.g., SM/MM and optional APC expectations) across the segment, as mixed conventions commonly cause commissioning errors and rework.
• Typically not suitable when the deployment requires operating conditions outside the stated temperature range, because environmental cycling margin becomes the dominant reliability factor.

3. Common Selection Mistakes to Avoid

• Selecting “IP67” alone without defining the mating ecosystem (ODVA interface expectations and field handling), which commonly leads to spare-part incompatibility and on-site delays.
• Ignoring bulkhead installation details (cable slack, strain management, and connector cleanliness), which commonly drives intermittent faults in outdoor cabinets over time.
• Using the adapter as a substitute for enclosure-level protection while neglecting panel sealing and cable entry management, which typically determines long-term stability in harsh environments.

IP67 Waterproof Design
The sealed ODVA housing prevents water and dust ingress, ensuring stable fiber connections in outdoor cabinets, towers, and industrial sites.

Low Insertion Loss Performance
With insertion loss controlled to ≤0.2 dB, the adapter maintains signal integrity across extended fiber runs and minimizes network attenuation.

High Precision Alignment
Ceramic alignment sleeves and accurate LC interface tolerances ensure excellent repeatability and interchangeability during multiple mating cycles.

Mechanical Durability
Designed for repeated connections, vibration, and temperature variation, the adapter supports long service life in harsh deployment conditions.

• Used in FTTA deployments to extend LC duplex patch cords between RRUs and baseband units
• Installed in outdoor telecom cabinets for protected fiber interconnection
• Applied in CATV access networks exposed to weather and dust
• Integrated into industrial Ethernet systems requiring sealed optical links
• Suitable for test equipment and temporary outdoor fiber extensions

Q1: What is the main purpose of an ODVA LC duplex waterproof adapter?
A1: It is used to connect two LC duplex connectors while providing environmental protection for outdoor or harsh installations.

Q2: Is this adapter suitable for FTTA deployments?
A2: Yes. The IP67-rated waterproof structure makes it ideal for FTTA base stations and outdoor radio access networks.

Q3: What fiber types are supported?
A3: The adapter supports single-mode and multimode fibers, with APC options available depending on configuration.

Q4: What is the typical insertion loss?
A4: The typical insertion loss is ≤0.2 dB, ensuring minimal impact on optical link budgets.

Q5: Can it be used in high-temperature or cold environments?
A5: Yes. It is designed to operate reliably within a temperature range of -25°C to +70°C.

Q6: Is customization available for different interfaces or packaging?
A6: Custom configurations and packaging options are available upon request to match specific project requirements.

Q7: How is the adapter typically installed?
A7: It is commonly mounted through panels or bulkheads in outdoor enclosures, cabinets, or equipment housings.
