DESCRIPTION

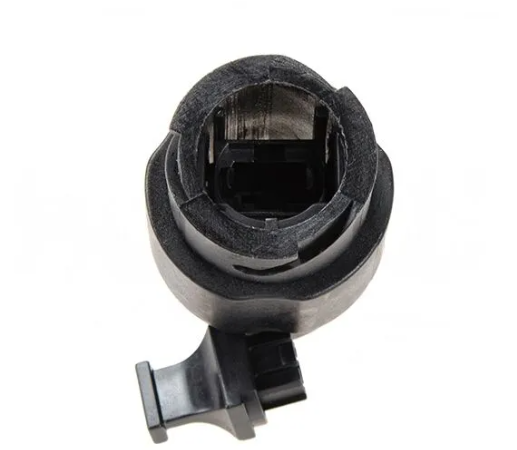

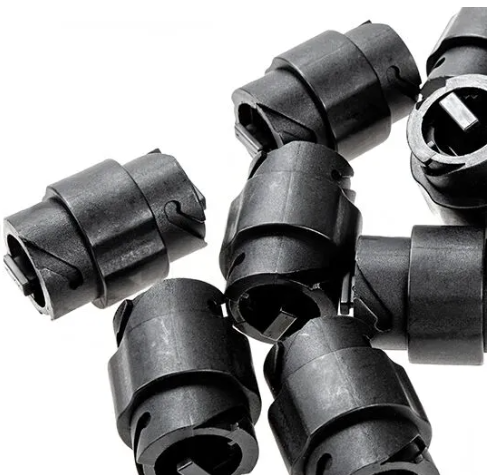

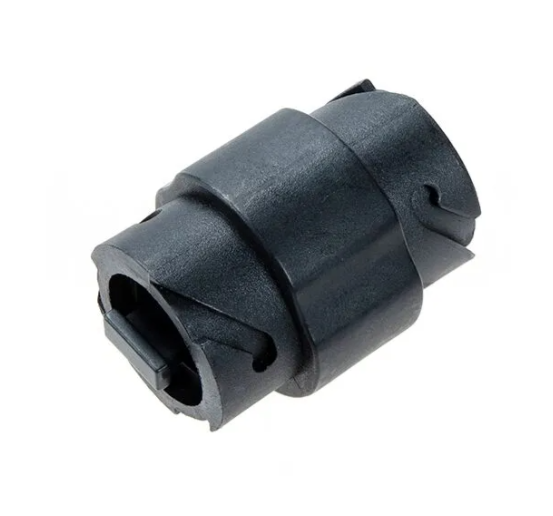

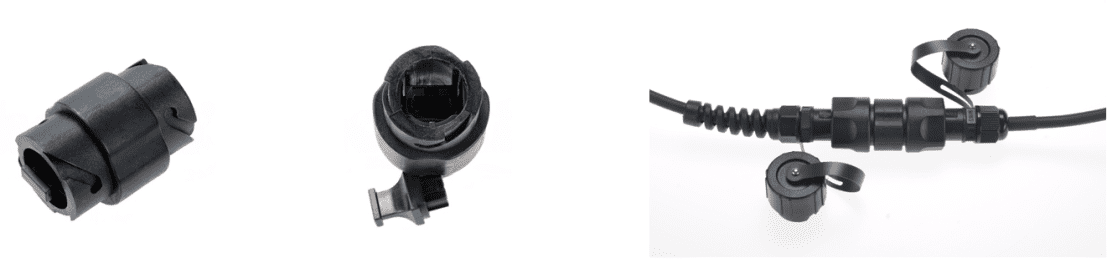

The ODVA MPO/MTP Waterproof Fiber Adapter for Relay Extension is a high-performance solution designed for outdoor and industrial relay connections. Its IP67-rated housing offers exceptional protection against water, dust, and other environmental factors, ensuring reliable MPO/MTP cable extension in telecom, FTTA, and industrial networks.
This adapter features a secure locking mechanism to maintain stable connections even in high-stress environments, making it ideal for relay points in remote radio head systems and outdoor network installations.
Engineering Suitability & Selection Boundaries
When This Product Is the Right Choice
Selected for outdoor FTTA relay extension points where MPO/MTP trunk cables must be extended under sealed and weather-exposed conditions.
Suitable for deployments requiring IP67-level waterproof protection, including outdoor cabinets, relay housings, and base station interconnect zones.
Commonly used in RRH to feeder extension scenarios where vibration resistance and mechanical locking are required.
Appropriate when the ODVA MPO interface standard is fully defined and consistent across both sides of the link.
When This Product May NOT Be Suitable
May not be suitable for environments with long-term water immersion or flooding risk, where IP68-rated sealed connectors are required.
Not recommended for applications involving frequent connect/disconnect cycles, as repeated handling may affect sealing reliability over time.
Unsuitable if MPO interface standard (ODVA vs standard MPO) is not clearly defined during system design.
Not ideal for indoor data center environments where standard MPO/MTP adapters provide sufficient performance without sealing complexity.
Common Selection Mistakes to Avoid
Treating this product as a standard MPO/MTP adapter, without considering its role as a sealed outdoor relay interface.
Selecting IP67 protection for locations exposed to standing water or submersion, rather than rain or splash environments.
Mixing ODVA MPO interfaces with non-ODVA MPO connectors, leading to incompatibility or sealing failure.
Overlooking threaded locking torque and maintenance accessibility in tower-mounted or elevated installations.
Engineering Suitability & Selection Boundaries
- When This Product Is the Right Choice
- Typically selected for outdoor FTTA relay/extension points where MPO/MTP trunk links must be extended through a sealed ODVA-style interface.
- Commonly used when the deployment environment involves weather exposure (rain/splash), dust, and vibration, and the interconnect must maintain stable mating under mechanical stress.
- Usually appropriate when the system design has a clearly defined ODVA MPO interface ecosystem on both sides of the link (connector family, mating geometry, and handling method kept consistent).
- Typically suitable when the installation is panel/bulkhead integrated so the adapter forms a controlled boundary between outdoor exposure and the protected internal space.
- When This Product May NOT Be Suitable
- May not be suitable for locations with standing water, flooding, or long-duration submersion risk, where sealing requirements typically exceed an IP67 class use case.
- Commonly less suitable for applications with high-frequency connect/disconnect routines in the field, since sealing surfaces and coupling engagement become more sensitive to handling variability over time.
- May not be appropriate when the project’s MPO interface is not standardized (ODVA vs non-ODVA expectations unclear), as this commonly leads to non-mating, sealing issues, or spare-part incompatibility.
- Typically not necessary for indoor, controlled environments where standard MPO/MTP interconnect methods already meet the site’s reliability needs without sealed-housing constraints.
- Common Selection Mistakes to Avoid
- Treating this as a standard indoor MPO/MTP coupler and overlooking that it is intended to function as a sealed outdoor relay interface with different handling and maintenance assumptions.
- Selecting IP67 protection for a location that behaves like a submersion zone, rather than a rain/splash exposure zone, which commonly causes early field failures unrelated to optical loss.
- Mixing ODVA MPO housings with non-matching MPO connector ecosystems across a project, which commonly creates commissioning delays and inconsistent sealing behavior.
- Overlooking coupling engagement, access clearance, and maintenance reach at tower-mounted/elevated relay points, which commonly increases rework during installation and later servicing.
Feature Details
- Superior Waterproof Design
- Fully sealed, IP67-rated construction protects against water, dust, and debris.
- Ideal for outdoor relay applications requiring consistent and reliable performance.
- High-Performance MPO/MTP Compatibility
- Compatible with MPO/MTP connectors in OM3/OM4 multimode and OS2 single-mode fiber types.
- Low insertion loss ensures minimal signal degradation during relay extension.
- Robust Construction
- Made from durable, UV-resistant polymer for long-term use in extreme environments.
- Resistant to corrosion, chemicals, and mechanical wear.
- Reliable Locking Mechanism
- Threaded design ensures secure, vibration-resistant connections in high-stress setups.
- Provides easy assembly and disassembly for maintenance and upgrades.
- Easy Integration
- Compact design allows simple installation in relay points, outdoor enclosures, or distribution frames.
- Quick connections save time during deployment.
Product Specifications
| Parameter | Specification |
| Adapter Type | MPO/MTP Waterproof Adapter for Relay Extension |
| IP Rating | IP67 |
| Connector Compatibility | MPO/MTP Multimode (OM3/OM4) and Single Mode (OS2) |
| Insertion Loss | ≤0.35dB |
| Return Loss | ≥60dB (Single Mode); ≥30dB (Multimode) |
| Material | UV-Resistant Polymer |
| Locking Mechanism | Threaded Lock |
| Operating Temperature | -40°C to +75°C |
| Storage Temperature | -40°C to +85°C |
Application Details
- Relay Points in FTTA Networks: Extends fiber connections between base stations and remote radio heads.
- Outdoor Enclosures: Protects fiber optic connections in cabinets and junction boxes.
- Industrial and Military Networks: Ensures reliable relay connectivity in harsh conditions like oil fields and defense setups.
- Telecom Systems: Enhances interconnectivity in outdoor LAN, WAN, and metro networks.
- Surveillance Systems: Maintains stable relay connections for outdoor CCTV and monitoring solutions.
FAQ
Q1: What protection level does this ODVA adapter offer?
It provides IP67-rated dustproof and waterproof protection, suitable for outdoor use.
Q2: Can this adapter connect standard MPO/MTP connectors?
Yes, it’s fully compatible with standard MPO/MTP connectors designed for ODVA housings.
Q3: What applications is it most commonly used for?
It’s mainly used for relay extensions in FTTA, base station, and outdoor telecom systems.
Q4: What materials are used for sealing?
It uses UV-resistant PC or PA housing with rubber sealing rings for long-term outdoor durability.
Q5: Is the adapter reusable after outdoor installation?
Yes, it can be disconnected and reconnected multiple times without loss of waterproof performance.
Q6: What temperature range can it withstand?
It operates from -40 °C to +85 °C, suitable for harsh outdoor environments.
Q7: Is it pre-tested for IP rating?
Yes, each unit is factory-tested to verify IP67 compliance before shipment.
