DESCRIPTION
SCAPC FieldShield Indoor/Outdoor Pushable Patch Cords

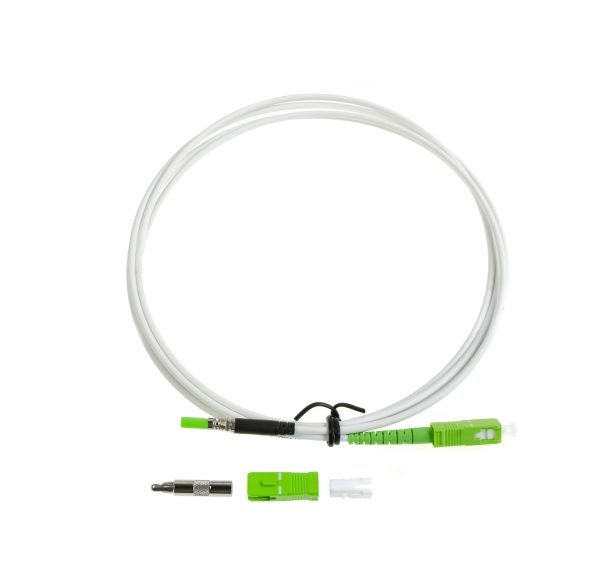

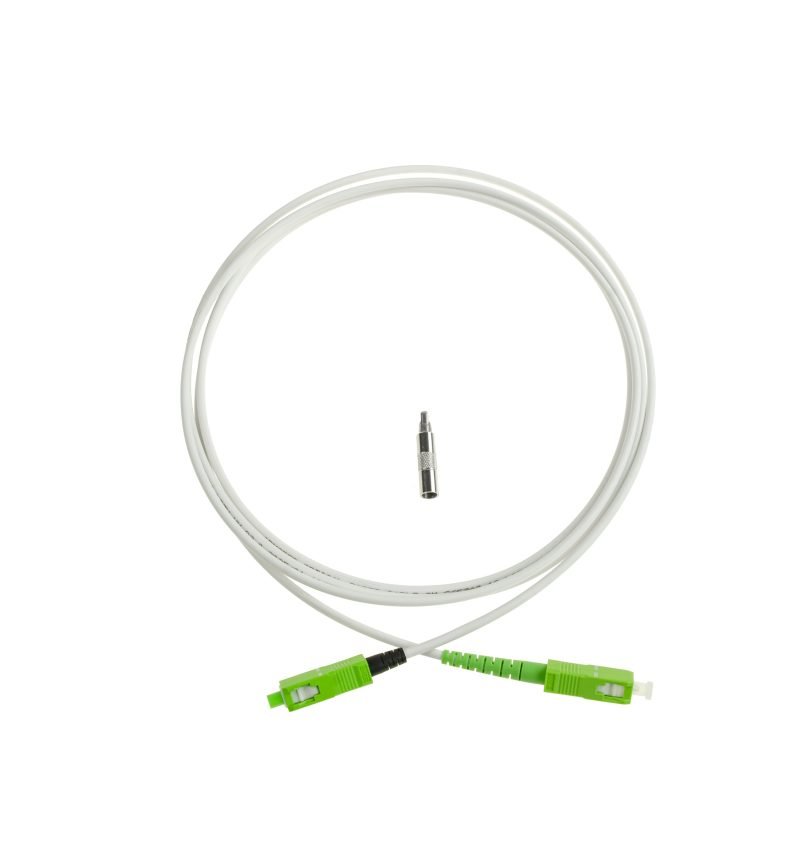

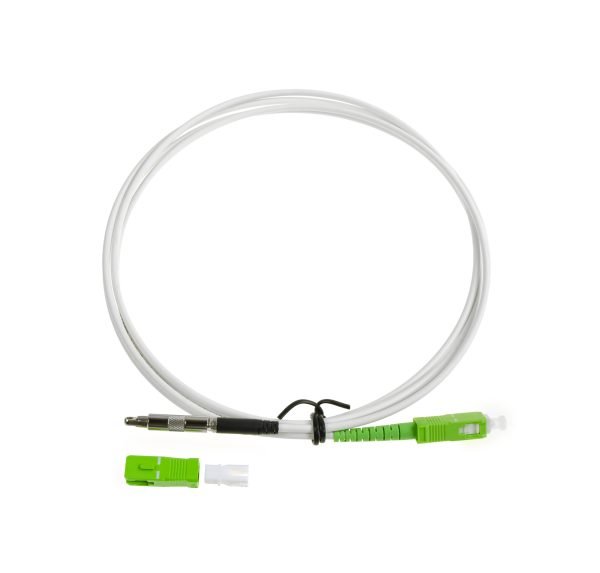

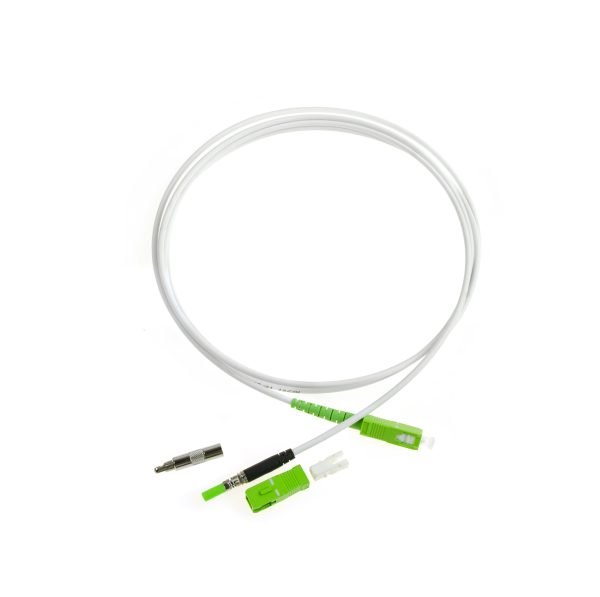

The SC/APC 3.0mm Indoor/Outdoor Pushable Patch Cord is an advanced fiber optic solution designed to simplify FTTH and FTTX deployments. Featuring a rugged, pre-terminated connector with pushable technology, this patch cord can be easily routed through microducts and small holes, reducing installation time and costs. With a robust, LSZH jacket, it’s suited for both indoor and outdoor environments. The assembly is tested to Telcordia GR-326 standards, ensuring reliable optical performance and high durability in diverse applications.
- Tool-Free, Snap-On Installation: Quick and secure installation with snap-on outer housing.
- Pushable Connector for Easy Routing: Enables installation through microducts and small holes, minimizing wall damage.
- Reduced Deployment Time: Eliminates the need for in-field splicing, reducing installation costs and complexity.
- Guaranteed Insertion and Return Loss: Ensures high-performance signal integrity.
- Rugged and Compliant: Built to Telcordia GR-326 standards and compliant with REACH & RoHS.
| Fiber Mode | Single mode |
|---|---|
| Fiber Count | 1 |
| Polish or Ferrule Interface Type | APC |
| Connector A | Pushable SC APC |
| Connector B | SC APC |
| Cable Lengths | customized |
| Jacket Materials | Indoor/outdoor LSZH Material |
| Outer Jacket Color | Black/White |
| Outer Jacket Diameter(mm) | 3.0mm or 2.0*5.0 Flat Drops |
| Fiber Type | G657A2 |
| Inner Cable Diameter | 0.9mm |
| Inner cable Color | Blue |
| Storage Temperature | -20°C to 60°C |
| Installation Temperature | -5°C to 50°C |
| Operating Temperature | -20°C to 60°C |
| Crush(N/100mm) | 1000 |
Deployment Notes
- Designed for push-through installation in FTTH and FTTX deployments.
- Enables routing through microducts and small wall openings without splicing.
- Suitable for both indoor and outdoor drops with LSZH jacket protection
- FTTH/FTTX Deployments: Ideal for indoor and outdoor drops in fiber-to-the-home and fiber-to-the-x installations.
- Single and Multi-Dwelling Units: Suitable for installation in both single homes and larger complexes.
- Rural Broadband and Campus Networks: Effective for extended campus and rural broadband applications.
- Distributed Antenna Systems (DAS) and FTTA: Reliable for data access services and fiber-to-the-antenna setups.
Q1: What are SC/APC FieldShield pushable patch cords?
They are ruggedized fiber optic patch cords with SC/APC connectors, designed to be pushed or pulled through microducts for fast and flexible indoor/outdoor fiber installations.
Q2: What makes FieldShield patch cords different from standard patch cords?
They feature a pushable, crush-resistant jacket that allows direct deployment through ducts without additional conduit, reducing installation time and cost.
Q3: Can these cords be used both indoors and outdoors?
Yes. The UV-resistant and moisture-protected design makes them suitable for outdoor environments, while the LSZH jacket option ensures safety indoors.
Q4: What connector performance do SC/APC versions provide?
SC/APC connectors offer low insertion loss and ≥60 dB return loss, minimizing back reflection in FTTH and telecom networks.
Q5: Are custom lengths available?
Yes. Cords can be supplied in exact lengths to fit your installation requirements, reducing excess slack and improving cable management.
Q6: How are FieldShield pushable patch cords tested?
Each cord is 100% factory tested for insertion loss and return loss, ensuring reliable optical performance in demanding conditions.
Q7: What are the typical applications of these patch cords?
They are widely used in FTTH deployments, MDU installations, cell site connections, and enterprise networks requiring quick plug-and-play fiber drops.
Q8: What is the standard delivery time?
Standard lengths are usually in stock for immediate shipment, while custom-ordered lengths typically require 5–10 working days.
