DESCRIPTION

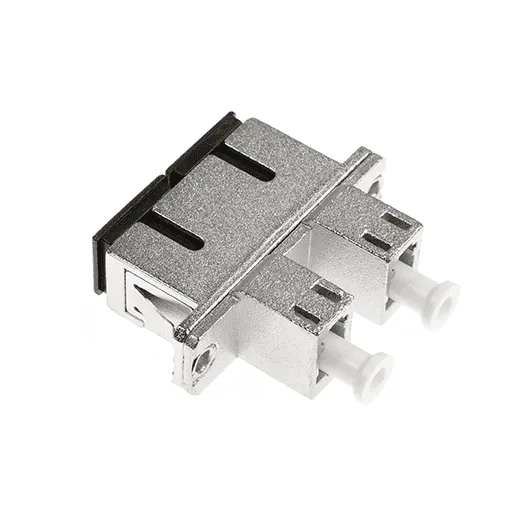

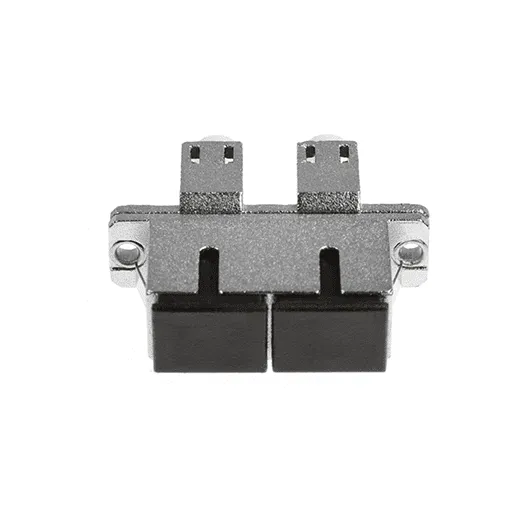

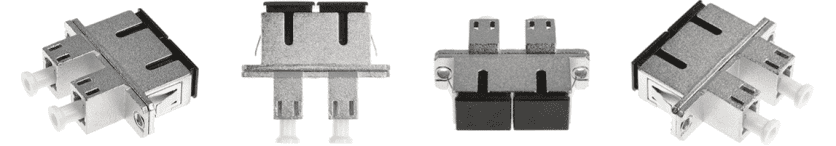

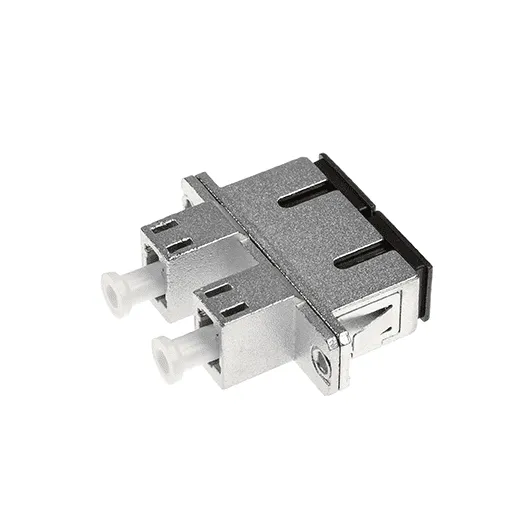

The SC to LC Duplex Metal Hybrid Fiber Adapter with Flange (Female to Female) is specially designed to interconnect SC duplex connectors with LC duplex connectors in a single adapter. With its metal housing and flange structure, this adapter provides enhanced durability and secure panel installation, making it suitable for demanding network environments.
Engineered for low-loss and high-stability performance, this adapter is widely used in telecom networks, FTTx projects, and data centers where both SC and LC connectors are deployed.
- Duplex Design: Supports two fibers for bidirectional transmission.
- Hybrid Connectivity: Provides direct mating between SC and LC connectors.
- Metal Housing: Strong, durable structure for high-reliability installations.
- Flange Mounting: Enables secure installation on panels and enclosures.
- High Precision: Zirconia ceramic alignment sleeve ensures accurate core-to-core connection.
- Reliable Signal: Low insertion loss, high return loss, ≥1000 mating cycles for long-term stability.
| Item | Value |
| Connector Type | SC Female to LC Female |
| Fiber Mode | Single mode |
| Fiber Counts | Duplex |
| Sleeve | Ceramic |
| Durability | ≤0.1dB |
| Insertion Loss | ≤0.2dB |
| Working Temperature | -25~70°C |
| Housing Material | Metal |
- Telecom and FTTx Networks: Hybrid connections between SC and LC duplex connectors.
- Data Centers: Flexible cross-connection in high-density fiber panels.
- LAN / WAN Systems: Ensures compatibility between different connector standards.
- CATV Applications: Stable signal transmission with low loss.
- Testing & Measurement: Used in laboratory and field test equipment requiring mixed interfaces.
- What connector types does this adapter support?
It connects SC female duplex connectors to LC female duplex connectors.
- Is it suitable for single mode and multimode fibers?
Yes, it is available for both single mode and multimode applications.
- What material is used for the housing?
The housing is metal with a flange for durability and stable mounting.
- How many fibers can it connect?
It supports two fibers (duplex type).
- What are the common applications?
Used in FTTx, data centers, telecom rooms, LAN/WAN systems, and test equipment.
