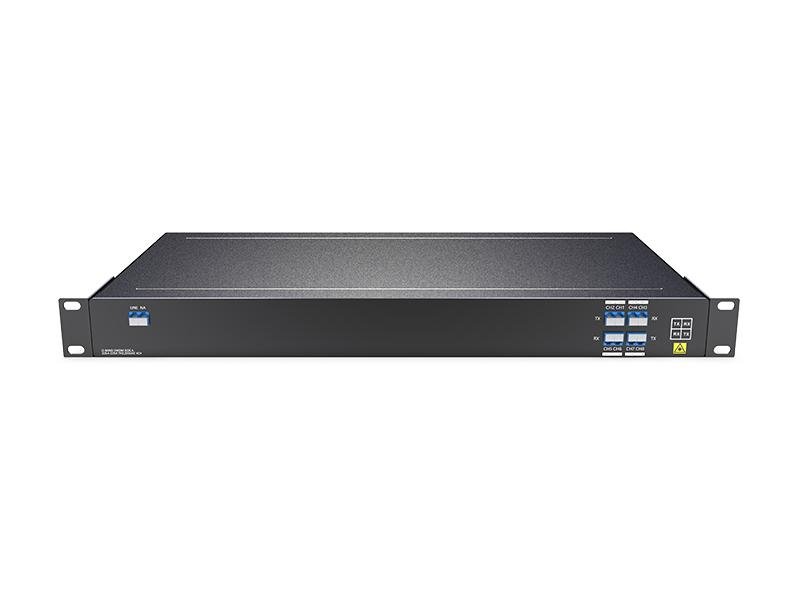

Single Fiber 4CH (8Waves) O-BAND DWDM MUX DEMUX, LC/UPC, 1U Rack
Product Panel
4CH O-BAND DWDM Single Fiber RX (1304.58/1306.85/1309.14/1311.43nm) TX ( 1305.72/1308.00/1310.28/1312.58nm) Side A
4CH O-BAND DWDM Single Fiber RX (1305.72/1308.00/1310.28/1312.58nm) TX ( 1304.58/1306.85/1309.14/1311.43nm) Side B
Line Link
4CH O-Band DWDM MUX DEMUX Single fiber transmission
4 Channels O-BAND DWDM MUX DEMUX, supports 4 channels difference business in one optical fiber for point-to-point transmission.
It works in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries.
Product Specification
| Work Wavelength | 1304.58/1305.72/1306.85/1308.00/ 1309.14/1310.28/1311.43/1312.58nm | Operating Wavelength | 1260~1360nm |
| Channel Passband | ±0.11nm | Technology | TFF (Thin Film Filter) |
| Insertion Loss | ≤ 2.4dB | Insertion Loss Temperature Sensitivity | ≤ 0.5dB |
| Return Loss | ≥ 45dB | Directivity | ≥ 45dB |
| Polarization Mode Dispersion | ≤ 0.2ps | Polarization Dependent Loss | ≤ 0.2dB |
| Channel Isolation | Adjacent ≥25dB Non-adjacent ≥ 35dB | Temperature | Operating -40 to 85°C Storage -40 to 85°C |
| Net Weight | 3.5KG | Dimensions (HxWxD) | 44*440*230mm |
Note: Specified with connectors.
Package Information
19” Inch 1U Rack
Order Information
| Product No. | Product description |
| OMD8-1U01-1310A | DWDM MUX DEMUX 4CH 8waves RX (1304.58/1306.85/1309.14/1311.43nm) TX ( 1305.72/1308.00/1310.28/1312.58nm) , Single fiber, LC/UPC , 1U Rack Side A |
| ODD8-1U01-1310B | DWDM MUX DEMUX 4CH 8waves RX (1305.72/1308.00/1310.28/1312.58nm) TX ( 1304.58/1306.85/1309.14/1311.43nm) , Sinlge fiber, LC/UPC , 1U Rack Side B |
Note: We Support Customized Design, please contact us by email.
