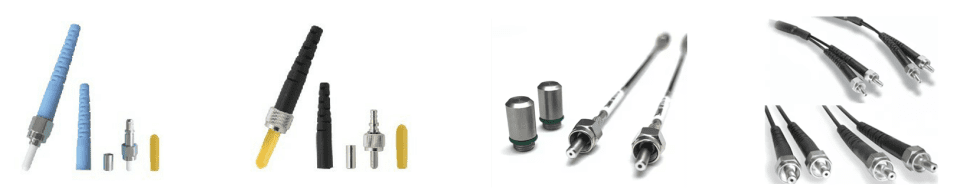

SMA 905 SMA 906 Metal Fiber Optic Connector

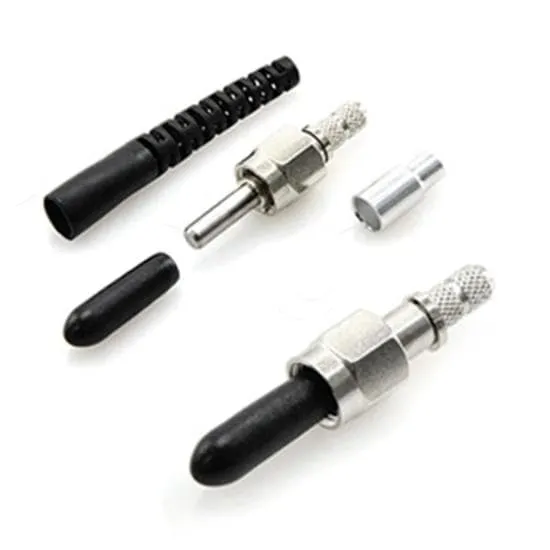

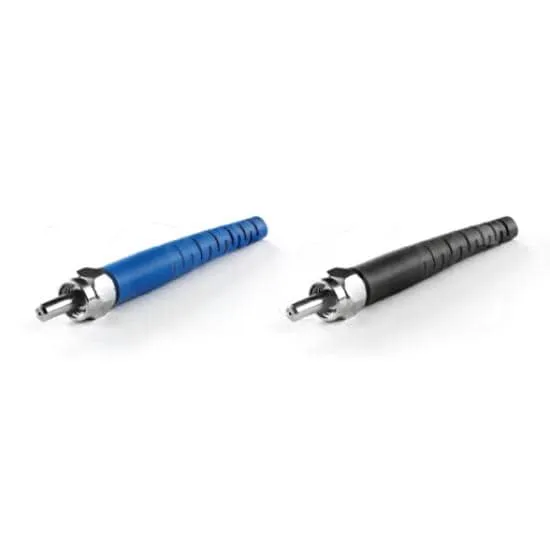

The SMA 905 and SMA 906 connectors are designed for demanding applications that require a robust and reliable connection. Built with stainless steel or nickel-plated brass housings, they provide superior performance in harsh environments like military operations, medical systems, and industrial automation.

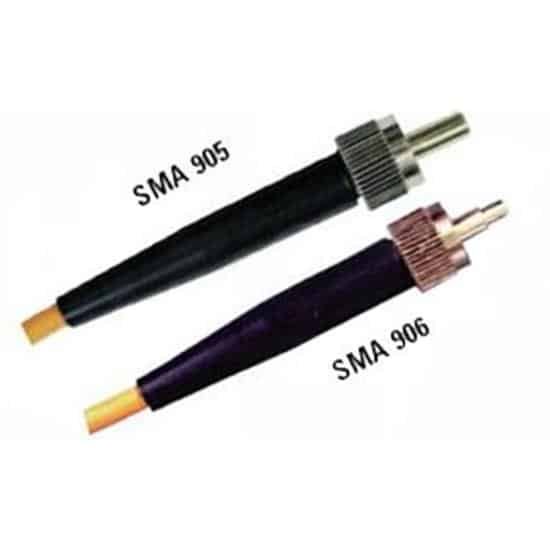

These connectors support both single-mode and multimode fibers and use a threaded coupling mechanism to ensure excellent vibration resistance. The SMA 905 features a straight body, while the SMA 906 includes a step-down design for added versatility.

Engineering Suitability & Selection Boundaries

1. When This Product Is the Right Choice

• Typically selected for high-power laser delivery, sensing/spectroscopy, and rugged field systems where a threaded SMA interface (905/906) is preferred for vibration resistance and secure retention.
• Commonly used when the project needs a mechanically robust connector built around metal housings (nickel-plated brass / stainless steel) for repeated handling in harsh environments.
• Usually appropriate when the build can standardize on SMA 905 (straight) or SMA 906 (step-down) based on the equipment interface and clearance requirements.
• Typically suitable when the fiber/termination plan is controlled (SM or MM, ferrule choice, polish style) to match the application’s performance and handling expectations.

2. When This Product May NOT Be Suitable

• May not be suitable when the system requires a precision-terminated telecom-style connector ecosystem (e.g., SC/LC/MPO) for patch panel interoperability, since SMA interfaces are typically used in different equipment and workflow contexts.
• Commonly unsuitable if the project cannot keep 905 vs 906 consistent across mating interfaces, as geometry mismatch commonly causes fitment and alignment variability.
• May not be appropriate where fast connect/disconnect without threading is critical, since the threaded coupling improves retention but slows handling in high-churn patching workflows.
• Typically not suitable if the application is highly sensitive to repeatable optical alignment but does not control polish/ferrule selection and cleaning discipline, as these dominate real performance more than housing material.

3. Common Selection Mistakes to Avoid

• Choosing “SMA” without locking down 905 vs 906 at the system level, which commonly leads to unexpected mating/clearance problems during integration.
• Mixing ferrule materials and polish styles across the same build without a defined rule, which commonly increases measurement variability in lab and field.
• Treating rugged housing as a substitute for process control; in repeated-use setups, cleanliness and consistent mating torque/handling typically determine stability over time.

Feature Details

• Durable Construction: SMA connectors are made from robust metallic materials, offering excellent resistance to mechanical stress and corrosion.
• Threaded Locking: Designed with a screw-on coupling mechanism to prevent accidental disconnection during field or lab use.
• Custom Options: SMA 905 and 906 connectors can be customized for different ferrule materials, fiber types, and polishing styles.
• High-Performance Optics: Ensures stable signal transmission with low insertion loss and high return loss, even under harsh operating conditions.
• Wide Compatibility: Suitable for standard fiber optic cables, high-power laser assemblies, and medical-grade equipment.

Product Specifications

Application Details

• Laser Systems: Ideal for connecting high-power laser sources to fiber optic systems in medical or industrial setups.
• Sensing & Spectroscopy: Used in analytical instruments and sensor-based systems where signal accuracy matters.
• Military & Aerospace: Perfect for field-deployed systems due to their robust mechanical design.
• Research & Development: Popular in labs and R&D facilities where connector durability is a priority.
• Custom Assemblies: Frequently integrated into specialized patch cords and fiber assemblies for OEM projects.

FAQ

1. What are SMA 905 and SMA 906 connectors used for?
They are used in high-power fiber optic systems, medical lasers, and industrial or military networks.

2. What is the difference between SMA 905 and SMA 906?
The SMA 905 has a straight body, while the SMA 906 features a step-down design for added mechanical flexibility.

3. Are these connectors suitable for single-mode and multimode fibers?
Yes, both SMA 905 and 906 are compatible with SM and MM fiber types.

4. What materials are available for the connector housing?
They are made from nickel-plated brass or stainless steel for maximum durability.

5. How are the connectors locked in place?
They use a threaded screw coupling mechanism to ensure vibration resistance and secure connections.

6. What is the typical insertion and return loss?
Insertion loss ≤0.3 dB; return loss ≥50 dB (UPC) or ≥60 dB (APC).

7. Can these connectors be customized?
Yes. HOLIGHT offers custom ferrule materials, fiber types, and polishing options.

8. What environments are SMA connectors best for?
They are ideal for military, aerospace, laboratory, and industrial environments requiring rugged performance.
