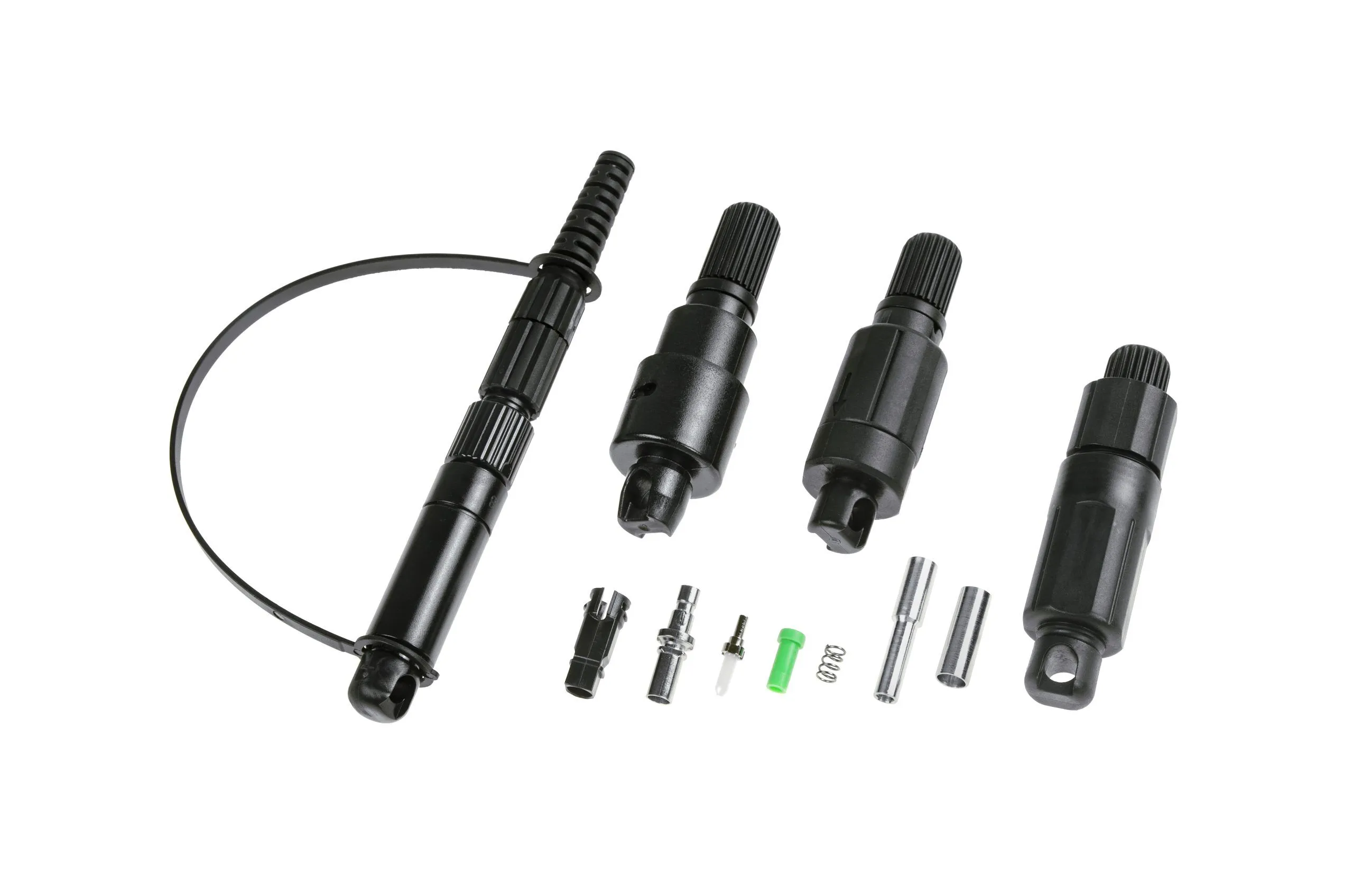

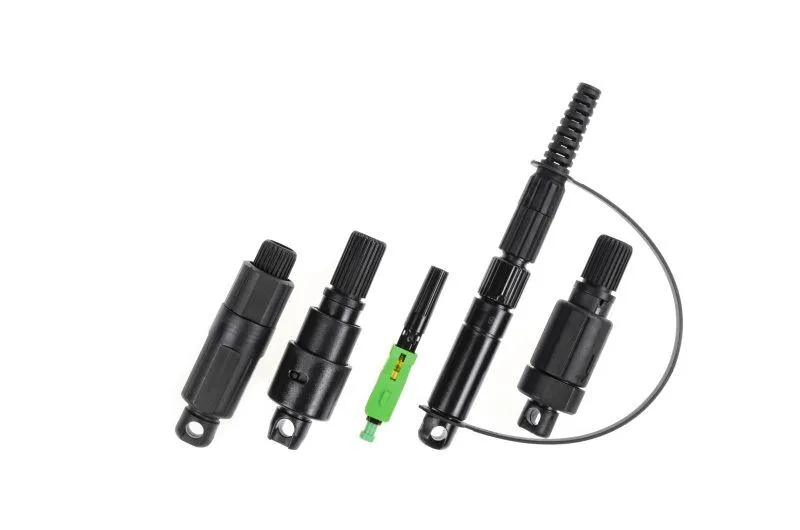

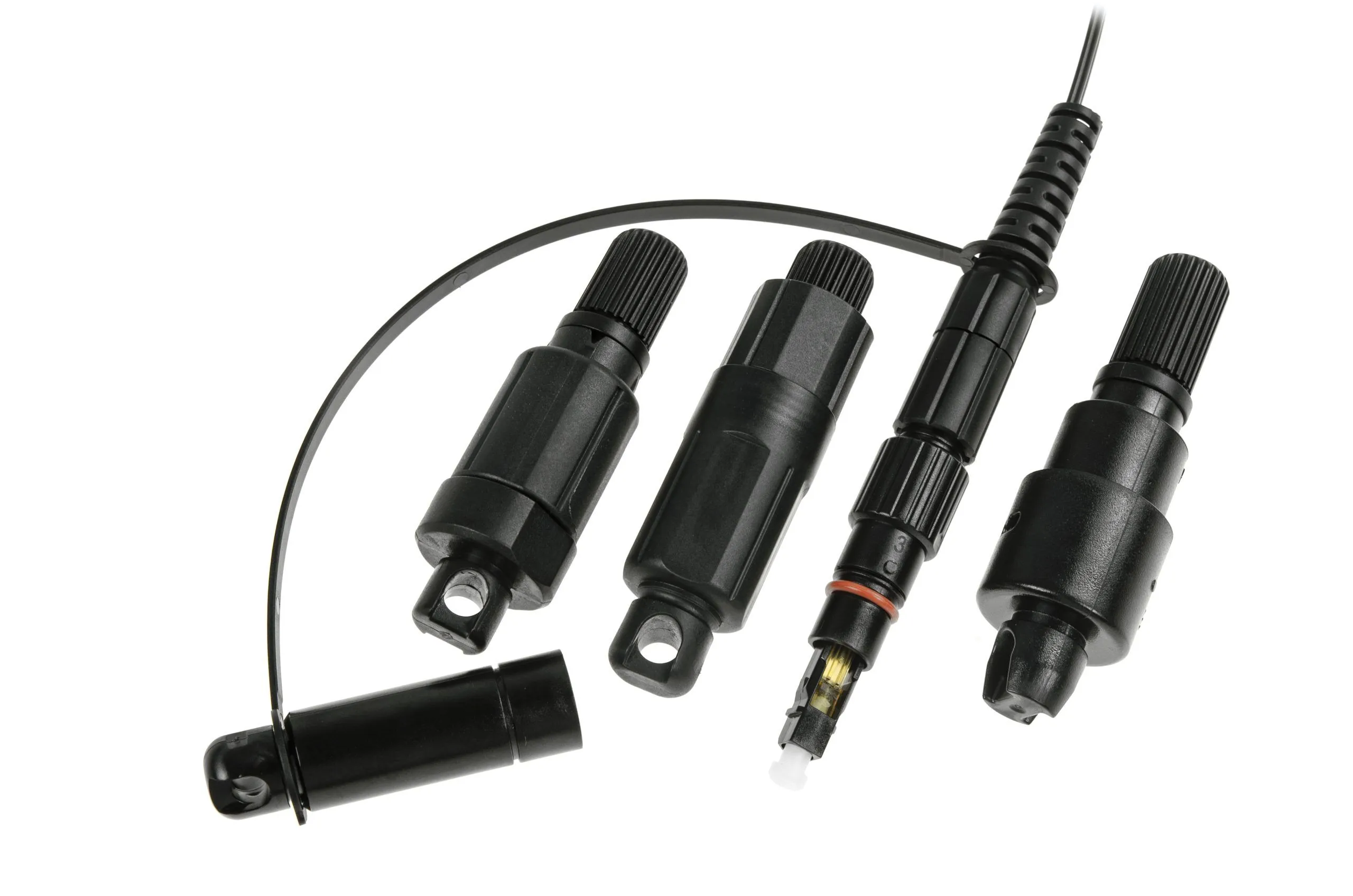

4-in-1 Waterproof Fiber Optic Connector – Compatible with Furukawa Corning Huawei ZTE

The 4-in-1 Waterproof Connector is a versatile, high-performance fiber optic solution designed for demanding outdoor environments. This connector integrates seamlessly with Furukawa SlimConnector SC, Huawei Conversion Connector, ZTE Conversion Connector, and Corning Conversion Connector systems. With an IP68 rating and a wide range of supported cable diameters, this connector ensures long-term reliability and superior optical performance in FTTX and industrial network applications.

.

Engineering Suitability & Selection Boundaries

1. When This Product Is the Right Choice

• Typically selected for outdoor FTTx / terminal box / cabinet handoffs where the connection must remain stable under IP68 sealing across rain, dust, and long-term weather cycling.
• Commonly used when the project must interoperate across multiple closure ecosystems and needs one interface that is compatible with Furukawa / Huawei / ZTE / Corning conversion systems to simplify spares and field logistics.
• Usually appropriate when the field workflow may alternate between standard SC/APC connectors and SC/APC fast connectors, and the site wants a consistent hardened-style sealing method.
• Typically suitable when the deployed cable types are within the supported range (<Ø5.0 mm round or 2×5 mm flat) and the installation can maintain correct cable fit for sealing and strain control.

2. When This Product May NOT Be Suitable

• May not be suitable when the site cannot clearly define which closure family interface is being used at each endpoint, since “compatible” systems still require correct matching of conversion geometry during installation.
• Commonly unsuitable if the cable OD/shape is outside the stated range, as seal compression and long-term waterproof reliability typically depend on correct cable fit.
• May not be appropriate when installers cannot consistently control O-ring/gasket seating and full coupling engagement, since sealing failures usually appear before optical loss trends are detected.
• Typically not suitable when the network segment is not standardized on SC/APC, as polish-ecosystem mismatch can create commissioning issues in reflection-sensitive links.

3. Common Selection Mistakes to Avoid

• Treating “4-in-1 compatibility” as universal interchangeability without confirming the specific conversion connector variant needed for the local closure ecosystem, which commonly leads to non-mating or poor sealing.
• Mixing standard SC/APC and fast-connector terminations without a consistent field procedure for cleaning/inspection, which commonly increases IL/RL variability over time.
• Selecting by IP68 rating alone while overlooking cable fit and strain management at the entry point, which typically determines real-field waterproof stability.

.

Feature Details

1. Dual Connector Support:
   • Compatible with standard SC/APC connectors for conventional installations.

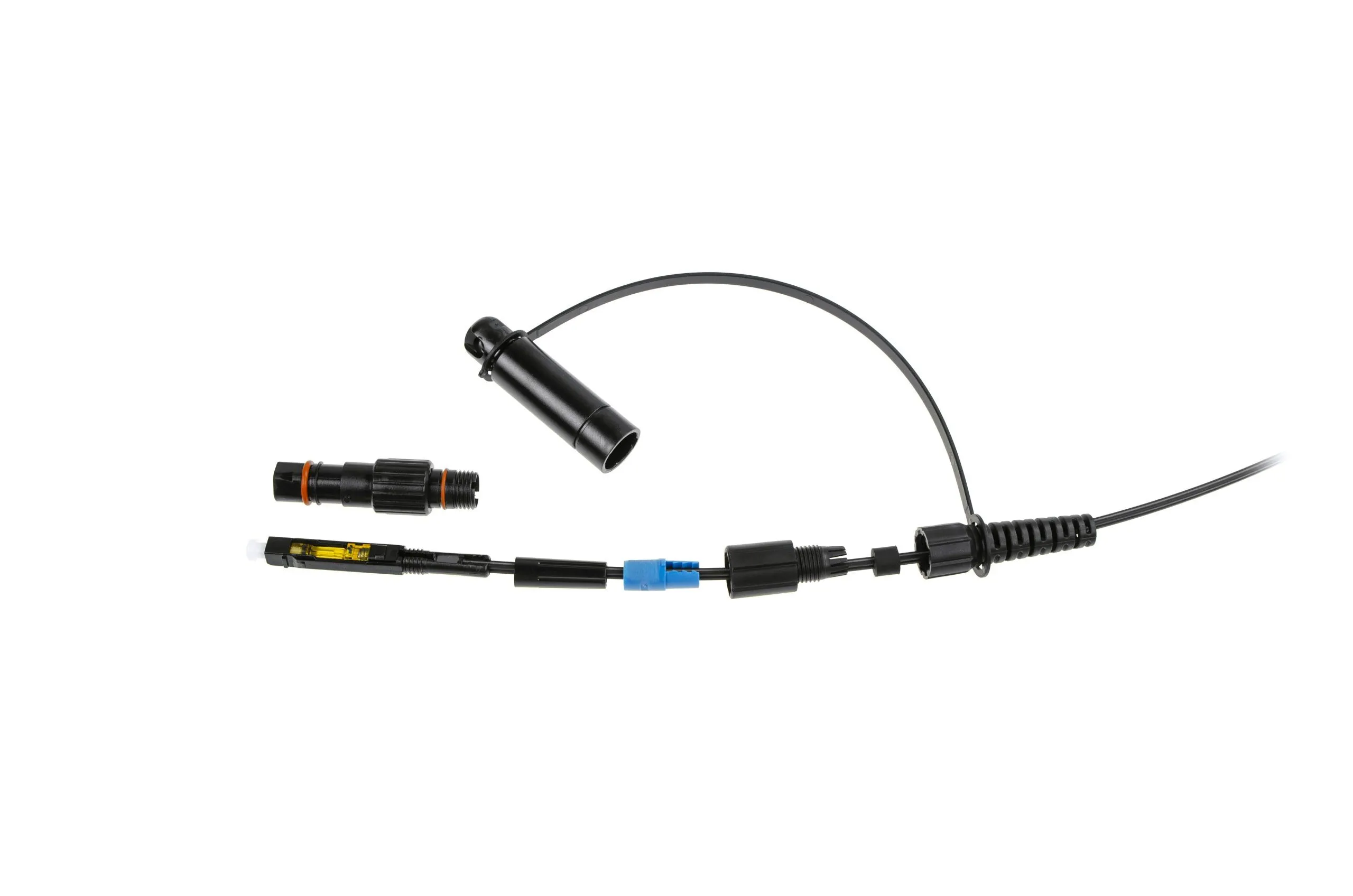

   • Supports SC/APC fast connectors, allowing quick field assembly without special tools.
2. Waterproof and Weatherproof Protection:
   • IP68-rated housing ensures excellent resistance to water, dust, and UV exposure, making it ideal for outdoor applications.
3. Universal System Compatibility:
   • Integrates seamlessly with Furukawa, Huawei, ZTE, and Corning closure systems for versatile deployment.
4. Flexible Cable Support:
   • Accommodates <Φ5.0mm round cables and 2×5mm flat cables for broad application scenarios.
5. Reliable Optical Performance:
   • Low insertion loss (<0.2dB @1310nm) and high return loss (>55dB) ensure superior signal quality.
6. Compact and Lightweight Structure:
7. The ergonomic design allows for easy handling and installation, even in confined or challenging outdoor setups.

Technical Specifications

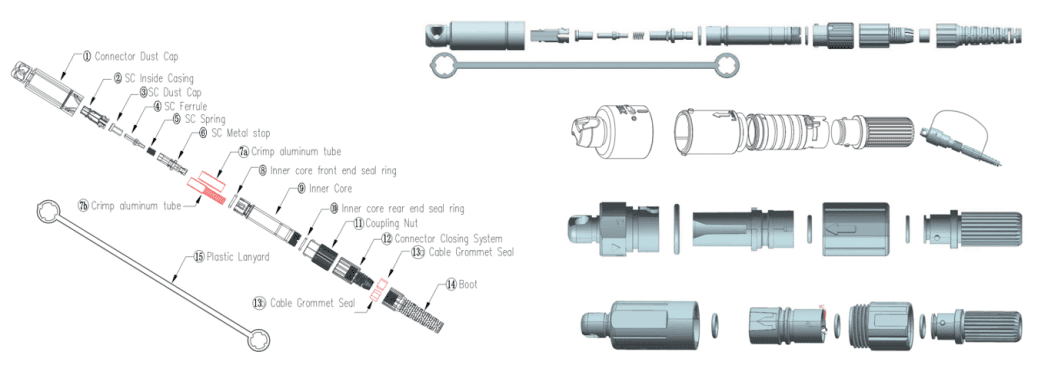

Product Variants

1. Furukawa SlimConnector SC Waterproof Connector:
   • Material: PEI, PA66, and PBT.
   • Compatible with Furukawa closures.
2. ZTE Conversion Connector SC Waterproof Connector:
   • Material: PEI and PBT.
   • Compatible with ZTE closures.
3. Huawei Conversion Connector:
   • Material: PBT and Rubber.
   • Compatible with Huawei closures.
4. Corning Conversion Connector:
   • Material: PBT and Rubber.
   • Compatible with Corning closures.

Application Details

• Telecommunications Networks: Ideal for securing connections in outdoor cabinets and terminal boxes.
• FTTA Installations: Ensures waterproof and durable connections for remote wireless base stations.
• Broadband Networks: Supports high-speed data transmission in outdoor environments.
• Industrial Deployments: Reliable in extreme weather, UV exposure, and corrosive conditions.

FAQ

Q1: What does “4-in-1” compatibility mean?
A1: It indicates compatibility with multiple mainstream closure systems, allowing one connector type to be used across different network infrastructures.

Q2: Is this connector suitable for outdoor installations?
A2: Yes. The IP68-rated housing provides excellent protection against water, dust, and environmental exposure.

Q3: What connector interface does it support?
A3: It supports SC/APC interfaces, including standard and fast connector configurations.

Q4: What cable types can be used with this connector?
A4: It supports round cables under Ø5.0 mm and flat FTTH drop cables sized 2 × 5 mm.

Q5: What optical performance can be expected?
A5: Typical insertion loss is <0.2 dB at 1310 nm and <0.3 dB at 1550 nm, with return loss >55 dB.

Q6: Can it operate in extreme temperatures?
A6: Yes. It operates reliably from -40°C to +75°C, suitable for diverse outdoor climates.

Q7: Is it resistant to UV and corrosion?
A7: Yes. The housing materials are designed to resist UV exposure, acids, and alkalis for long-term outdoor use.

Q8: How durable is the connector for repeated use?
A8: It is tested for at least 500 mating cycles with no significant optical performance degradation.
