DESCRIPTION

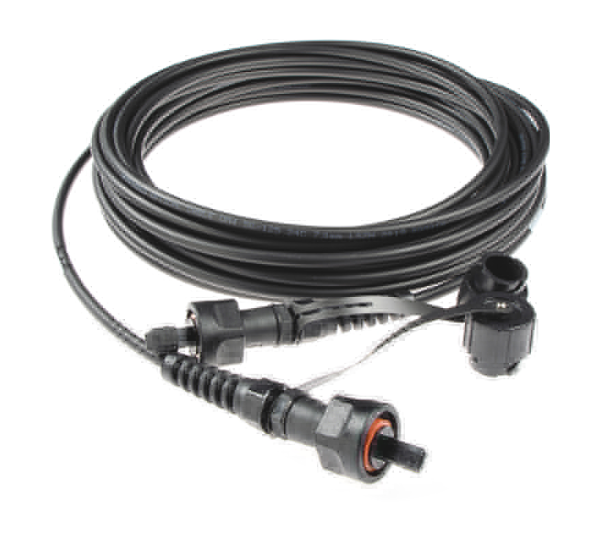

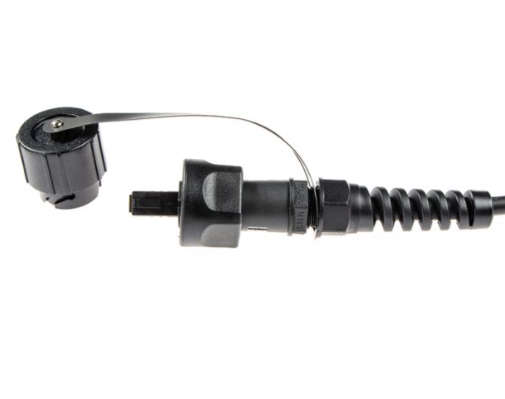

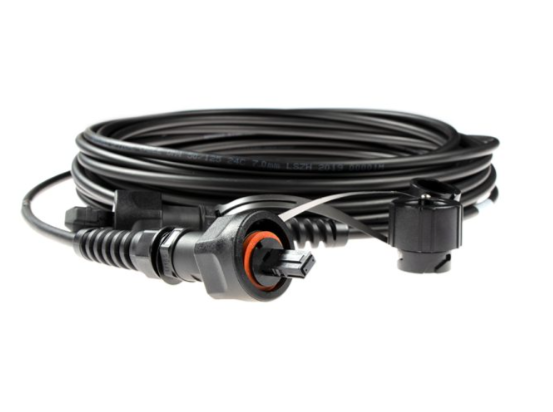

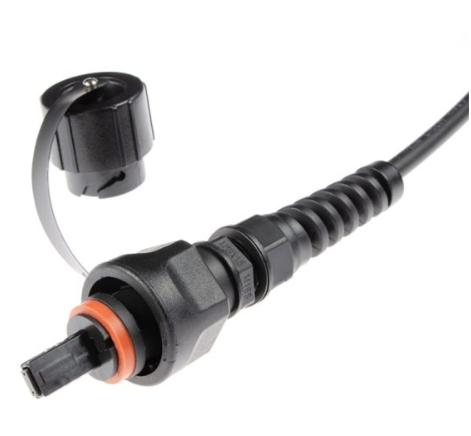

IP67 Waterproof ODVA MPO to ODVA MPO 7.0mm Fiber Optic Patch Cord
The IP67 Armoured 24 Fibers ODVA MPO/MTP φ7.0mm Waterproof Fiber Patch Cord is designed for high-density, high-performance outdoor fiber optic applications. Featuring an IP67-rated ODVA MPO/MTP connector, this patch cord is ideal for FTTA deployments, base stations, and industrial setups. The rugged design ensures resistance to extreme temperatures, water, and dust, while supporting fast coupling and secure connections in remote and harsh environments.
Standard configuration is 24 fibers with 7.0mm jacket outer diameter. Other configurations can be supplied upon request. With LSZH, PVC, or OFNP jacket materials, this patch cord provides reliable connectivity for telecommunications, horizontal cabling, and industrial applications.
Engineering Suitability & Selection Boundaries
When This Product Is the Right Choice
Typically selected for FTTA deployments requiring high-fiber-count outdoor interconnection, where multiple radio units or sectors are aggregated through a single MPO/MTP interface.
Commonly used in base station environments where connectors are exposed to weather, dust, vibration, and temperature variation, making sealed ODVA MPO interfaces necessary.
Suitable for projects where pre-terminated high-density fiber assemblies reduce field splicing complexity and deployment time.
Used when armored cable construction is required to withstand mechanical stress during outdoor routing, vertical runs, or shared infrastructure pathways.
Appropriate in architectures that rely on parallel optical transmission rather than duplex point-to-point links.
When This Product May NOT Be Suitable
May not be appropriate for low-fiber-count FTTA links where duplex LC-based solutions provide sufficient capacity with simpler handling.
Less suitable for indoor telecom rooms or data centers, where ODVA-sealed MPO connectors offer no additional functional benefit.
Not typically selected for deployments requiring frequent re-patching or rapid port reconfiguration, due to MPO interface handling characteristics.
May be unsuitable where future expansion is uncertain, and modular trunk-and-cassette architectures would provide greater flexibility.
Common Selection Mistakes to Avoid
Selecting a 24-fiber MPO assembly without confirming actual parallel-optics requirements, resulting in unused fibers and inefficient cost allocation.
Treating an ODVA MPO outdoor cable as a standard indoor MPO trunk, without accounting for installation weight, stiffness, and routing constraints.
Overlooking polarity management and gender compatibility when integrating into existing MPO/MTP systems.
Assuming IP67 protection is required across the entire link, rather than identifying which connection points are truly exposed to the environment.
Feature Details
- Rugged IP67 Protection
- Waterproof and dustproof design ensures excellent performance in outdoor and harsh conditions.
- Suitable for extreme temperatures ranging from -45°C to +85°C.
- High-Performance Optical Characteristics
- Low insertion loss (≤0.35dB for MPO/MTP) guarantees efficient data transmission.
- High return loss (≥30dB) reduces signal degradation for stable connections.
- Flexible Fiber and Cable Options
- Supports 4, 8, 12, or 24 fibers for customized network needs.
- Compatible with 4.8mm, 5.0mm, and 7.0mm cable sizes for various installation environments.
- Customizable Design
- Tailored options for fiber type, connector configuration, length, color, and packaging.
- Jacket materials available in LSZH, PVC, or OFNP for different regulatory and environmental requirements.
Product Specifications
| Parameter | Specification |
| Connector Type | ODVA MPO to ODVA MPO |
| Fiber Mode | 50/125μm OM4 |
| Polish | UPC to UPC |
| Fiber Type | 24 Fibers |
| Jacket Material | LSZH / PVC / OFNP |
| Jacket Outer Diameter | 7.0mm |
| Insertion Loss (MPO/MTP) | ≤0.75dB (Standard); ≤0.35dB (Elite) |
| Return Loss | ≥30dB |
| Wavelength | 850/1300nm |
| Operating Temperature | -40°C to +75°C |
| Storage Temperature | -45°C to +85°C |
Application Details
- FTTA Deployments: Provides high-performance connectivity for remote radio head setups in telecom networks.
- Industrial Environments: Delivers durable fiber optic connections for oil fields, mines, and outdoor manufacturing setups.
- Horizontal and Vertical Cabling: Ensures reliable performance in structured outdoor cabling systems.
- Harsh Conditions: Withstands extreme environmental factors, including high moisture and wide temperature fluctuations.
FAQ
Q1: What makes this patch cord waterproof?
It features ODVA MPO/MTP connectors with an IP67 rating, ensuring protection against dust and water ingress.
Q2: What is the fiber count supported?
This model supports 24 fibers, suitable for high-density outdoor and FTTA deployments.
Q3: Is the cable suitable for harsh environments?
Yes. The armoured design provides resistance to crushing, extreme temperatures, and mechanical stress.
Q4: What jacket materials are available?
Options include LSZH for indoor safety, PVC for general use, and OFNP for plenum-rated installations.
Q5: Can the patch cord length be customized?
Yes. Length, fiber type, connector configuration, and jacket color can be tailored to project requirements.
Q6: What are the main applications?
It is widely used in FTTA, base stations, telecom towers, and outdoor industrial networks.
Q7: How is optical performance tested?
Each assembly undergoes insertion loss and return loss testing to guarantee consistent field performance.
Q8: What is the typical delivery time?
Standard configurations are available quickly, while customized versions usually take 5–10 working days.
