Mini SC Waterproof Field-Assembly Fiber Optic Connector – FTTH Huawei Compatible

The Huawei Compatible Mini SC Waterproof Field Assembly Reinforced FTTH Connector is a robust, field-installable solution designed to support secure, high-performance single-fiber SC connections in outdoor environments. Engineered for flexibility and durability, it features an IP68-rated sealed design, a bayonet-style latch, and a push-pull insertion mechanism for tool-free, quick installation. Compatible with multiple cable types and systems, this connector ensures stable performance in fiber optic networks subjected to extreme environmental conditions. Its compact, hardened design minimizes splicing, reduces maintenance needs, and guarantees reliable connections for years to come.

Engineering Suitability & Selection Boundaries

1. When This Product Is the Right Choice

• Typically selected for outdoor FTTH drop terminations and terminal-box handoffs where the connector must sustain IP68 sealing and repeated environmental cycling.
• Commonly used when technicians need a field-assembly hardened SC/APC solution with push-pull insertion + bayonet latch for quick blind-mating without tools.
• Usually appropriate when the deployment must support multiple cable formats and wants to simplify field inventory, including flat drop cables (2.0×1.6 / 2.0×3.0 / 2.0×5.0) and round cables (2.0 / 3.0 / 5.0 mm).
• Typically suitable when the local ecosystem is aligned to a Huawei-compatible / hardened SC/APC interface plan for MST/terminal systems and outdoor access segments.

2. When This Product May NOT Be Suitable

• May not be suitable when the site is standardized on a different hardened connector family and the “Huawei-compatible” interface is not the one used at the endpoint, as ecosystem mismatch commonly causes non-mating and spare issues.
• Commonly unsuitable if the actual cable OD/shape does not match the supported sizes, since seal compression and tension performance depend on correct cable fit for the clamp and gasket system.
• May not be appropriate when the field process cannot reliably control assembly quality (strip/cleave accuracy, insertion depth, sealing-surface cleanliness), since mechanical field-assembly performance is more technique-sensitive than factory termination.
• Typically not suitable where the enclosure/route creates unmanaged snag, abrasion, or bending stress at the connector entry, as mechanical disturbance can dominate long-term stability in outdoor drops.

3. Common Selection Mistakes to Avoid

• Selecting by IP68 rating alone without confirming the exact endpoint ecosystem (Huawei-compatible hardened SC/APC vs other families), which commonly leads to commissioning delays.
• Using one build procedure across mixed cable types without verifying clamp parts and strain relief configuration for each OD/shape, which commonly reduces pull strength and sealing reliability.
• Treating “fast connector” as plug-and-play while neglecting cleave quality and cleaning, which commonly drives insertion-loss variation and rework during acceptance testing.

Key Features

• Quick Field Assembly: Designed for simple and fast field assembly, requiring no specialized tools.
• High Waterproof Rating (IP68): Provides IP68-rated protection, ensuring waterproof, dustproof, and corrosion-resistant performance, ideal for outdoor use.
• Compatibility and Flexibility: Compatible with ESC250D, Sumitomo, Fujikura, Furukawa connectors, and suitable for use with Telefónica/Personal/Claro systems.
• Durable Material: Constructed from PEI material, resistant to UV rays, acid, and alkali, for a 20-year outdoor lifespan.

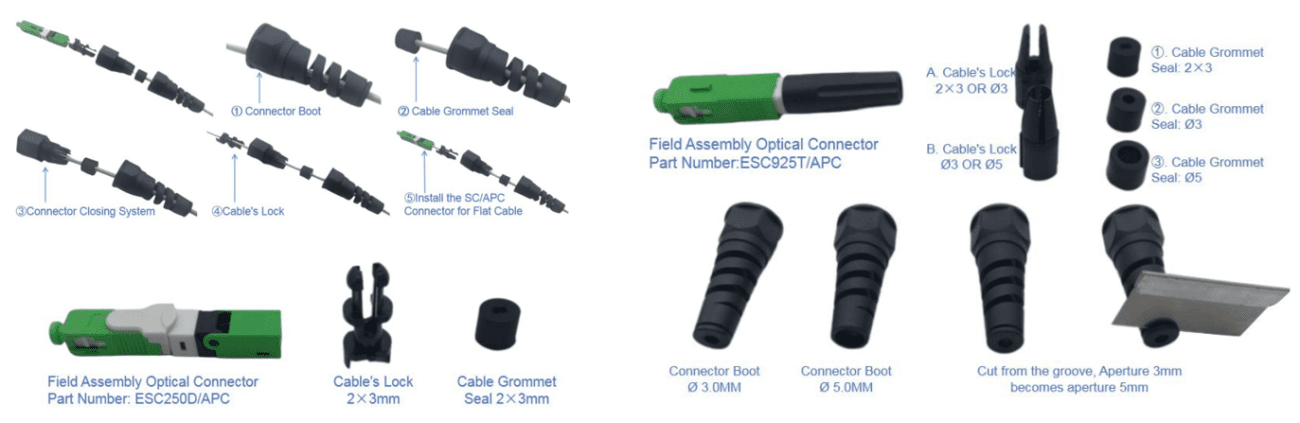

• Wide Cable Compatibility: Supports various cable types, including FTTH drop cable (2.0 x 1.6 mm, 2.0 x 3.0 mm, 2.0 x 5.0 mm) and round cables (5.0 mm, 3.0 mm, 2.0 mm).
• High Mechanical Strength: Withstands 1000 insertion cycles and supports cable tension up to 70N, making it highly durable.

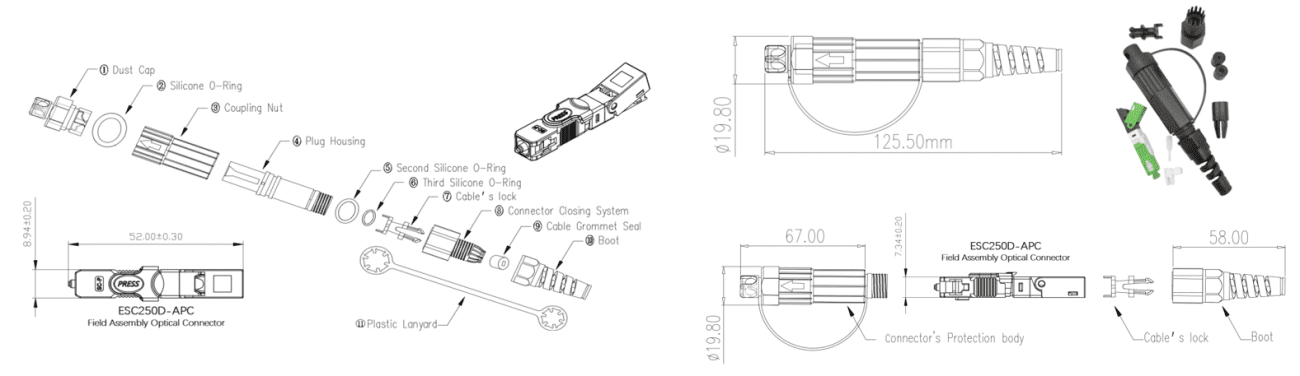

• Secure Mating and Protection: The unique inside cover protects the ferrule from scratches, and the connector’s fool-proofing design ensures a secure, blind-mate connection.

Technical Specifications

Applications

• FTTH and FTTA Deployments: Provides secure, long-lasting connections for outdoor fiber optic networks.
• Telecom Networks: Used in remote wireless base stations and 5G towers.
• Industrial Communication: Performs reliably in oilfields, mining operations, and other extreme environments.
• Surveillance Systems: Ensures high-speed, stable connections for CCTV and video monitoring setups.

Installation and Maintenance

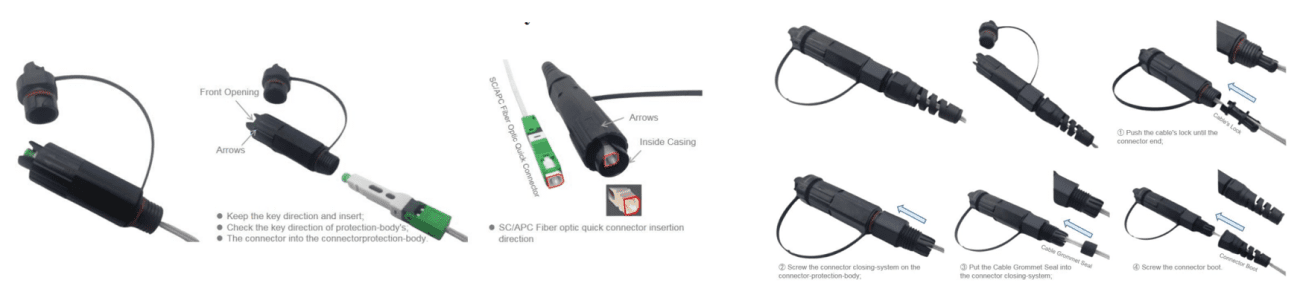

• Field-Friendly Design: The push-pull insertion and bayonet-style latch ensure secure, tool-free assembly in the field.
• Simple Maintenance: Durable construction minimizes maintenance needs, even in harsh environments, ensuring long-term performance.
• Protective Design: Inside cover shields ferrule end face from damage, maintaining optimal signal clarity.

FAQ

Q1: Is this connector suitable for outdoor FTTH installations?
Yes. The IP68-rated sealed design makes it suitable for outdoor FTTH drop connections and terminal boxes.

Q2: Does installation require special tools or polishing?
No. It is a field-assembly fast connector that does not require epoxy, curing, or polishing tools.

Q3: What cable types are supported?
It supports flat FTTH drop cables (2.0×1.6 mm, 2.0×3.0 mm, 2.0×5.0 mm) and round cables (2.0 mm, 3.0 mm, 5.0 mm).

Q4: What optical performance can be expected?
Typical insertion loss is ≤0.50 dB, with return loss ≥55 dB for SC/APC connections.

Q5: Is this connector compatible with telecom base station equipment?
Yes. It is widely used in FTTA and 5G base station deployments requiring hardened SC/APC interfaces.

Q6: How durable is the connector for repeated use?
It supports at least 1000 mating cycles and withstands high cable tension and drop impact.

Q7: What environments is it designed for?
It is suitable for outdoor telecom networks, industrial sites, surveillance systems, and other harsh environments.

Q8: Are OEM or customized options available?
Yes. Custom labeling, packaging, and configuration options are available for project and bulk requirements.
